Vertical red winemaking tanks

Streamline your red wine vinification with advanced vertical tanks that optimize oxygen management, gentle cap crumbling, and precise temperature control, ensuring the perfect balance of tradition and innovation for wines destined for immediate enjoyment or long-term aging.

Facilitates Controlled Red Wine Vinification

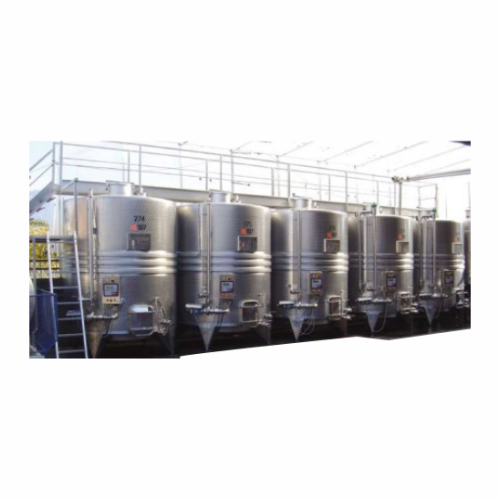

The SELECOMPACT from Gimar is an innovative vertical red winemaking tank designed for sophisticated vinification processes. These tanks utilize an automated cascading pumping system to maintain optimal contact between grape skins and juice, critical for red wine flavor extraction. Key technologies include OXYCONTROL and OXYPLUS for precise oxygen management, THERMOSOFT for temperature control, and DENSIMATIC for density monitoring. The system’s versatility supports a wide array of red wine types, including Cabernet Sauvignon and Pinot Noir, while ensuring consistent quality for young and aging wines. Capacities range from 23 to 332 hectoliters, allowing adaptable scaling for diverse winery operations. The control panel, featuring a DIGIWINE electronic board, integrates seamlessly into existing setups with programmable remote options through VINISUPERVISION. Maintenance is simplified with a mechanical extractor and optional screw conveyors for efficient solid removal, enhancing both performance and ease-of-use in demanding winemaking environments.

Benefits

  • Enhances wine quality through precise control of oxygen, temperature, and density.
  • Increases efficiency by automating vinification processes, reducing manual labor.
  • Allows for flexible production, accommodating both young and aging wines.
  • Minimizes waste and speeds up cleaning with integrated solid extraction systems.
  • Seamlessly integrates into existing production lines with remote monitoring capabilities.

General


Applications
Wines for aging,Red wines,Fruity wines
End products
Cabernet sauvignon,Grenache,Syrah,Sangiovese,Nebbiolo,Barbera,Pinot noir,Tempranillo,Malbec,Merlot,Zinfandel,Dolcetto
Steps before
Grape harvesting,Crushing,Destemming,Sorting
Steps after
Aging,Bottling,Labeling,Storage
Input ingredients
grape marc,grape skins,macerating grape mass,fermenting must
Output ingredients
red wine,wines suitable for aging,fruity wines
Market info

Technical Specifications


Size
23 to 332 hl
Automation
Fully automated control and management system
Temperature Control
THERMOSOFT system for temperature adjustment
Oxygen Management
OXYCONTROL and OXYPLUS devices
Density Monitoring
DENSIMATIC system
Remixing Cycles
Managed by ELIMATIC system
Residual Solids Management
Mechanical extractor with screw conveyors
Remote Control
Ready for use with VINISUPERVISION programmable remote control
Wetting and Crumbling
Automated cascading pumping over action

Operating Characteristics


Working Mechanism
Automated cascading pumping,temperature and oxygen control
Automation Level
Fully automated with programmable remote control
Temperature Control
THERMOSOFT system for avoiding thermal shocks
Oxygen Management
OXYCONTROL and OXYPLUS devices
Density Monitoring
DENSIMATIC system
Control Interface
Ad hoc control panel and DIGIWINE electronic board

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


Patented Technology
Yes
CE Marking
Likely
FDA Materials
Possibly for winery equipment
EHEDG Certification
Possibly applicable

Physical Characteristics


Compact footprint
Yes
Tank size
23 up to 332 hl
Tank shape
Vertical
Feed/discharge method
Mechanical extractor with screw conveyors
Control panel type
Ad hoc with DIGIWINE electronic board

Custom Options


Control panel type
Ad hoc control panel with DIGIWINE electronic board
Remote Control Integration
VINISUPERVISION programmable remote control
