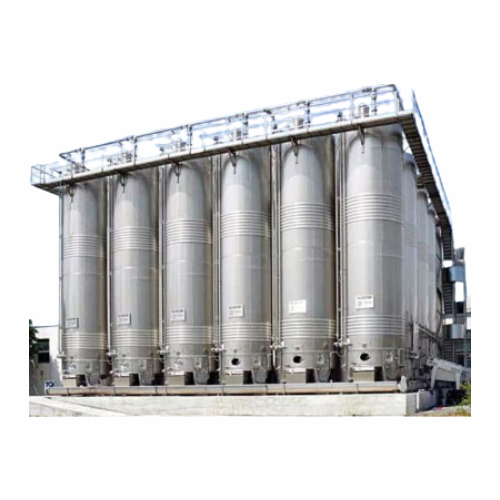

Vertical red wine tank

Optimize red wine production with a system that seamlessly integrates traditional winemaking techniques and advanced automation, ensuring precise control over each phase—from fermentation to aging—for consistently high-quality results.

Controls Fermentation and Aging of Red Wines

The Vertical Red Winemaking Tanks SELECTOR by Della Toffola Group offers a sophisticated solution for winemakers seeking precise vinification control. This system uniquely combines patented enological technologies to handle every step from pumping over and delestage to oxygen and temperature regulation, ensuring optimal conditions for red wine fermentation and maturation. With applications spanning from producing young, fruity wines to wines structured for aging like Chianti and Cabernet Sauvignon, it incorporates automated features such as the MULTISTEEP system for uniform pomace moistening and break-up, and OXYCONTROL for oxygen management. The tanks are available in varied sizes from 80 to 1500 hl, designed for easy integration into existing lines with DIGIWINe control panel and VINISUPERVISION remote control capabilities. Enhanced by automatic cleaning solutions like CLEANMATIC, these tanks deliver reliability in both operational and sanitary maintenance.

Benefits

  • Enhances wine quality by ensuring precise control over fermentation and aging.
  • Balances tradition and innovation, allowing winemakers to utilize established techniques with advanced technology.
  • Increases operational efficiency with automated processes that reduce manual intervention.
  • Ensures consistent production standards through comprehensive monitoring of all vinification parameters.
  • Simplifies maintenance and cleaning, reducing downtime with integrated systems like CLEANMATIC.

General


Applications
Young wines,Wines for aging,Red wines,Fruity wines
End products
Cabernet sauvignon,Sangiovese,Chianti,Beaujolais nouveau,Zinfandel,Pinot noir,Merlot,Barbera d'asti
Steps before
Grape Harvesting,Crushing,Destemming
Steps after
Aging,Bottling,Labeling,Packaging
Input ingredients
grape must,pomace cap,oxygen,skins
Output ingredients
young and fruity wines,wines structured for aging,lees
Market info

Technical Specifications


Capacity
80 to 1500 hl
Automation
Fully Automated
Temperature Control
THERMOSOFT
Oxygen Control
OXYCONTROL and OXYPLUS
Density Monitoring
DENSIMATIC
Cleaning System
CLEANMATIC
Control Panel
DIGIWINe with VINISUPERVISION
Pumping System
MULTISTEEP
Aging System
ELIMATIC

Operating Characteristics


Automation level
Completely automated
Batch vs. continuous operation
Batch
CIP/SIP
Built-in washing system (CLEANMATIC)
Cleaning method
Mechanical hand and built-in washing system
Oxygen control
OXYCONTROL and OXYPLUS
Temperature control
THERMOSOFT function
Pump-over method
MULTISTEEP system
Remote control capabilities
VINISUPERVISION remote control

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tank size range
80 to 1500 hl
Discharge method
Mechanical hand
Control panel type
DIGIWINe electronic board

Custom Options


Control panel type
DIGIWINe electronic board
Integration possibilities
VINISUPERVISION remote control compatibility
Size options
80 to 1500 hl
