Vertical pilot plant centrifuge for chemical industry

Optimize your lab and pilot plant operations with this mobile centrifuge, designed for versatile testing and precise scaling of processes from filtration to sedimentation.

Facilitates Centrifuging, Filtration, Sedimentation, and Classifying

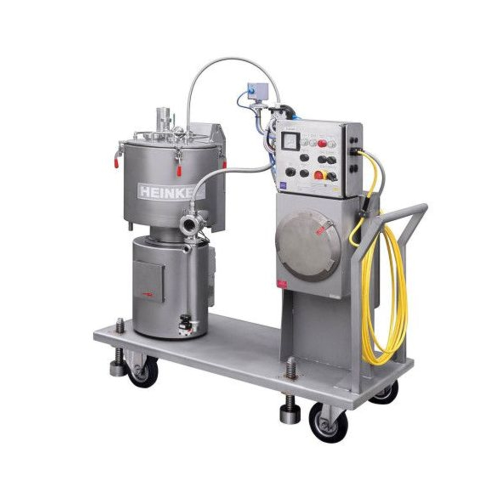

The Vertical Pilot Plant Centrifuge V 300 – 500 TC, part of HEINKEL Process Technology, is engineered for exceptional versatility in chemical and pharmaceutical pilot testing. Its mobile, compact design allows seamless integration into R&D and pilot plant operations. Designed to meet cGMP requirements, the centrifuge excels in small-scale production with its basket configuration suitable for filtration, sedimentation, and classifying of solids, slurries, and cakes.

Featuring a jacketed design for precise temperature control, it supports both heating and cooling during processing. The centrifuge is highly efficient with minimal installation effort, making it ideal for rapid pilot-line scale-up. Material options cater to diverse chemical compatibilities, ensuring longevity in corrosive environments. The series offers a range of capacities up to 0.47 m² filter area, supporting up to 620 liters, and operates efficiently with centrifugal forces reaching up to 2,054 x g. This equipment is indispensable for manufacturers in pharmaceuticals, chemicals, and food production sectors looking for precision and reliability in pilot-scale operations.

Benefits

  • Accelerates process scale-up with its mobile, compact design, ideal for pilot plant flexibility.
  • Enhances temperature control with a jacketed system, optimizing product consistency and quality.
  • Simplifies installation and operation with its "plug and use" capability, reducing setup time and costs.
  • Meets stringent cGMP requirements, ensuring compliance in pharmaceutical and chemical industries.
  • Offers versatile application across industries, handling diverse products from active pharmaceutical ingredients to recycled metals efficiently.

General


Applications
Chemicals,Fine chemicals,Metal recycling,Food products,Pharmaceuticals
End products
Polymers,Powdered food ingredients,Recycled copper,Active pharmaceutical ingredients,Specialty chemicals,Recycled aluminum,Food flavorings,Recycled stainless steel
Steps before
Mixing,Crystallization,Precipitation,Fermentation
Steps after
Filtration,Sedimentation,Classifying,Drying,Analysis
Input ingredients
chemical industry materials,raw chemicals
Output ingredients
filtered materials,sedimented materials,classified particles
Market info
Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.

Technical Specifications


Basket diameter
300 mm - 500 mm
Basket depth
150 mm - 300 mm
Filter area
0.14 m² - 0.47 m²
Nominal volume
4.9 L - 38 L
Max. Filling
6 kg - 38 kg
Max. Speed
3,500 1/min - 2,000 1/min
Centrifugal force
2,054 x g - 1,118 x g
Jacketed
Yes (heat up and cool down)
Installation
Simple ("plug and use")

Operating Characteristics


Working mechanism
Vertical configuration
Installation type
Mobile,compact “plug and use”
Heating/Cooling capability
Jacketed for heating and cooling
Testing capabilities
Baskets for filtration,sedimentation,and classifying
Operation mode
Batch
Automation level
Manual / Basic automated functions

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Testing capacity
Basic tests for filtration,sedimentation,and classifying

Physical Characteristics


Compact footprint
Mobile design
Basket diameter
300–500 mm
Basket depth
150–300 mm
Discharge method
Manual
Jacketed option
Yes,for heating and cooling
Installation
Plug and use
Mobile design
Yes

Custom Options


Control panel type
Not specified
Integration possibilities
Plug and use
Mobility
Mobile,compact design
