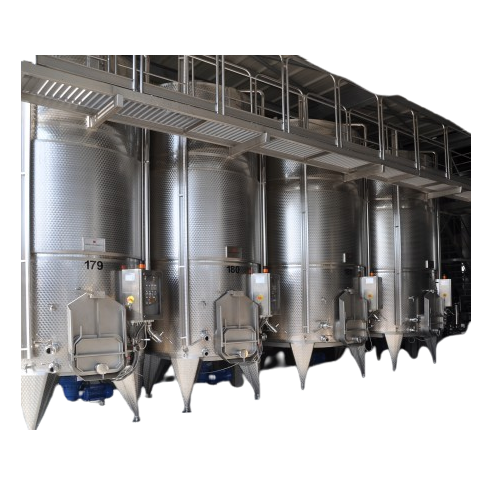

Vertical fermentation tanks for winemaking

Achieve optimal fermentation with vertical tanks designed for gentle must movement and effective extraction of key wine characteristics, enhancing the vinification process with precision and versatility in large-scale operations.

Facilitates Efficient Fermentation and Extraction

The Vertical Fermentation Tanks from Sirio Aliberti S.r.l. offer a specialized solution for winemakers and beverage producers, enhancing the vinification process through cap sprinkling and gentle must displacement. Constructed with cold-rolled AISI 304 stainless steel and an AISI 316 top, these tanks ensure robust performance and resistance to corrosion, crucial for various wine types including organic and aromatic wines. The tanks are equipped with centrifugal or motorized sprinklers and stainless steel screw pumps with rubber impellers, which effectively aid in the extraction of anthocyanins, tannins, and aromatic substances. With temperature conditioning pockets and automated unloading paddles, these tanks support continuous, large-scale operations with high productivity. Integrated electric control panels facilitate easy operation, while compatibility with existing processing lines enhances automation and efficiency. These tanks cater to winemaking, beverage, and food production industries, optimizing energy use for sustainable operations.

Benefits

  • Enhances flavor and aroma extraction for superior wine quality.
  • Ensures gentle handling of must to preserve wine characteristics.
  • Minimizes energy usage with optimized motor control.
  • Streamlines operations with integrated temperature control and automated unloading.
  • Adapts to varied winemaking processes, supporting versatility in production.

General


Applications
Winemaking,Fermentation,Wine production,Beverages
End products
Rosé wine,Red wine,Sparkling wine,Aromatic wines,Dessert wine,Fermented beverages,Fruit wines,White wine,Organic wine
Steps before
Harvesting,Crushing,Destemming
Steps after
Aging,Bottling,Stabilization
Input ingredients
must,grape marc
Output ingredients
vinified wine,anthocyanins,tannins,aromatic substances
Market info
Sirio Aliberti (Omnia Technologies) specializes in manufacturing industrial engineered-to-order (ETO) equipment, known for their customized solutions, innovative engineering, and high-quality standards, catering to various industry sectors with a strong focus on customer requirements and precision engineering.

Technical Specifications


Material
AISI 304 and AISI 316 stainless steel
Structure
Vertical with sloping flat bottom
Top type
Conical,sometimes off-center
Cap sprinkling method
Centrifugal or motorized sprinkler
Pumping method
Stainless steel screw pump with rubber impeller
Temperature conditioning
Temperature conditioning pockets
Automation
Electric control panel
Grape marc unloading
Automatic paddles

Operating Characteristics


Vinification process
Traditional with cap sprinkling
Pumping method
Stainless steel screw pump with rubber impeller
Motorized operation
Motorized sprinkler and automatic grape marc unloading
Temperature control
Temperature conditioning pockets
Automation level
Electric control panel
Construction material
Cold-rolled AISI 304 and AISI 316 stainless steel
Tank structure
Vertical with sloping flat bottom and conical top
Versatility
High productivity and versatility in use

Material Compatibility


Abrasion resistance
AISI 304/316 Stainless Steel
Biological compatibility
Food-grade Stainless Steel
Corrosive resistance (e.g. acids)
AISI 316 Stainless Steel
Cleanability
Easy to Clean
Density/particle size
Appropriate for liquid must

Product type Characteristics


Cap sprinkling method
Centrifugal or motorized sprinkler
Must displacement
Stainless steel screw pump with rubber impeller

Physical Characteristics


Tank shape
Vertical with conical top
Bottom type
Sloping flat bottom
Material
AISI 304 stainless steel,AISI 316 top
Legs
Stainless steel
Control panel type
Electric control panel
Discharge method
Paddles for unloading grape marc

Custom Options


Discharge method
Automatic unloading with paddles
Sprinkler type
Centrifugal or motorized
