Vertical cartoning solution for fragrance and skincare products

Effortlessly carton even the most delicate cosmetics with precision, ensuring your fragrance and skincare products maintain their quality and aesthetic integrity throughout the packaging process.

Packages and Protects Fragile Personal Care Products

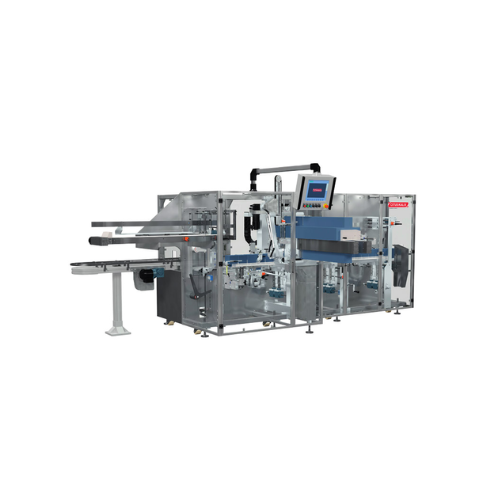

The KV800 Vertical Cartoning Machine by Citus Kalix is a robust solution for cosmetics and personal care manufacturers aiming to streamline their packaging processes. Specially engineered to handle fragile and uniquely shaped products, the KV800 uses an intricate manipulator insertion mode to ensure each carton is handled with precision, preventing damage during packing. With an operational capacity of 60 cartons per minute, it offers versatile production capabilities across a range of shapes, accommodating items from skin serums to perfume bottles.

The seamless integration into your existing production line is facilitated by its intermittent, high-speed operation, allowing for quick format changeovers in just 15 minutes. Designed to manage prefolded cartons up to 200mm in height, its vertical orientation is optimal for space-efficient packaging. The machine boasts compliance with European safety regulations 2006/42/EC, 2014/30/UE, and 2014/35/UE, ensuring it meets stringent industry standards.

Citus Kalix ensures the KV800 offers flexibility with optional modules for liner, booklet, and spatula distribution, catered to meet the evolving needs of fragrance and skincare production lines. The equipment’s design focus on energy efficiency and easy maintenance aligns with sustainable production strategies, while its capability to handle paperboard materials supports environmental conservation efforts.

Benefits

  • Enhances production efficiency with high-speed cartoning of 60 cartons per minute.
  • Protects delicate products and packaging, minimizing waste from product damage.
  • Facilitates rapid changeovers, minimizing downtime and improving operational flexibility.
  • Complies with stringent safety regulations, ensuring safe and reliable operation.
  • Optimizes use of floor space with its compact vertical design.

General


Applications
Personal care,Sun care,Fragrances,Skin care,Cosmetics
End products
Face creams,Eye creams,Sunscreen lotions,Fragrance sets,Perfume bottles,Jars of face masks,Moisturizers,Cologne bottles,Skin serums,Cosmetic jars,Body lotions
Steps before
Ingredient Mixing,Fragrance Formulation,Jar/Bottle Filling,Design Selection
Steps after
Labeling,Secondary Packaging,Quality Inspection,Warehousing
Input ingredients
round jars,bottles,sophisticated designs,fragile cartons,prefolded cartons
Output ingredients
folded cartons,packaged bottles,packaged jars
Market info
Citus-Kalix, part of the Coesia Group, is known for its expertise in designing and manufacturing high-performance packaging equipment, particularly for the cosmetics and pharmaceutical industries, providing innovative, engineered-to-order solutions with a strong focus on quality and precision.

Technical Specifications


Speed
60 cartons per minute
Machine depth
1807 mm
Machine height
1800 mm
Machine length
4855 mm
Machine weight
3000 kg
Insertion mode
Manipulator
Operating mode
Intermittent
Size changeover time
15 min
Max pack height
200 mm
Min pack height
40 mm
Max pack length
120 mm
Min pack length
25 mm
Max pack width
120 mm
Min pack width
25 mm
Packaging closing
Tuck
Packaging material
Paperboard
Packaging orientation
Vertical
Packaging type
Prefolded carton

Operating Characteristics


Working mechanism
Intermittent
Automation level
Automated
Changeover time
15 min
Batch vs. continuous operation
Intermittent/Batch
Speed
60 cartons per minute
Handling capability
Delicate cartons and sophisticated designs

Material Compatibility


Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Suitable for cosmetics and fragrance applications
Handling of fragile materials
Delicate cartons
Paperboard compatibility
Prefolded Carton

Product type Characteristics


Container size and shape
Round jars,bottles,sophisticated designs
Carton type
Delicate perfume and cosmetic cartons
Packaging Type
Prefolded carton,carton box
Packaging Orientation
Vertical


Safety Regulations
2006/42/EC
EMC Directive
2014/30/UE
Low Voltage Directive
2014/35/UE

Physical Characteristics


Machine depth
1807 mm
Machine height
1800 mm
Machine length
4855 mm
Machine weight
3000 kg

Custom Options


Control panel type
HMI/PLC options
Integration possibilities
Integration with existing line systems
Packaging closing type
Tuck
Packaging orientation
Vertical
Optional add-ons
Liner module,booklet and spatulas distribution
