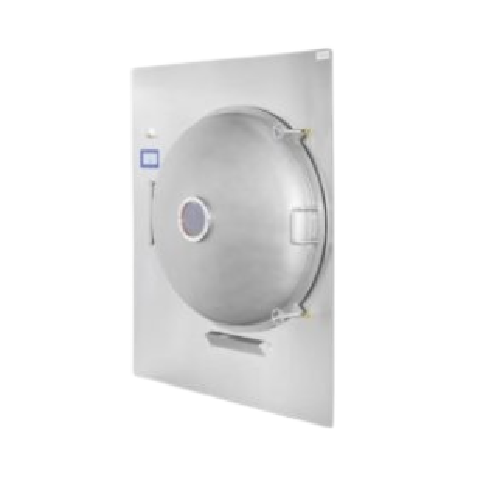

Laboratory vacuum drying system
Achieve precise moisture removal and maintain product integrity with advanced vacuum drying, ideal for ensuring quality in temperature-sensitive materials such as pharmaceuticals and biological samples.
Dries, Sterilizes, and Preserves Diverse Products
The VTA-Series Vacuum Dryer from ZIRBUS technology GmbH is engineered for precise drying and preservation in both laboratory and production settings. With a working principle based on contact or radiation drying under vacuum, this equipment is ideal for applications ranging from pharmaceutical active ingredients to preserved artifacts. Available in rectangular or round drying chamber configurations, the VTA-Series accommodates product floor spaces from 1 to 90m², supporting diverse throughput requirements. It integrates seamlessly into your production line with automated vacuum control and options for floor space customization and solvent capacitor configurations. Fabricated from corrosion-resistant stainless steel AISI 316L, it ensures durability and compliance with GMP and ATEX standards. The system also supports efficient sterilization (SIP) with steam or VHP, and includes a CIP option for ease of maintenance, making it a reliable and versatile choice for demanding production environments.
Benefits
- Enhances product quality with precise moisture control and preservation.
- Supports compliance in regulated industries with GMP and ATEX certifications.
- Reduces maintenance downtime with integrated CIP and SIP systems.
- Offers versatile application potential from pharmaceuticals to archaeological preservation.
- Customizable design options enable tailored integration into existing production lines.
- Applications
- Laboratory samples,Fine chemicals,Biopharmaceuticals,Food products,Industrial solvents,Archeological artifacts,Pharmaceuticals
- End products
- Biologic drugs,Dehydrated meals,Active pharmaceutical ingredients,Lyophilized vaccines,Purified industrial solvents,Dried herbs,Laboratory reagents,Preserved artifacts
- Steps before
- Purification,Emulsification,Grinding,Freeze Drying
- Steps after
- Sterilization,Cleaning,Packing,Isolator Connection
- Input ingredients
- solvent,liquid solutions,pharmaceutical ingredients,bulk materials
- Output ingredients
- dried materials,powder forms,pharmaceutical products,lyophilized products
- Market info
- Zirbus is known for manufacturing high-quality autoclaves, freeze dryers, and customized sterilization equipment, with a strong reputation for reliability and precision in industrial and laboratory applications.
- Temperature range
- 20–120°C
- Heating method
- Heat transfer medium (water,oil)
- Product floor space
- 1–30 m² / 1–90 m²
- Footprint size
- Customer-specific
- Material
- Stainless steel AISI 316L (1.4404)
- Drying method
- Contact or radiation drying under vacuum
- Vacuum control
- Automatic isolation valve between chamber and condenser
- Vacuum sensor
- Capacitive
- Vacuum pump type
- Oil-sealed or oil-free
- Sterilization method
- SIP with steam or VHP
- Cleaning method
- CIP
- Process visualization
- Available
- Pharmaceutical grade documentation
- IQ/OQ
- Drying method
- Contact or radiation drying under vacuum
- Batch vs. continuous operation
- Batch
- Automation level
- Automatic isolation valve,vacuum control
- CIP/SIP
- SIP with steam or VHP
- Cleaning method
- CIP
- Process visualization
- Included
- Corrosive resistance
- Stainless steel AISI 316L (1.4404)
- Cleanability
- Pharmaceutical grade documentation
- Biological compatibility
- Pharma GMP compliant
- GMP Compliance
- Pharma GMP compliant execution
- ATEX certification
- ATEX version 2014/34/EU
- Footprint size
- Customer-specific possible
- Drying chamber shape
- Rectangular / Round
- Product floor space
- 1…30m² / 1…90m²
- Material
- Stainless steel AISI 316L (1.4404)
- Drying chamber shape
- Rectangular / Round
- Product floor space
- 1…30m² / 1…90m²
- Footprint size
- Customer-specific possible
- Vacuum pump type
- Oil-sealed / Oil-free
