Ultrasonic tube sealer for plastic tubes

Seal plastic tubes with precision and speed using our ultrasonic technology, ensuring airtight integrity for your products while enhancing packaging quality and reducing material waste, ideal for small-scale and batch processes.

Seals and Packages Plastic Tubes

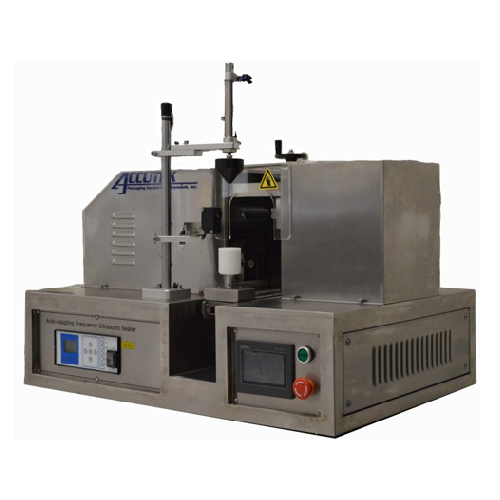

The Ultrasonic Tube Sealer from Accutek provides a reliable solution for sealing plastic tubes in medical, cosmetic, scientific, and food industries. Utilizing ultrasonic waves, this equipment creates airtight seals for liquids with thin to medium viscosity, ensuring product freshness and security. Perfect for bench-top operations, it operates with an external air source and features PLC control for easy integration. Capable of 8 to 12 pieces per minute, it supports tube sizes up to 50 mm in diameter and 210 mm in height. Constructed from stainless steel, this sealer is durable, maintains compliance with industry standards, and allows for seamless incorporation into research labs or small-scale production lines.

Benefits

  • Ensures product integrity with airtight sealing, enhancing shelf life.
  • Minimizes operational disruption with quick, efficient sealing of up to 12 tubes per minute.
  • Reduces labor costs through PLC-controlled easy integration into existing setups.
  • Supports versatile production lines with applications in medical, cosmetic, and food industries.
  • Durable stainless-steel construction offers longevity and resistance in demanding environments.

General


Applications
Food,Startup operations,Small batches,Cosmetics,Research and lab use,Medical,Scientific
End products
Cosmetic creams,Startup cosmetic samplers,Medical ointments,Small-scale prototype packs,Scientific gel samples,Research chemical samples,Food sauces,Lotion tubes
Steps before
Filling,Tube loading,Air pressure setup
Steps after
Inspection,Labeling,Packaging
Input ingredients
plastic tubes,thin to medium viscosity liquids,external air
Output ingredients
airtight seals,sealed plastic tubes
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Automation
PLC-controlled
Power
2.0 KW
Ultrasonic Frequency
20 KHZ
Capacity
8~12 pcs/min
Power Supply
220 V 50Hz / 110V 60HZ
Gas Pressure
0.5 MPa
Dimensions
850cm x 600cm x 730cm
Tube Size
Max dia. 50 mm,max height 210 mm
Filling Range
100 ml to 500 ml

Operating Characteristics


Automation level
PLC
Cleaning method
Manual
Batch vs. continuous operation
Batch

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel construction
Biological compatibility
Yes
Cleanability
Easy-to-clean
Plastic compatibility
Airtight sealing for plastic tubes
Thin to medium viscosity liquids
Compatible

Product type Characteristics


Environments
Medical,cosmetic,scientific,food

Physical Characteristics


Machine dimensions
850cm x 600cm x 730cm
Machine dimensions (inches)
33.5″ x 23.625″ x 35.5″
Tube size capacity
Max dia. 50 mm,max height 210mm
Tube size capacity (inches)
Max dia. 2.5″,max height 8.66″
Construction material
Stainless steel
Control panel type
PLC Control Display
Location of operation
Can be used on tabletops

Custom Options


Control panel type
PLC Control Display
Material
Stainless steel construction
Operation mode
Ultrasonic frequency pre-set
Installation type
Can be used on tabletops
