Ultrasonic food cutting system

Effortlessly achieve precise, clean slices on sticky and fragile foods with ultrasonic technology, ensuring optimal product presentation and reducing product waste in your processing line.

Cuts and Cleans Sticky, Fragile Foods

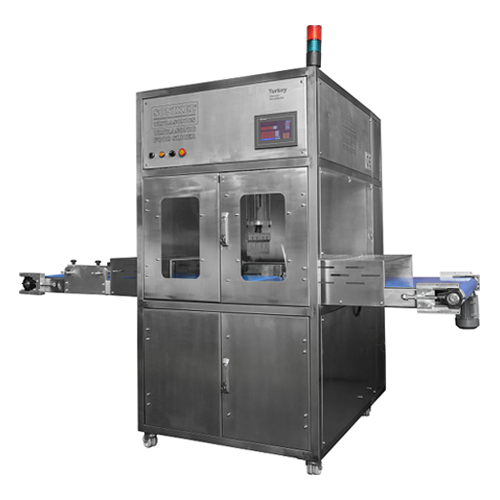

The UFC-P2 from Sonikel Ultrasonics is an ultrasonic food cutting machine engineered to streamline the processing of sticky and fragile foods such as cheese, honeycomb, and cake. It features a 4-axis blade movement and automatic washing station, enabling versatile cutting forms and maintaining cleanliness. This equipment integrates seamlessly into continuous, automated production lines, tailored to specific product sizes and types. With output frequencies of 20 kHz and power options of 1000W or 2500W, it ensures precise cuts with minimal waste. Constructed with stainless steel and titanium alloy blades, the UFC-P2 guarantees durability and compliance with food safety standards. Customizable conveyor speeds and cutting parameters offer flexibility, backed by strong engineering support for integration and operation optimization.

Benefits

  • Enhances product consistency and quality with precise ultrasonic cutting.
  • Integrates easily into existing production lines, boosting overall efficiency.
  • Minimizes manual intervention, reducing labor costs and potential errors.
  • Supports a wide range of food types, increasing production versatility.
  • Maintains hygiene standards with automated blade cleaning, decreasing contamination risks.

General


Applications
Fragile foods,Halva,Sandwich,Cake,Cheese,Honeycomb,Sticky foods
End products
Tahini halva pieces,Nougat bars,Sponge cake layers,Cheddar cheese slices,Honeycomb chunks,Soft cheese portions,Deli sandwiches
Steps before
Loading,Product Preparation
Steps after
Unloading,Packing
Input ingredients
kaşar peyniri,petek bal,helva,kek,sandviç,yapışkan gıdalar,kolay kırılabilen gıdalar
Output ingredients
pürüzsüz kesilmiş gıdalar,hızlı kesilmiş gıdalar,yuvarlak kesim,üçgen kesim,kare kesim,dikdörtgen kesim
Market info
Sonikel Ultrasonics is known for its expertise in manufacturing high-quality ultrasonic equipment for industrial applications, specializing in engineered-to-order solutions that meet diverse client specifications and maintain a strong reputation for reliability and innovation in ultrasonic technology.

Technical Specifications


Frequency
20 kHz
Output Power
1000W / 2500W
Supply Voltage
230V / 50-60 Hz
Cutting Forms
Round / Triangle / Square / Rectangle
Blade Movement
4-axis
Automation Options
Cut Time / Cut Length / Conveyor Belt Speed / Blade Movement Speed / Blade Cleaning Frequency / Cutting Forms / Operator Password / Recipe Memory
Material
Stainless body and titanium alloy blades
Application
Sticky or fragile foods like Kashar cheese,honeycomb,halva,cake,sandwich

Operating Characteristics


Working Mechanism
Ultrasonic cutting
Integrated Steps
Loading and unloading with conveyor belts
Automation Level
Fully automated with PLC
4-Axis Movement
Yes
Batch vs. Continuous Operation
Inline Continuous
Cleaning Method
Automatic blade washing

Material Compatibility


Biological compatibility
Food-grade
Cleanability
Easy to clean surfaces
Corrosive resistance (e.g. acids)
Stainless steel body
Abrasion resistance
Durable construction
Density/particle size
Suitable for soft and sticky foods


FDA materials
%100 gıdaya uygun

Physical Characteristics


Machine Footprint
Customizable based on requirements
Material Composition
Stainless Steel Body,Titanium Alloy Blade
Blade Movement
4-Axis
Cleaning
Automatic Blade Cleaning Station
Cutting Forms
Round,Triangle,Square,Rectangle
Integration Capability
Can be integrated into production line

Custom Options


Cutting Forms
Round,Triangle,Square,Rectangle
Blade Movement
4-axis
Automatic Blade Cleaning
Yes
Customizable for Product Size and Type
Yes
Adjustment Options
Cutting Time,Cutting Length,Conveyor Speed,Blade Movement Speed,Washing Frequency
Recipe Memory
Yes
Operator Password Protected
Yes
