Ultra-low upright freezer -86°c for biological sample storage

Preserve vital biological samples with precise ultra-low temperature control, ideal for ensuring the integrity of vaccines, mRNA, DNA, and organ samples in your laboratory.

Preserves Biopharmaceutical and Medical Samples at -86°C

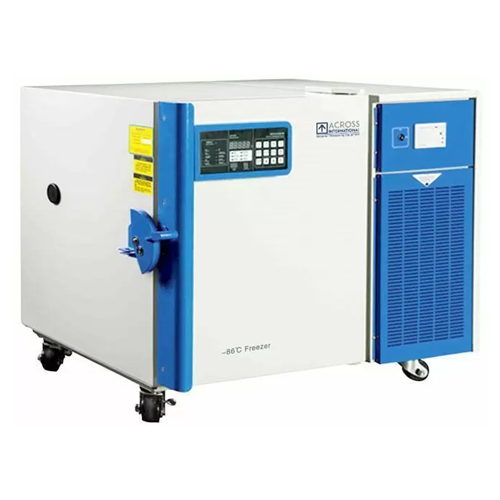

The Ai Glacier 4 Cu Ft -86°C Ultra-Low Upright Freezer, by Across International, provides specialized storage solutions for biopharmaceutical and medical applications. This single-compressor system is renowned for its ultra-low power consumption and low noise levels, making it ideal for environment-sensitive laboratories. It features a temperature range from -40°C to -86°C, optimized for preserving vaccines, DNA, RNA, virus samples, organs, and serums. With a capacity of 3.5 cubic feet, it integrates seamlessly into laboratory setups, ensuring reliable temperature control and sample integrity. The stainless steel interior ensures durability, while a built-in printer records essential data to maintain precise storage conditions. Certified to ETL standards, the freezer is engineered with several security features, including door locks and alarms, and offers optional remote alarm systems to safeguard your valuable samples. For enhanced convenience, it includes built-in swivel casters and a 48-hour battery backup for continuous control and alarm functions during power outages.

Benefits

  • Ensures sample integrity with reliable ultra-low temperature control.
  • Minimizes operational costs with low power consumption and reduced noise levels.
  • Enhances security with multi-layer alarm systems and door locks.
  • Facilitates easy maintenance with durable stainless steel construction.
  • Provides uninterrupted operation during outages with a 48-hour battery backup.

General


Applications
Serum,Laboratory samples,Vaccines,Virus samples,Biopharmaceuticals,Dna,Organs,Rna
End products
Dna plasmids,Viral vectors,Mrna vaccines,Serum-based diagnostics,Organ transplants,Rna therapeutic products,Cell culture samples
Steps before
Preparation,Sample Collection,Pre-Cooling
Steps after
Storage,Monitoring,Data Logging
Input ingredients
vaccines,DNA,RNA,virus samples,organs,serum,scientific samples,biological materials
Output ingredients
preserved vaccines,preserved DNA,preserved RNA,preserved virus samples,preserved organs,preserved serum,safely stored samples,frozen biological materials
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Temperature range
-40°C to -86°C
Time to reach -86°C
4 hours
Compressor Power
1HP
Compressor Make
SECOP (formerly Danfoss)
Refrigerant
Ai proprietary mixture gases,CFC-free
Chamber Dimensions
17.75 x 19 x 20" (WxDxH)
Effective Capacity
3.5 Cu Ft
Shelf Capacity
65 Lbs,evenly distributed
Battery backup system
48 hours (for controller display and alarms only)
Noise level
48 dBA
Access Port Diameter
30mm
Power Requirements
110V (±10%) 60Hz 1-Phase 950 watts 8.6A
Unit/shipping weight
380 Lbs / 494 Lbs
Unit/shipping dimensions
35 x 28 x 32" / 35 x 47 x 51" (WxDxH)
Shelf Dimensions
17.5 x 17.5 inches

Operating Characteristics


Automation level
Manual / Microprocessor-based
Temperature range
-40°C to -86°C
Noise level
Extremely quiet
Power consumption
Ultra-low
Battery backup
48 hours

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


UL STD 61010-1
Standard
CSA C22.2 NO. 61010-1
Standard
UL STD 471
Optional
ETL Tested
UL/CSA Standards
CDC Compliance
Yes
VFC Compliance
Yes

Physical Characteristics


Machine footprint
35 x 28 x 32" (WxDxH)
Machine weight
380 Lbs (unit) / 494 Lbs (shipping)
Chamber material
Stainless steel
Chamber dimensions
17.75 x 19 x 20" (WxDxH)
Door type
External door with dual sealing gaskets,lockable
Access port
One,30mm diameter
Shelf material
304 stainless steel
Shelf capacity
65 Lbs,evenly distributed
Shelf dimensions
17.5 x 17.5 inches
Battery backup
48 hours
Casters
Built-in swivel with locks

Custom Options


Data Printer
Built-in with 7 days record
Battery backup
48 hours for controller,alarm,and printer
Sealing gaskets
Dual silicon
Door Lock
Lockable
