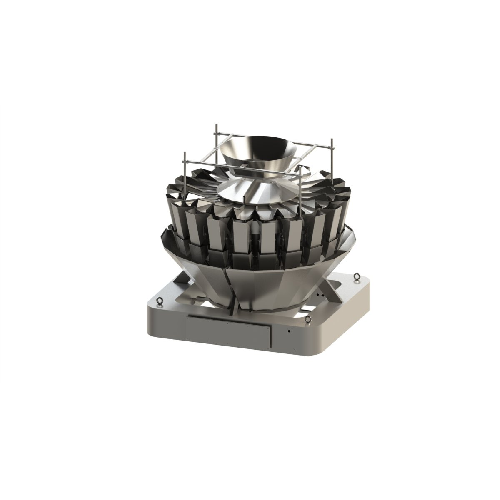

Twin product multihead weighing system for mixing and sorting

Optimize your production line with precision mixing and high-speed weighing, efficiently combining diverse products like snacks and frozen produce into uniform packages with exceptional accuracy.

Weighs and Mixes Dual Products Simultaneously

The JW – A20 D is a specialized multihead weigher designed by The Food Machinery Company, engineered to enhance efficiency in weighing and mixing operations across various industries. This unit is uniquely split to function as two independent 10-head weighers, allowing you to process and mix two different products simultaneously or operate as a high-speed single unit. It is particularly well-suited for applications in the snack and confectionery sectors as well as engineering component measurement. The machine offers a weighing capacity from 10 grams to 2 kg per dump, delivering up to 130 bags per minute with impressive accuracy ranging between 0.1 and 1.5 grams. Integration with twin VFFS machines is streamlined with dual timing hoppers, ensuring seamless packaging operations. Constructed with options for wash-down capabilities, this model is versatile for fresh and frozen produce. Its design supports energy-efficient operation, reducing resource expenditure. The JW – A20 D provides robust customization potential to meet specific production needs, backed by engineering support for optimal implementation and integration into existing production lines.

Benefits

  • Enhances production efficiency by processing dual product streams simultaneously.
  • Increases packaging speed with up to 130 bags per minute output.
  • Reduces product waste with precise weighing accuracy from 0.1 to 1.5 grams.
  • Adapts to diverse product types, including fresh and frozen produce, with wash-down capability.
  • Streamlines integration with existing lines through customizable configuration options.

General


Applications
Frozen produce,Snacks,Engineering components,Fresh produce,Sweets
End products
Gummy bears,Machine screws,Fresh strawberries,Frozen peas,Potato chips
Steps before
Sorting,Pre-weighing,Ingredient Preparation
Steps after
Packing,Sealing,Inspection
Input ingredients
sweets,snack products,engineering components,frozen produce,fresh produce
Output ingredients
mixed products,packed bags,twin VFFS machine feeds
Market info
The Food Machinery Company Ltd. is known for manufacturing bespoke food processing equipment, like conveyors and mixers, offering engineering expertise for industrial-scale food production, backed by a reputation for quality and tailored solutions in the UK and international markets.

Technical Specifications


Capacity
10 grams to 2 kg per dump
Speed
130 bags per minute
Accuracy
0.1 g to 1.5 g
Feed type
Dry / Frozen / Fresh produce
Automation
High-speed machine with controllers
Hopper type
Split feed hopper

Operating Characteristics


Automation level
High speed / PLC-controlled
Batch vs. continuous operation
Batch
Cleaning method
Wash down version available
Accuracy
±0.1 g to ±1.5 g
Product handling
Mixing two different products / Independent feeding
Capacity
10 grams to 2 kg per single dump
Output rate
Up to 130 bags per minute

Physical Characteristics


Footprint
Compact
Number of Heads
20 (10 head per side)
Machine Division
Split into two independent weighers
Feed Hopper Design
Split feed hopper
Discharge Method
Single dump,up to 130 bags per minute
Capacity Range
10 grams to 2 kg

Custom Options


Control panel type
Touchscreen / PLC interface
Integration possibilities
VFFS machines / Twin hoppers
Machine configuration
Single mode / Dual mode
Wash down version
Available
Split feed hopper design
Yes
Independent product feeding
Yes
