Tunnel pasteurizer for wine

Optimize your wine production with a high-efficiency tunnel pasteurizer, designed to enhance product quality through precise thermal control and energy-efficient operations.

Pasteurizes, Cools, and Heats Wine and Juice

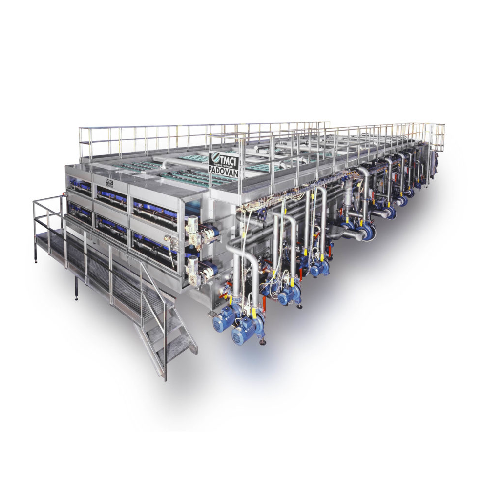

The Tunnel Pasteurizer and Thermal Exchange System by Padovan is engineered for wineries and beverage processing facilities needing reliable pasteurization, cooling, and heating of products like wine and grape juice. This system features a modular design with stainless steel construction, supporting continuous, high-speed operations and integrating seamlessly into existing production lines.

Its monoblock and modular configurations allow adaptation to varying production scales, from small to large installations. The system ensures energy efficiency with special spray nozzles requiring low hydraulic head, combined with thermal recovery, minimizing operational costs.

Equipped with PLC and SCADA for automation, the system enables precise temperature control and process monitoring, providing flexibility through customizable production recipes. With external installation of maintenance components such as gears and pumps, the system simplifies routine maintenance and cleaning, featuring inclined basins for quick drainage.

Capable of processing various end-products, including red, white, sparkling, fortified wines, and grape juice concentrates, this equipment supports production with high throughput while maintaining the integrity and quality of the final products. Optional remote monitoring supports operational efficiency, and engineering support ensures seamless integration into diverse facility configurations.

Benefits

  • Enhances production efficiency with continuous and high-speed processing.
  • Lowers operational costs through energy-efficient thermal recovery.
  • Simplifies maintenance, reducing downtime with easy access components.
  • Ensures product safety and quality with precise temperature control.
  • Provides flexibility with customizable production recipes and remote monitoring capabilities.

General


Applications
Grape juice,Wine
End products
Grape juice concentrate,Fortified wine,Red wine,Organic grape juice,White wine,Sparkling wine
Steps before
Blending,Filtration
Steps after
Bottling,Labelling,Storage
Input ingredients
wine
Output ingredients
pasteurized wine,cooled wine,heated wine
Market info
Padovan (Omnia Technologies) is known for engineering advanced industrial filtration and process equipment, particularly in the beverage, chemical, and food industries, with a reputation for innovation, quality, and tailored solutions in engineered-to-order equipment.

Technical Specifications


Material
Stainless steel
Structure Type
Monoblock / Modular
Deck Configuration
Single / Multi-deck
Automation
PLC-controlled
Energy Efficiency
High
Cooling/Heating Cycles
Tunnel Pasteurization,Cooling,Heating
Control System
SCADA / TELESERVICE
Transport Belt Material
High-resistant synthetic

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
PLC / SCADA
CIP/SIP
CIP / easy cleaning
Cleaning method
CIP / Manual
Maintenance accessibility
External components
Thermal cycles
Pasteurization / Cooling / Heating
Energy efficiency
Special spray nozzles / Low hydraulic heads
Process control
SCADA / TELESERVICE

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Structure Type
Monoblock / Modular
Material
Stainless Steel
Deck Type
Single / Multi Deck
Transport Belt Material
High-resistant Synthetic Material
Basin Type
Inclined Basins
Access Type
Rectangular Manhole Covers
Filter Type
Removable Double Pre-filters
Ceiling Type
Removable

Custom Options


Control panel type
PLC integrated with SCADA and TELESERVICE
