Tube filling solution for plastic and laminate tubes

Ensure precise tube filling and sealing with quick changeovers, enhancing efficiency in your packaging line for a variety of liquid products.

Fills and Seals Tubes Efficiently

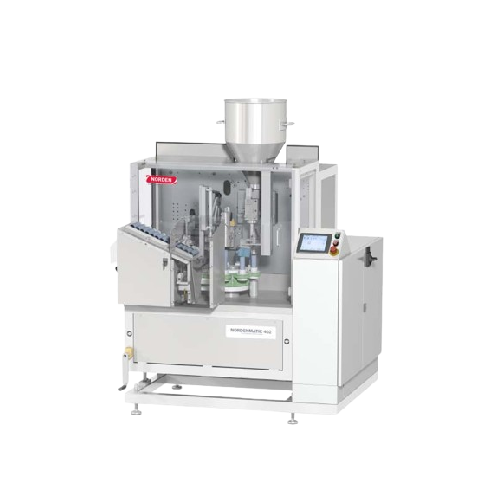

The NM 402 from Norden is a specialized tube filling machine designed for diverse industries such as food, personal care, and pharmaceuticals. Known for its precision, it efficiently fills and seals plastic and laminate tubes, offering up to 40 tubes per minute. Its intermittent operation and hot air sealing ensure accurate filling while maintaining product integrity. The machine’s touch screen panel facilitates ease of use, allowing for 30 pre-programmed format tables, reducing changeover time significantly. With a robust design, it accommodates filling volumes from 1 to 300 ml and supports various packaging materials like aluminum, laminated, and plastic. The NM 402 is ideal for products ranging from tomato ketchup to fluoride toothpaste, providing seamless integration in high-speed production lines and ensuring compliance with industry standards.

Benefits

  • Decreases changeover time with pre-programmed format tables, enhancing production efficiency.
  • Ensures high accuracy in filling and orientation, reducing waste and ensuring product consistency.
  • Supports varied packaging materials and shapes, offering flexibility in production lines.
  • Improves maintenance access with full-size front guard opening, minimizing downtime.
  • Enhances user interaction with an intuitive touch screen panel, simplifying operation and control.

General


Applications
Food,Home care,Personal care,Chemicals,Pharma,Healthcare
End products
Shaving cream,Shampoo,Paracetamol gel,Liquid laundry detergent,Fluoride toothpaste,Sunscreen lotion,Household cleaning gel,Facial creams,Peanut butter,Roll-on deodorants,Mustard,Tomato ketchup
Steps before
Emulsification,Mixing
Steps after
Sealing,Tray,Case Packing
Input ingredients
plastic tubes,laminate tubes
Output ingredients
filled tubes
Market info
Norden Machinery, part of the Coesia Group, is renowned for its expertise in designing and manufacturing advanced tube filling machines, particularly for the pharmaceutical, cosmetics, and food industries, emphasizing precision and high-speed performance.

Technical Specifications


Speed
40 tpm
Filling Volume
1 ml – 300 ml
Machine Depth
1370 mm
Machine Height
2030 mm
Machine Length
1640 mm
Machine Weight
1100 kg
Operating Mode
Intermittent
Max Pack Diameter
50 mm
Min Pack Diameter
10 mm
Max Pack Length
250 mm
Min Pack Length
50 mm
Packing Material
Aluminium - Laminated - Plastic
Packaging Shape
Cylindrical - Oval
Sealing Method
Hot Air Sealing

Operating Characteristics


Automation level
PLC
Changeover time
Reduced due to pre-programmed format tables
Intermittent Operating Mode
Yes
Operator interface
Touch screen panel
Access for maintenance
Full size front guard opening

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Heating requirement
Toothpaste,Liquid Soaps,Deodorants

Physical Characteristics


Machine depth
1370 mm
Machine height
2030 mm
Machine length
1640 mm
Machine weight
1100 kg
Footprint
Compact
Control panel type
Touchscreen
Discharge method
Hot Air Sealing

Custom Options


Control panel type
Touch screen
