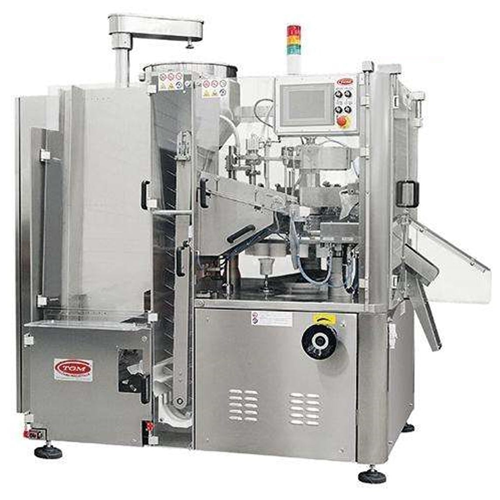

Tube filler & sealer for metal and plastic tubes

Streamline your production line by efficiently filling and sealing metal and plastic tubes, reducing waste and maximizing output, while maintaining product integrity for a variety of applications.

Fills and Seals Tubes Efficiently

The TGM B620 Tube Filler and Sealer from Adelphi Manufacturing offers a reliable solution for high-speed tube packaging. Designed to accommodate a variety of industries such as cosmetics, pharmaceuticals, and agrochemicals, this equipment effectively handles facial creams, adhesives, and juice concentrates. With a throughput of up to 6,000 metal tubes and 4,800 plastic tubes per hour, it features an automatic filling, sealing, and ejection process that enhances production efficiency while minimizing waste through its tube orientation sensors. The machine integrates seamlessly into existing production lines with its ergonomic tube loading system and ensures operator safety with all driving components housed below the working table. The TGM B620 supports hygienic operations with crevice-free surfaces and a lubricant-free design, while the hot air sealing method for plastic tubes and the fold and roll crimping for metal tubes cater to diverse packaging needs. Its availability within the UK and Ireland comes with the assurance of meeting local compliance and certification standards.

Benefits

  • Increases production efficiency by processing up to 6,000 tubes per hour.
  • Minimizes product waste with precise tube orientation and filling sensors.
  • Enhances operator safety with a below-table drive system.
  • Reduces labor requirements through its fully automated operation.
  • Supports diverse industry applications, from cosmetics to agrochemicals.

General


Applications
Personal care,Food,Beverage,Household products,Cosmetics,Veterinary,Chemical,Agrochemical,Pharmaceutical
End products
Juice concentrate tubes,Toothpaste,Pet vitamin paste,Facial creams,Plant fertilizer gel,Ointments,Yogurt tubes,Adhesive tube packs,Household cleaning gel packs
Steps before
Tube Loading,Tube Orientation,Material Preparation
Steps after
Tube Sealing,Product Ejection,Packaging
Input ingredients
metal tubes,plastic tubes,laminate tubes
Output ingredients
filled and sealed metal tubes,filled and sealed plastic tubes,filled and sealed laminate tubes
Market info

Technical Specifications


Filling speed
Up to 6,000 tubes/h for metal,4,800 tubes/h for plastic or laminate
Tube diameter (Metal)
10 - 42 mm
Tube length (Metal)
50 - 240 mm
Tube diameter (Plastic/Laminate)
10 - 50 mm
Tube length (Plastic/Laminate)
50 - 240 mm
Automation
Automatic
Sealing method (Metal)
Fold and roll crimping
Sealing method (Plastic/Laminate)
Hot air
Hygienic Design
Crevice-free and lubricant-free
Tube Loading System
Integrated ergonomic,swings aside for easy access
Orientation System
Tube print orientation and sensor detection
Operator Safety
Motors and machine drive below working table

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Batch
Changeover time
Fast
Cleaning method
Manual
Energy efficiency
High
Filling speed
Up to 6,000 tubes/h

Material Compatibility


Cleanability
Hygienic crevice-free surfaces

Product type Characteristics


Container type
Metal,plastic,laminate tubes

Physical Characteristics


Machine orientation
Tube print orientation sensor
Footprint
Compact design
Tubing loading system
Integrated ergonomic,swing-aside

Custom Options


Integration Possibilities
HMI,PLC
Ergonomic Design
Integrated ergonomic tube loading system
Safety Features
Motors and machine drive below working table for operator safety
Material Compatibility
Metal,Plastic,Laminate tubes
Sealing Method
Hot air for plastic/laminate,fold and roll crimping for metal
