Traysealer for small scale food packaging

Improve your production efficiency with a compact traysealer designed for versatile food packaging, offering seamless integration for sealing, vacuuming, and modified atmosphere processes. Ideal for small-scale operations seeking reliable and precise packaging solutions.

Seals and Packages Food Products Efficiently

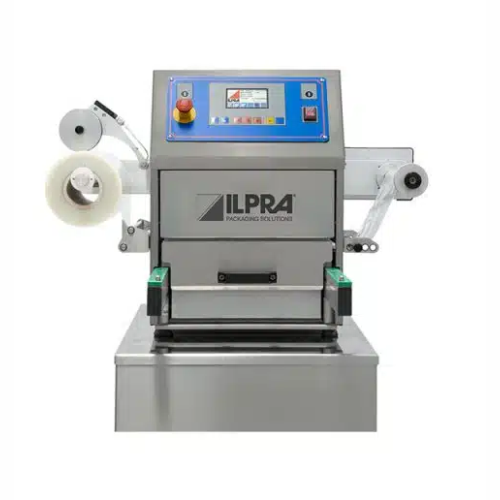

The FoodPack Basic Traysealer from ILPRA Benelux is a semi-automatic solution designed to optimize food packaging operations for small-scale producers. This compact machine excels in sealing, vacuuming, and modified atmosphere packaging, making it versatile for various food applications such as fresh pasta, vacuum-sealed meats, and ready meals. With dimensions of 91 x 88 x h 63 cm and a weight of approximately 65-85 kg, it offers a space-efficient design while maintaining robust performance.

Equipped with a touch screen panel, operators can easily set parameters and store multiple recipes for swift operation. The machine uses an automatic unwinder and rewinder system, efficiently managing film during the sealing process, and has an option for centered print adjustment for precise packaging.

The E-Mec version utilizes fully electromechanical movement for enhanced speed and productivity, reducing gas consumption via ILPRA’s patented PROGAS system. Built for seamless integration into existing production lines, the FoodPack Basic Configuration supports solid and liquid product types, ensuring hygiene and compliance with food industry standards while facilitating straightforward maintenance with quick mold change features.

Benefits

  • Enhances product freshness with reliable modified atmosphere packaging and vacuum sealing.
  • Increases operational efficiency through quick mold changes and automated film handling.
  • Reduces production floor space needs with its ultra-compact design.
  • Lowers gas usage, contributing to cost savings and environmental sustainability.
  • Adapts to various food types, offering versatility for small-scale food manufacturers.

General


Applications
Ready meals,Sauces,Pasta,Snacks,Pet food,Meat,Food packaging,Baby food,Dairy products,Fish
End products
Pesto sauce containers,Marinated salmon fillets,Sealed yogurt pots,Jarred baby puree,Packaged fresh pasta,Microwaveable lasagna,Canned pet kibble,Packaged tortilla chips,Vacuum-sealed beef steaks
Steps before
Tray preparation,Ingredient weighing,Product portioning
Steps after
Product packaging,Quality inspection,Batch labeling,Distribution
Input ingredients
pasta,meat,fish,ready meals,trays,printed film,neutral film
Output ingredients
packaged pasta,packaged meat,packaged fish,packaged ready meals,sealed trays
Market info
ILPRA is known for manufacturing innovative packaging machines, specializing in tray sealers, thermoformers, and filling machines. They have a strong reputation for reliable and advanced technology catering to the food, medical, and industrial sectors.

Technical Specifications


Machine Dimensions
91 x 88 x h 63 cm (N) - 104 x 88 x h 63 cm (VG)
Weight
circa 65 (N) - 85 (VG) Kg
Air Consumption
6 bar - 5 Nlt/cycle
Sealing Area
330 x 270 x h 135 mm
Automation
Touch Screen Panel
Unwinder and Rewinder
Automatic
Gas Usage
PROGAS System
Option
E-MEC Technology

Operating Characteristics


Automation level
Manual / PLC
Batch vs. continuous operation
Batch
CIP/SIP
Manual
Cleaning method
Manual
Changeover time
Quick mould change
Energy efficiency
Low gas consumption

Physical Characteristics


Machine footprint
91 x 88 x h 63 cm (N) - 104 x 88 x h 63 cm (VG)
Weight
Circa 65 (N) - 85 (VG) Kg
Sealing area
330 x 270 x h 135 mm
Control panel type
Touch screen
Compact footprint
Ultra Compact

Custom Options


Control panel type
Touch Screen Panel
Mold change system
Quick mould change without tools
Film unwinding/rewinding system
Automatic unwinder and rewinder
Print centering system
Centered print option
Technological upgrade
Optional E-Mec technology for higher speed
Compact design
Ultra Compact
