Traysealer for modified atmosphere packaging - food products

Optimize your packaging line with this semi-automatic traysealer, designed for efficient sealing, vacuuming, and modified atmosphere packaging of diverse food products, enhancing product shelf life and presentation.

Seals and Packs Trays for Diverse Food Applications

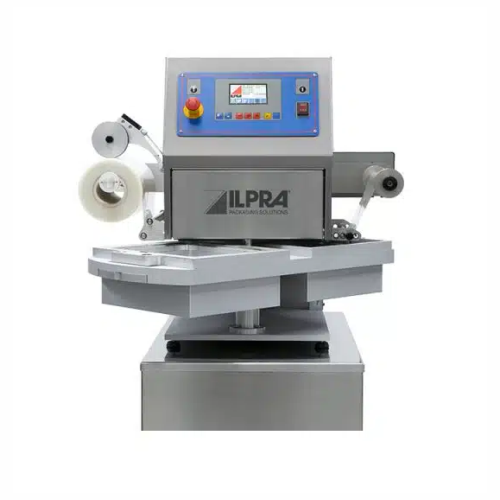

The FoodPack Rotobasic traysealer from ILPRA is a semi-automatic packaging machine designed to enhance efficiency for food manufacturers and small-scale producers. This machine is equipped with a rotary table, allowing operators to load and unload trays on one side while sealing and cutting occur simultaneously on the other, streamlining the packaging workflow. It accommodates various packaging processes, including vacuum, modified atmosphere, and skin packaging, making it versatile for sealing products like sliced ham, chicken breast fillets, lasagna, marinara sauce, and more. The system features an intuitive touchscreen panel for setting work parameters and storing multiple recipes for quick adjustments. With its quick mold change capability, the FoodPack Rotobasic minimizes downtime, allowing fast tray size transitions without tools. Its automatic unwinder and rewinder system efficiently handles both printed and neutral films, ensuring precise film application. ILPRA’s patented PROGAS system further optimizes gas consumption and speed, promoting cost-effective and sustainable operations.

Benefits

  • Enhances production efficiency with simultaneous loading and sealing operations.
  • Reduces operational downtime through tool-free, quick mold changes.
  • Promotes cost savings with optimized gas usage via the PROGAS system.
  • Supports diverse packaging needs, from vacuum to modified atmosphere sealing.
  • Increases product handling flexibility, accommodating a wide variety of food types.

General


Applications
Seafood,Ready meals,Sauces,Snacks,Pet food,Pasta-based products,Meat,Fruits,Dressings,Vegetables,Poultry,Baby food,Powdered products,Dairy products
End products
Chicken breast fillets,Infant formula packs,Fresh apple slices,Greek yogurt cups,Ranch dressing packs,Canned dog food trays,Mixed vegetable trays,Lasagna trays,Ravioli trays,Trail mix snacks,Marinara sauce,Instant coffee sachets,Pre-cooked shrimp,Sliced ham
Steps before
Product Preparation,Tray Loading,Recipe Selection
Steps after
Tray Unloading,Product Inspection,Secondary Packaging,Distribution
Input ingredients
pasta,meat,fish,ready meals,trays
Output ingredients
sealed trays,modified atmosphere packaging,vacuum sealed trays
Market info
ILPRA is known for manufacturing innovative packaging machines, specializing in tray sealers, thermoformers, and filling machines. They have a strong reputation for reliable and advanced technology catering to the food, medical, and industrial sectors.

Technical Specifications


Dimensions
104 x 87 x h 78 (N) - 116 x 87 x 78 (VG) mm
Weight
130 (N) - 150 (VG) Kg
Air Consumption
6 bar - 5 Nlt/cycle
Sealing area
330 x 270 x h 135 mm
Automation
Touch Screen Control
Mold Change
Quick,without tools
Unwinder/rewinder
Automatic

Operating Characteristics


Working mechanism
Tray sealer with rotary table
Integrated steps
Sealing,vacuum,cutting
Batch vs. continuous operation
Batch
Automation level
Touch screen control
Changeover time
Quick mold change without tools
CIP/SIP
Manual cleaning
Energy efficiency
PROGAS system for lower gas consumption
Loading/unloading method
Manual with rotary table

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type
Food
Container size
330 x 270 x h 135 mm
Container type
Trays

Physical Characteristics


Compact footprint
Supercompact
Machine dimensions
104 x 87 x h 78 (N) - 116 x 87 x 78 (VG)
Weight
130 (N) - 150 (VG) Kg
Sealing area
330 x 270 x h 135 mm
Rotary table
Dual station loading/sealing
Control panel type
Touch Screen Panel

Custom Options


Control panel type
Touch Screen
Quick mold change
Tool-free
Automatic film unwinder and rewinder
Centered print option
Rotary table
Dual station operation
