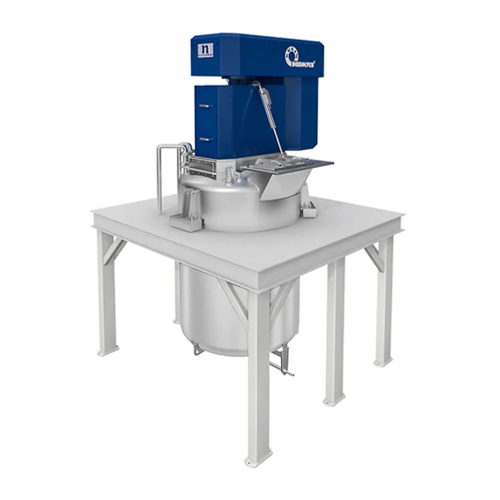

Top-mounted disperser for high-viscosity products

Achieve rapid, uniform dispersion of ultra-high viscosity materials with this top-mounted disperser, expertly designed for efficient integration into continuous production lines.

Mixes and Disperses High-Viscosity Products

The Top-Mounted KREIS-DISSOLVER® from NIEMANN is an engineered-to-order dispersing dissolver designed for processing high-viscosity products across multiple industries. Built with a height-adjustable toothed disc, this equipment integrates seamlessly into automated production lines via modern frequency converter technology. It handles batch sizes from 300 to 19,500 kg with driving powers ranging from 22 to 315 kW.

Ideal for producing architectural paints, automotive clearcoats, and epoxy adhesives, this system efficiently mixes and disperses under a controlled process that achieves finenesses below 5µm in dispersion times of 10 to 15 minutes. Compatible with dense materials, it supports easy integration with upstream mixing and downstream fine grinding processes.

The KREIS-DISSOLVER® offers enhanced energy efficiency through a frequency converter system, while ensuring operational safety with its ATEX-certified options for hazardous environments. With stainless steel construction available for mixing containers and comprehensive PC/PLC control options, it meets stringent industry standards for quality and compliance. Optional features include vacuum execution, advanced cleaning systems, and temperature control, providing tailored solutions for your specific production challenges.

Benefits

  • Streamlines production with rapid processing times, achieving finenesses below 5µm in minutes.
  • Enhances efficiency and reduces energy costs with advanced frequency converter technology.
  • Tailors to versatile production needs with customizable batch sizes and power options.
  • Ensures safety and regulatory compliance with ATEX-certified systems for hazardous areas.
  • Facilitates seamless cleaning and maintenance through advanced cleaning technology and integrated temperature control.

General


Applications
Pigment pastes,Sealants,Pvc-pastes,Casting compounds,Printing inks,Coatings,Plasters,Floor coverings,Cosmetic products,Adhesives,Fillers,Composite materials,Paints
End products
Moisturizing creams,Acrylic plasters,Epoxy casting resins,Lip gloss,Silicone sealants,Carbon fiber composites,Automotive clearcoats,Screen printing inks,Offset printing inks,Titanium dioxide pigment pastes,Architectural wall paints,Vinyl flooring adhesives,Decorative floor coatings,Epoxy adhesives,Wall joint fillers
Steps before
Grinding,Mixing,Weighing,Dispersion
Steps after
Cooling,Heating,Packaging,Quality Control
Input ingredients
middle to high viscous products,ultra high-viscous and thixotrope products,highly-concentrated initial dispersion quantity,paints,coatings,plasters,printing inks,pigment pastes,adhesives,fillers,sealants,PVC-pastes,floor coverings,casting compounds,composite materials,cosmetic products
Output ingredients
finenesses < 5µm
Market info
Wilhelm Niemann is renowned for manufacturing high-quality dispersing machines and mixers used in the paint and varnish industry, delivering engineered-to-order solutions with a strong reputation for innovation, reliability, and precision.

Technical Specifications


Viscosity Processing Range
up to 1,000,000 mPas
Batch Size
300 - 19,500 kg
Driving Power Range
22 to 315 kW
Rotation Speed
40 - 1650 1/min
Dispersion Time
10 - 15 min
Possible Finenesses
< 5µm
Automation
Frequency Converter Technology
Batch Control
KD-BATCH-CONTROL®
ATEX Certification
Ex II 2 G/D c IIB T3
Temperature Control
Cooling/Heating with Double Casing or Half-pipe Coil Jackets
Material Execution
Stainless Steel
Cleaning Method
High Pressure Cleaning System
Viscosity-dependent Speed Control
Yes
Recipe Controlled Semi and Fully Automatic Control
PC/PLC

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Recipe controlled semi and fully automatic
Cleaning method
Vacuum execution / Cleaning nozzles for medium or low pressure
Energy efficiency
Using modern frequency converter technology
Dispersion time
10 - 15 min

Material Compatibility


Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Container size
300–19,500 kg
Heat sensitivity
Temperature measurement and control
Material Type
Paints,coatings,plasters,inks


ATEX according to protective system Ex II 2 G c IIB T3
Category 2G (zone 1)
ATEX according to protective system Ex II 2/- D c IIB T3
Category 2D (zone 21)

Physical Characteristics


Closed system
Yes
Height-adjustable toothed disc
Yes
Built into steel platform or ceiling
Yes
Machine footprint
N/A
Batch size
300 - 19500 kgs
Driving power
22 to 315 kW
Rotation speed
40 - 1650 1/min
Batch sitzes
300 - 19500 kgs

Custom Options


Control panel type
NIEMANN KD-TOUCH 16
Customization Option
Height-adjustable toothed disc
Built into structure
Steel platform or ceiling
