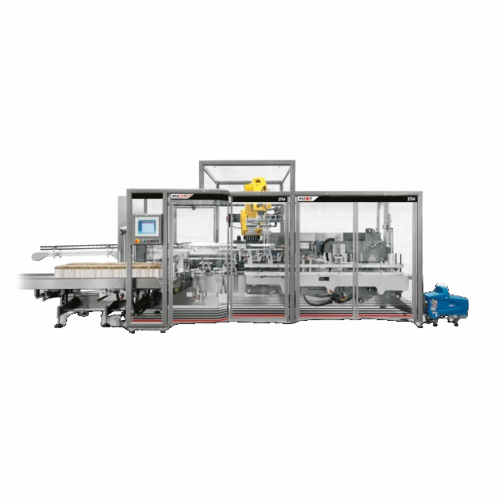

Top loading case packer for loose or bundled bottles

Effortlessly handle and pack both standard and uniquely shaped bottles with precision, ensuring streamlined operations and reduced downtime in high-speed production environments.

Packs and Seals Bottles with Precision

The 3754 Servo Driven Top Loading Case Packer from IMA Group is engineered for high-speed efficiency and versatility. Designed to manage complex bottle shapes and sizes, it features dual case handling for increased output. This equipment erects, loads, and seals up to 50 cases per minute, optimizing operational throughput for packaging lines in food, dairy, beverage, and personal care industries. The machine’s servo-driven technology ensures precise handling, while non-stop worm-screws accurately orient containers for seamless integration. Available with options for adhesive tape or hot-melt glue sealing, it offers flexibility in packaging solutions. Ergonomically designed for easy access and maintenance, the 3754 also includes an automatic gripper head change for rapid product swaps, making it an ideal choice for dynamic production environments.

Benefits

  • Maximizes packaging efficiency by handling two cases simultaneously, increasing output.
  • Reduces labor involvement with automated, servo-driven operations and precise container orientation.
  • Enhances operational flexibility with quick 20-minute changeovers and optional gripper head changes.
  • Offers versatile sealing options to match diverse product needs, improving packaging line adaptability.
  • Ensures seamless integration into existing lines, optimizing space with its compact design.

General


Applications
Bundled bottles,Loose bottles,Unusual shaped bottles,Food products,Dairy products
End products
Beer bottles,Sauce bottles,Vinegar bottles,Olive oil bottles,Milk cartons,Wine bottles,Yogurt containers,Juice bottles,Shampoo bottles,Detergent bottles
Steps before
Bottle Bundling,Product Orientation,Case Erecting
Steps after
Case Sealing,Palletizing,Shipping
Input ingredients
loose bottles,bundled bottles,difficult shaped bottles
Output ingredients
packaged cases,sealed cases
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Max speed
up to 50 cases/min
Product dimensions (Simplex Min)
165 x 80 x 165 mm
Product dimensions (Simplex Max)
600 x 300 x 300 mm
Product dimensions (Duplex Min)
165 x 80 x 165 mm
Product dimensions (Duplex Max)
325 x 180 x 300 mm
Automation
Servo driven,robot equipped
Case closing method
Adhesive tape or hot-melt glue
Changeover time
20 minutes
Footprint
Compact

Operating Characteristics


Automation level
Servo driven
Changeover time
Complete changeover in 20 minutes
Cleaning method
Easy cleaning
Handling capability
Loose or bundled bottles with unusual shapes
Loading mechanism
Top loading
Output capability
Up to 50 cases/min in duplex version
Simultaneous operations
Manages two cases simultaneously

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Loose or bundled bottles
Shape handling
Unusual bottle shapes

Physical Characteristics


Machine footprint
Compact
Handling type
Top loading
Case handling capacity
Simultaneous dual case
Case magazine configuration
2 rows of cases
Robot integration
Robot for collation insertion
Changeover time
20 minutes
Automatic Gripper Head change
Optional
