Tomato processing plant for sauce and paste

Efficiently transform raw tomatoes into a variety of high-demand products, from sauces to juices, with a comprehensive solution designed for seamless integration and optimal performance in your production line.

Processes Tomatoes into Sauces, Pastes, and Juices

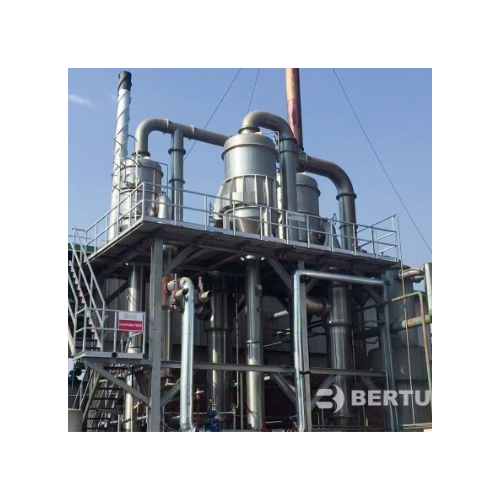

Bertuzzi’s Tomato Processing Plant and Equipment offer a comprehensive solution for food processing and tomato product manufacturers, efficiently transforming raw tomatoes into a variety of sauces, pastes, and juices. The Bertuzzi Chopper model 6 initiates the process by finely mashing tomatoes, followed by refining with Turbomax pulpers. Concentration is achieved through the Frumaco/Tomatech forced circulation evaporator, supporting capacities with up to five effects, making it ideal for diverse production scales.

Sterilization employs the STTH tube-in-tube sterilizer for maximum hygiene, and aseptic fillers like Aseptica Gemina ensure contamination-free packing in various formats. The plant is fully automated with CIP systems such as CipMatic 3.000/3 for efficient cleaning, supporting continuous high-speed operations.

Designed for seamless integration from washing to final packaging, the system is PLC-controlled with options for remote monitoring. Built with durable materials suitable for food-grade applications, Bertuzzi equipment aligns with stringent international standards, ensuring reliability and high throughput in every process stage.

Benefits

  • Maximizes production efficiency with continuous high-speed operation.
  • Reduces operating costs by minimizing energy consumption through optimized motor control.
  • Ensures product safety and quality with aseptic processing and packaging.
  • Simplifies maintenance with integrated CIP systems for effortless cleaning.
  • Customizable for a wide range of tomato-based products and production capacities.

General


Applications
Ketchup,Sauces,Tomato juice,Vegetable sauces,Tomato paste,Tomato sauce
End products
Sriracha,Pizza sauce,Arrabbiata sauce,Passata,Hot sauce,Enchilada sauce,Bolognese sauce,Tomato purée,Marinara sauce,Bbq sauce,Bloody mary mix,Gazpacho base
Steps before
Washing,Sorting,Pre-heating,Chopping
Steps after
Sterilization,Filling,Packing,Cleaning
Input ingredients
fresh tomatoes
Output ingredients
tomato sauce,ketchup,tomato paste,tomato juice,vegetable sauces
Market info
Bertuzzi is known for designing and manufacturing industrial equipment for the fruit and vegetable processing industry, specializing in producing machinery for juice and puree production, with a reputation for quality engineering and innovative solutions.

Technical Specifications


Tomato Processing Capacity
100–1000 tons/day
Hot Break Temperature
85–95°C
Cold Break Temperature
60–75°C
Evaporator Type
Forced circulation
Effects in Evaporator
Up to 5 effects
Sterilization Method
Tube in tube sterilizer
Aseptic Filling
Bag in Drum / Box
CIP System
Automatic CIP

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP
Cleaning method
CIP / Centralized Automatic System
Automation level
PLC / SCADA
Heat Treatment
Hot and Cold Break System
Pulp Refinement
Turbomax Pulper
Sterilization
Tube in Tube Sterilizer
Integration
Turnkey Basis / Modular Implementation
Pasteurization and Homogenization
Integrated Group with Deaerator

Physical Characteristics


Footprint
Customizable turnkey plants
Sorting System Type
Roller type,Scraped bottom type
Discharge Method
Aseptic bag in drums or box
Sterilizer Model
Tube in tube sterilizer model STTH
Filler Type
Aseptic Filler Aseptica Gemina/Prima

Custom Options


Control panel type
HMI / Touchscreen
Integration possibilities
SCADA / PLC
Footprint
Compact design
Discharge method
Aseptic filling
Customization level
Fully customized to customer recipes
Aseptic filler model
Aseptica Gemina / Aseptica Prima
