Tabletop granulation system for small batches
Enhance R&D capabilities with this innovative solution designed for granulation, drying, and coating. Ideal for testing small batches, it optimizes resource usage and enables precise control over complex processes, crucial for developing advanced multi-component formulations in pharmaceuticals and nutraceuticals.
Processes and Coats Pharmaceuticals and Nutraceuticals

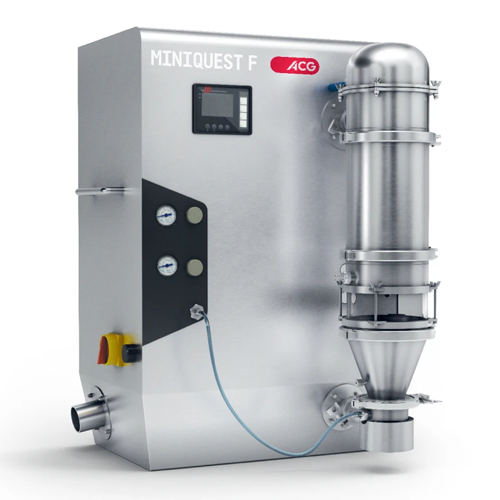

The MINIQUEST F from ACG is designed for small-scale pharmaceutical and nutraceutical production, providing unparalleled flexibility in R&D environments. This compact fluid bed processor excels in granulation, drying, and Wurster coating processes, featuring an innovative venturi-based fluidisation system that eliminates the need for electrically powered blowers, simplifying installation and reducing operational costs. With a working volume accommodating batches from 225 ml to 750 ml, it’s perfect for handling diverse product types such as powders and granules. The integrated peristaltic pump minimizes system footprint, while the 5μ sock filter ensures dust-free operations, suitable for academic settings and early production stages. Its compliance with GMP standards facilitates seamless integration into existing processing lines.
Benefits
- Enhances production flexibility with integrated granulation, drying, and coating functions.
- Reduces installation complexity and cost with venturi-based fluidisation requiring no blower.
- Ensures cleaner operation and safety with effective dust containment.
- Supports precise small-batch experimentation, ideal for R&D settings.
- Complies with GMP standards for seamless process integration.
- Applications
- Nutraceuticals,Pharmaceuticals
- End products
- Omega-3 soft gels,Energy booster capsules,Cold and flu tablets,Probiotic capsules,Herbal supplements,Multi-vitamin tablets,Immune support tablets,Joint health supplements
- Steps before
- Material preparation,Ingredient mixing
- Steps after
- Wurster coating,Hot-melt granulation,Packing
- Input ingredients
- granulation materials,coating substrates,pharmaceutical ingredients,nutraceutical ingredients
- Output ingredients
- granulated products,coated tablets,coated capsules,dry granules
- Market info
- ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.
- Top-spray granulation working volume
- Min 225 ml,Max 750 ml
- Wurster coating working volume
- Min 40 ml,Max 200 ml
- Batch size
- 50 g minimum
- Automation
- Integrated peristaltic pump
- Venturi-based fluidisation system
- No electrically powered blower required
- Dust filter
- 5μ sock filter
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- CIP/SIP
- CIP 121°C / SIP 135°C
- Cleaning method
- CIP / Manual
- Integrated steps in process
- Granulation / Drying / Coating
- Working mechanism
- Venturi-based fluidisation
- Energy efficiency
- 0.5–2 kWh/kg moisture
- Biological compatibility
- Pharmaceutical and nutraceutical suitability
- Cleanability
- Easy cleaning due to innovative tower assembly
- Density/particle size
- Works with batch sizes as small as 50g
- Application type
- Top-spray granulation,wet-mass drying,hot-melt granulation,tangential spray granulation,Wurster coating
- Machine footprint
- Compact
- Working volume
- Min225 ml to Max750 ml
- Basket size or shape
- Tabletop granulation system
- Nozzle type
- Düsen-Schlick
- Control panel type
- Integrated
- Discharge method
- Venturi-based fluidisation system
- Compact footprint
- Minimizes space requirement
