Steam sterilizer for pharmaceutical production

Ensure consistent, contamination-free sterilization of pharmaceutical components with this advanced steam sterilizer, designed to optimize biopharma production efficiency and maintain stringent quality standards.

Sterilizes and Validates Pharmaceutical Components

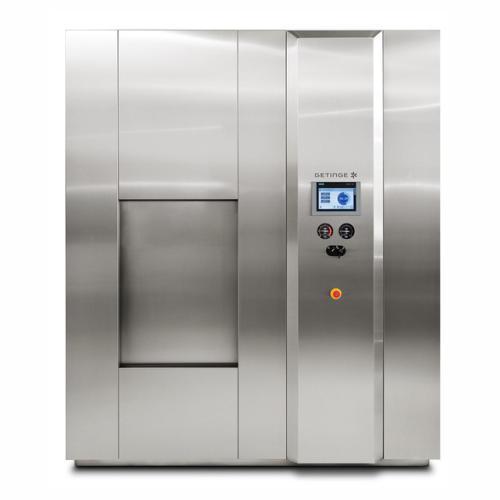

The GSS P Steam Sterilizer from Getinge is engineered to meet the stringent demands of the pharmaceutical and biopharmaceutical industries. This autoclave stands out with its reliable contamination prevention and user-friendly operation. Employing a controlled steam sterilization process, it facilitates batch, high-speed, and continuous operations, perfectly suited for applications involving injectable vaccines, sterile saline solutions, and lyophilized drugs.

Designed with flexibility in chamber sizes ranging from 0.4 to 9 cubic meters, it integrates seamlessly into various production environments. The intuitive HMI and SIMATIC WinCC Unified enhance operator control and monitoring, promoting ease of use and safety. With materials crafted from GMP-compliant, sanitary stainless steel, the GSS P ensures hygiene and durability, while robotic welding and polishing guarantee superior finish and corrosion resistance.

Configured for global compliance, it supports GAMP5 validation and adheres to GMP standards, ensuring certification across diverse regulatory landscapes. The integrated Quality Process Management System facilitates seamless validation and monitoring, while options such as B & R, Siemens, or Allen Bradley control systems provide versatile automation and integration capabilities. Getinge further offers extensive customization and engineering support to optimize configuration and operational efficiency.

Benefits

  • Enhances production efficiency by ensuring consistent sterilization and cleaning.
  • Minimizes contamination risks with GMP-compliant, sanitary stainless steel construction.
  • Facilitates seamless integration into existing production lines with customizable chamber sizes.
  • Supports regulatory compliance with advanced validation and global standards adherence.
  • Optimizes operator workflow with user-friendly HMI and real-time process monitoring.

General


Applications
Pharmaceutical components,Biopharma,Biopharmaceuticals,Life sciences,Pharmaceutical production
End products
Lyophilized drugs,Insulin,Monoclonal antibodies,Pre-filled syringes,Sterile saline solutions,Injectable vaccines
Steps before
Component Preparation,Cleaning,Loading
Steps after
Unloading,Quality Control,Packaging
Input ingredients
pharmaceutical components,biopharmaceutical materials,equipment requiring sterilization
Output ingredients
sterilized components,contamination-free biopharmaceutical products
Market info
Getinge is known for providing innovative healthcare and life sciences products, specializing in medical technology, infection control, surgical workflows, and critical care solutions. They maintain a strong reputation for quality and technological advancement in these sectors.

Technical Specifications


Chamber Volume
0.4 to 9 cubic meters
Chamber Volume
10 to 400 cubic feet
Automation
SIMATIC WinCC Unified
Control System
B,R,Siemens,Allen Bradley
Material
Sanitary stainless steel
Dimensions
660 x 700 x 1000 mm
Dimensions
26” x 26 ½” x 39 3/8”
Compliance
GAMP5
Operator Interface
Intuitive HMI
Pressure Vessel
Robotically welded and polished
Customizable Sizes
Available upon request

Operating Characteristics


Working Mechanism
Steam sterilization with autoclave
Integrated Steps
Cleaning and sterilization with flexible visualization
CIP/SIP
CIP 121°C / SIP 135°C
Automation Level
PLC with SIMATIC HMI
Batch vs. Continuous Operation
Batch
User Friendliness
Intuitive HMI with preset processes
Energy Efficiency
Optimized for productivity and efficiency

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
High
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Contamination prevention
Biopharmaceutical production


GMP Compliance
Yes
CE marking
Yes
FDA compliance
Yes
FDA materials
Yes
GAMP5 Compliance
Yes

Physical Characteristics


Chamber size
0.4 to 9 cubic meters (10 to 400 cubic feet)
Compact footprint
Yes
Control panel type
Ergonomic display with intuitive HMI
Discharge method
Customizable to production setup
Sanitary Design
Sanitary stainless steel parts

Custom Options


Control Panel Type
SIMATIC HMI
Integration Possibilities
SIMATIC WinCC Unified
Chamber Size
0.4 to 9 cubic meters
Control System
B,R,Siemens,Allen Bradley
Customization Availability
Autoclave Machine Fit
