Steam cooker and stretcher for cheese production

Easily integrate versatile steam cooking and stretching to enhance your cheese production line by optimizing cooking, kneading, and mixing processes for a range of cheese types.

Processes and Cooks Cheeses for Consistency

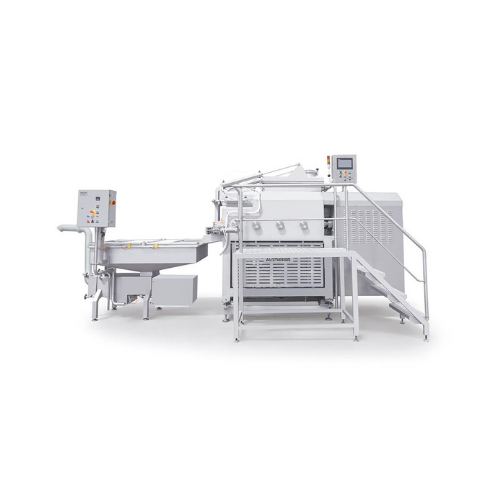

The CS-450 Cheese Processing Steam Cooker & Stretcher from Uzermak excels at cooking, kneading, stretching, mixing, and melting various cheeses, including mozzarella and analogue varieties. Engineered for dairy producers and food processing companies, it processes up to 450 kg per batch, achieving a throughput of 1200–1600 kg/h. The machine features dual independent augers with counter-rotating capabilities, allowing precise recipe adjustments via PLC-controlled devices. Its steam-based heating uses eight nozzles for direct contact and a double-jacketed wall for indirect heating, optimizing energy efficiency. Constructed with AISI304 stainless steel, the CS-450 offers optional upgrades to AISI316 for enhanced corrosion resistance. Integrated safety systems include sensors and automated shut-offs, ensuring operational safety. It also accommodates up to 10 recipe profiles and incorporates an extruder for storage and stretching, facilitating seamless integration into existing production lines.

Benefits

  • Enhances product uniformity with precise, recipe-controlled processing.
  • Increases productivity, processing up to 1600 kg per hour.
  • Minimizes energy costs through efficient steam and motor control.
  • Ensures easy maintenance and sanitation with stainless steel construction.
  • Provides operational safety with integrated sensors and automated shut-offs.

General


Applications
Analogue cheeses,Mozzarella,Pizza cheese,Pasta filata cheese,Kashkaval
End products
Burrata,Cheese shreds,Ricotta salata,Cheese sticks,Provolone,Cheese blocks,Cheese spread,Processed cheese slices,Scamorza,String cheese
Steps before
Cheese curd preparation,Milk pasteurization,Curd draining,Curd maturation
Steps after
Cooling,Cutting,Packaging,Aging
Input ingredients
pasta filata,pizza cheese,kashkaval,mozzarella,analogue cheeses
Output ingredients
cooked cheese,kneaded cheese,stretched cheese,mixed cheese,melted cheese
Market info

Technical Specifications


Capacity
600 kg
Batch capacity
450 kg
Steering Mechanism
Independent two augers- counter rotating
Augers speed
Up to 160 rpm
Automation
PLC-controlled
Temperature Control
Automatic
Steam heating
Direct and Indirect steam heating
Hourly capacity
1200 – 1600 kg/h
Steam consumption
200 kg/h
Energy requirements
26 kW

Operating Characteristics


Working mechanism
Steam Cooker,Stretcher
Integrated steps
Cooking,kneading,stretching,mixing,melting
Automation level
PLC-controlled
Batch type
Batch capacity 450 kg
Cleaning and safety
Safety sensors,Automatic temperature control
CIP/SIP
CIP compatible materials
Steam treatment
Direct and indirect steam heating
Auger control
PLC-controlled speed and direction
Energy efficiency
26 kW

Material Compatibility


Cleanability
AISI304 stainless steel,food-safe plastics
Corrosion resistance
AISI304 stainless steel
Biological compatibility
Food-grade materials
Chemical resistance
Compatible with cleaning detergents

Physical Characteristics


Machine body capacity
600 kg
Batch capacity
450 kg
Material
AISI304 stainless steel
Discharge method
Automatic opening/closing of product inlet/outlet
Auger speed
160 rpm max
Heating method
Direct steam through 8 nozzles,Indirect steam from double jacketed wall
Recipe memory capacity
10 different recipes
Material (Optional)
AISI316 stainless steel

Custom Options


Control panel type
PLC and touch panel
Auger movement customization
PLC-controlled speed,direction,and time
Auger speed control
Frequency inverter
Heating options
Direct and indirect steam heating
Recipe storage
10 different recipes
Body material
AISI304 or optional AISI316 quality stainless steel
Intermittent steam supply
PLC system enabled
