Steam air autoclave for pharmaceutical industry

Ensure precise sterilization of sensitive pharmaceutical products while maintaining package integrity with an advanced steam air autoclave, optimizing cycle times and enhancing process reliability in critical applications.

Sterilizes and Conditions Pharmaceutical Liquid Products

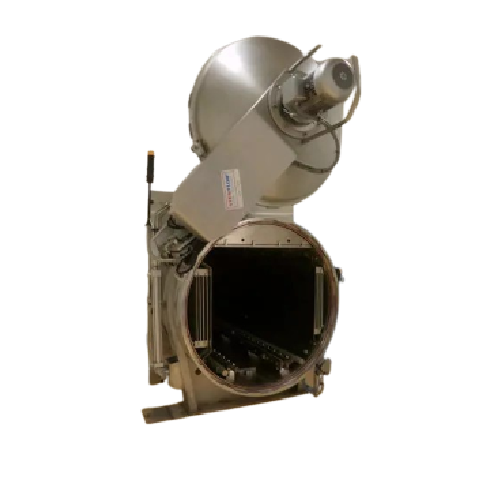

The Steristeam Air Steam Autoclave from Steriflow is engineered for precision in sterilizing pharmaceutical and biopharmaceutical products, such as vaccine vials, pre-filled syringes, and saline solution bags. Its unique cascade water system ensures uniform temperature distribution, reducing cycle time and energy usage. Equipped with a powerful fan for effective heat transfer, it incorporates MPI technology for real-time monitoring and control, facilitating seamless integration into high-speed, automated production lines. Pre-heating and cooling phases are efficiently managed with adjustable steam injection and water level control via a radar system. Made with durable materials like stainless steel to withstand corrosive environments, the autoclave meets GMP and FDA compliance standards, making it ideal for critical medical applications. Optional configurations and expert engineering support are available to meet specific operational needs. Cleaning is simplified with a built-in CIP system, ensuring minimal downtime and maintenance.

Benefits

  • Enhances process efficiency with precise temperature control for consistent sterilization.
  • Minimizes cycle time through a high-capacity cooling system and rapid heat transfer.
  • Complies with GMP and FDA standards, ensuring safe and regulatory-compliant operation.
  • Integrates seamlessly into automated production lines, reducing manual interference.
  • Provides reliable operation with robust construction and radar-controlled water levels.

General


Applications
Pharmaceutical solutions,Liquid formulations,Saline solution bags,Blister packs,Biopharmaceuticals
End products
Intravenous saline drip bags,Injectable solutions,Antibiotic blister packs,Pre-filled syringes,Oral liquid suspensions,Parenteral nutrition bags,Vaccine vials
Steps before
Filling,Pre-heating
Steps after
Pre-cooling,Final cooling,Drying,Packaging
Input ingredients
PVC pouches,solution,bags of saline solution,blister pack
Output ingredients
sterilized PVC pouches,sterilized saline solution bags,sterilized blister packs
Market info
Steriflow SAS is renowned for its expertise in manufacturing industrial sterilization and pasteurization equipment, particularly retorts, used in the food and pharmaceutical industries, recognized for reliability, innovation, and adherence to stringent safety and quality standards.

Technical Specifications


Standard sizes
1300 mm,1450 mm,1600 mm,1800 mm,2000 mm
Pre-heating temperature
100°C – 0.2 bar
Heating temperature
Set temperature up to 121°C
Automation
MPI control system
Cooling medium
Cascading recycled water
Cooling time
Adjustable based on cycle
Air pressure
Back pressure with compressed air
Cooling capacity
Powerful pump coupled with high flows
Fan operation
Continually monitored
Cycle time
Optimized for shorter durations
Temperature control
Radar level and MPI management

Operating Characteristics


Working mechanism
Direct-steam-injection
Integrated steps
Pre-heating,Heating,Pre-cooling,Final cooling
CIP/SIP
Not specified
Batch vs. continuous operation
Batch
Automation level
MPI Expert Control System
Cooling method
Cascading recycled water
Drying capability
Yes,at end of cycle

Material Compatibility


Biological compatibility
Yes
Cleanability
Suitable for sterile environments
Corrosive resistance (e.g. acids)
High resistance
Density/particle size
Not applicable

Physical Characteristics


Machine footprint
Varies by size (1300 mm to 2000 mm)
Basket size
Standard diameters (not specified but common sizes available)
Door type
Hydraulic cylinder automatic locking
Cooling system
Powerful cascading water

Custom Options


Control panel type
GAMP high performance user-friendly control panel
Customizable size
Standard sizes
Custom sizes available
Door locking mechanism
Hydraulic cylinder with mechanical block
Cooling system configuration
Cascading recycled water
Pressure programming
Back pressure with compressed air
Radar level control
Used in cooling phase
