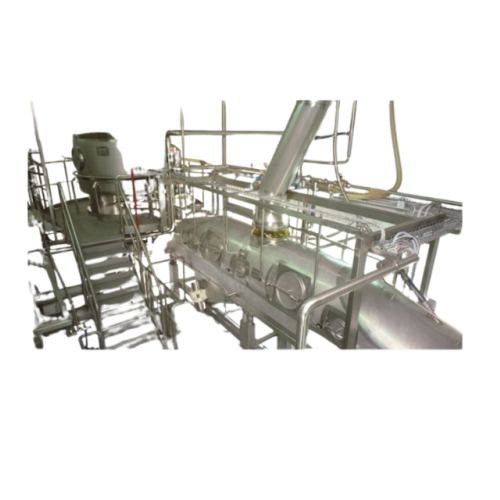

Spray bed dryer for agglomerated powder production

Efficiently transform liquid feedstock into consistent, dust-free powders with precise control over particle size, meeting the stringent demands of food, chemical, and pharmaceutical production.

Agglomerates and Dries Industrial Powders

The Spray Bed Dryers from Anhydro are engineered to provide precise drying and agglomeration for industries such as food, chemical, and pharmaceutical. These dryers operate by atomizing the product into a fine spray that mixes with recycled fines, optimizing particle size with secondary air flows and integrated fluid beds. Ideal for applications including protein powders, yeast products, and detergents, they ensure a dust-free, agglomerated output. With a capacity range from 5 kg/h to 10 t/h, they support continuous and high-speed operations. The Spray Bed Dryers offer high thermal efficiency and can be configured in open or closed cycle systems, using inert gas to minimize oxidation. Available in materials suited to various industry standards, they also feature CIP systems for ease of maintenance and meet compliance for hygienic operations in sensitive environments. Customizable designs ensure the dryers meet specific processing requirements, supported by engineering expertise from Anhydro.

Benefits

  • Enhances product quality with controlled particle size distribution.
  • Reduces operational costs through high thermal efficiency.
  • Minimizes contamination risks with integrated CIP systems.
  • Supports diverse industry needs with customizable configurations.
  • Optimizes energy use with closed cycle inert gas options.

General


Applications
Tanning agents,Plant extracts,Food ingredients,Yeast products,Dyestuffs,Agro chemicals,Detergent ingredients,Flavours and fragrances,Fertilizers
End products
Protein powders,Insecticides,Lavender oil,Urea fertilizer,Laundry detergent powder,Vanilla extract,Green tea extract,Leather tanning finish,Azo dyes,Baker's yeast
Steps before
Emulsification,Grinding,Heat Treatment,Mixing,Homogenization
Steps after
Packing,Coating,Sterilization,Tablet Pressing,Agglomeration
Input ingredients
heat-sensitive materials,food ingredients,yeast products,plant extracts,flavours,fragrances,agro chemicals,tanning agents,dyestuffs,fertilizers,detergent ingredients
Output ingredients
dust-free powders,agglomerated powders,dispersible powders,free-flowing powders
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Capacity
5 kg/h to 10 t/h
Drying Method
Atomization with fluid bed
Air Flow Type
Open and Closed Cycle Systems
Particle Size Control
Variable by operating conditions
Moisture Content Control
Customizable
Particle Agglomeration
Customizable by operating conditions
Automation
Customizable to requirements
CIP Capability
Straightforward CIP process
Thermal Efficiency
High thermal efficiency

Operating Characteristics


Operational mode
Open cycle / Closed cycle (low-Ox or inert gas)
Particle size control
Variable
Secondary drying stage
Integrated fluid bed
Atomization process
Fine spray
Agglomeration control
Adjustable
Airflow management
Primary and secondary airflows
Moisture control
Controlled discharge moisture content
Recycle streams
Fines reintroduced in atomization zone
Fluid bed drying
Second stage drying
Hygienic design
Designed for dust-free conditions

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Discharge method
Discharge from chamber
Compact footprint
Yes
Tank shape and size
Chamber with integral fluid bed

Custom Options


Design Type
Open cycle systems
Design Type
Closed cycle systems
Air Source
Atmospheric / Inert gas
Integration with Airflow System
Primary and Secondary Air Flow Control
Moisture Control
Adjustable Residual Moisture Level
Particle Size Control
Customizable Particle Size Distribution
Size Range
5 kg/h to 10 t/h
CIP Compatibility
Straightforward CIP
