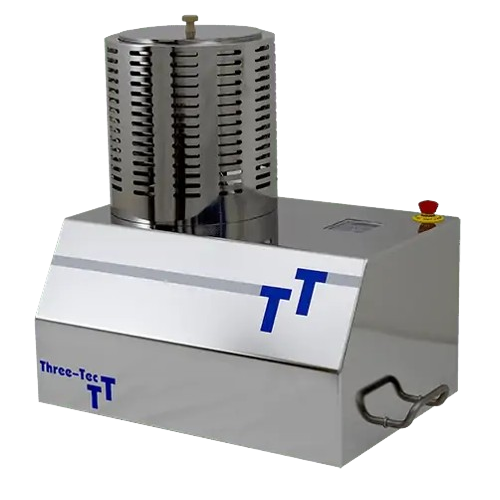

Spheronizer for extrudate strand reduction and rounding

Achieve precise pellet formation with a versatile system that customizes to batch sizes and temperature requirements, ensuring consistent rounding and size reduction of extrudate strands for seamless integration into your existing process.

Transforms Extrudate Strands into Uniform Pellets

The Spheronizer from Three-Tec is designed for pharmaceutical, nutraceutical, and chemical production lines, effectively turning extrudate strands into uniform pellets and spheres. It features modular construction with interchangeable friction discs and containers, allowing flexible adaptation to batch sizes and product specifications. The system operates with an adjustable speed range from 200 to 4,000 rpm for optimal pellet formation. It is equipped with an electric heater and connections for a temperature control unit, accommodating precise processing conditions. Ideal for creating pharmaceutical pellets and vitamins, it supports batch sizes from 5 to 5,000 grams, with expanded capabilities available. Touch panel controls and frequency converters ensure streamlined operation and integration into existing processes. Constructed for durability, it meets industry standards for maintaining product quality and compliance.

Benefits

  • Enhances product uniformity and quality for superior pellet formation.
  • Accommodates diverse production needs with modular, customizable configurations.
  • Reduces processing time with variable speed control up to 4,000 rpm.
  • Optimizes energy usage with precise temperature control features.
  • Simplifies operation and maintenance with user-friendly touch panel interface.

General


Applications
Supplements,Vitamins,Pharmaceutical tablets,Fine chemicals,Nutraceuticals,Pharmaceuticals
End products
Fine chemical granules,Pharmaceutical pellets,Supplement spheres,Nutraceutical pellets,Pellet cores for tablets,Vitamin spheres
Steps before
Extrusion
Steps after
Rounding,Cooling,Heating
Input ingredients
fine extrudate strands
Output ingredients
rounded extrudate strands,spheronized products
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Size (LxWxH)
450x300x450 mm
Friction disc diameter
144/150/250 mm
Fluting
4x4 mm
Speed
200 to 4,000 rpm
Temperature range
20 to 200 °C
Batch size
5 to 1,000 g (up to 5,000 g on request)
Voltage
100 to 240 VAC
Frequency
50/60 Hz
Heating power
300 to 500 W

Operating Characteristics


Working mechanism
Friction disc spheronization
Automation level
Touch panel / Frequency converter
Batch vs. continuous operation
Batch
Speed range
200 to 4,000 rpm
Flexible configuration
Modular concept for different batch sizes
Temperature control
Electric heater and temperature control unit connections

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
450x300x450 mm
Friction disc diameter
144/150/250 mm
Fluting size
4x4 mm
Batch size
5 to 1,000 g
Speed range
200 to 4,000 rpm
Temperature range
20 to 200 °C
Voltage
100 to 240 VAC
Frequency
50/60 Hz
Heating power
300 to 500 W

Custom Options


Control panel type
Integrated touch panel / Frequency converter
Container size options
5 to 5,000 grams (larger sizes on request)
Friction disc surface structures
Multiple options available
Heating/cooling capability
Electric heater with temperature control unit connections
