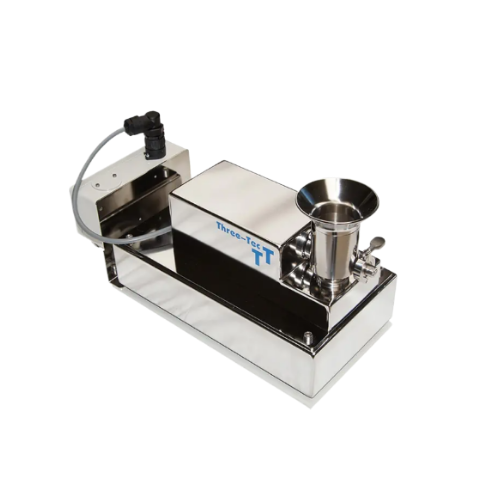

Small-scale twin-screw feeder for powder handling

Perfect for precision in lab environments, this small-scale feeder efficiently handles challenging powders that clump or bridge, ensuring consistent flow and accurate dosing in your formulations.

Feeds and Meters Powders Precisely

The ZD 5 FB from Three-Tec GmbH is a compact, flat-bottom twin-screw feeder designed to address the challenges of handling poorly flowing and free-flowing powders. Its stepper motor-driven mechanism ensures precise metering and consistent flow, making it ideal for pharmaceutical excipients, dietary supplements, and fine chemical mixtures. Operating with a throughput range of 0.003 to 1.45 liters per hour, this feeder caters to manual, bench-top, and high-speed operations. The ZD 5 FB integrates seamlessly into laboratory and production settings, offering a small footprint solution with a hopper volume of 0.1 liters. Compliance with industry standards ensures suitability for pharmaceutical, chemical, and food applications. Configurable settings and support for gravimetric systems enhance its versatility in demanding environments.

Benefits

  • Ensures precise powder delivery, minimizing waste and improving formulation consistency.
  • Compact design saves valuable lab and production space.
  • Reduces handling issues with difficult powders, enhancing operational efficiency.
  • Supports a wide range of powder types, increasing application flexibility.
  • Easy integration into existing systems without extensive modifications.

General


Applications
Chemicals,Supplements,Vitamins,Poorly flowing powders,Pet care products,Food additives,Nutraceuticals,Industrial powders,Free-flowing powders,Fine powders,Pharmaceutical powders
End products
Cat litter granules,Fine chemical mixtures,Chemical additives,Dog food supplements,Powdered seasoning blends,Powdered food enhancers,Pharmaceutical excipients,Protein powder formulations,Vitamin capsules,Dietary supplements
Steps before
Blending,Grinding,Mixing
Steps after
Mixing,Formulation,Packaging,Batch Processing
Input ingredients
poorly flowing powder,free-flowing powder,clumping powder,caking powder,bridging powder
Output ingredients
accurately fed powder,metered powder flow
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Throughput
0.003-1.45 l/h
Metering tool diameter
5 mm
Motor type
Stepper motor
Weight
≈ 6 kg with potentiometer,≈ 8 kg with logo! or S7-1500
Speed
1-500 min-1
Hopper volume
0.1 l (standard)

Operating Characteristics


Working mechanism
Twin-screw feeding
Batch vs. continuous operation
Continuous
Automation level
Stepper motor control
Clumping handling
Designed for poorly flowing powders
Speed control
1-500 min⁻¹
Throughput range
0.003-1.45 l/h

Material Compatibility


Abrasion resistance
Yes
Cleanability
High
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Bridging potential
High
Flow characteristics
Poorly flowing / Free-flowing
Clumping tendency
Yes
Feeding consistency
Uniform

Physical Characteristics


Machine footprint
Compact
Shape
Flat-bottom
Discharge method
Twin screw
Weight
≈ 6 kg with potentiometer,≈ 8 kg with logo! or S7-1500
Hopper volume
0.1 L

Custom Options


Control panel type
Potentiometer / Logo! / S7-1500
Integration possibilities
Customizable motor integration
Discharge method
Flat-bottom twin-screw
Customization Level
ET or customized motor options
