Small scale fermentor/bioreactor for multi-condition bioprocessing

Explore diverse fermentation conditions with precision control, ideal for small-scale bioprocessing applications that demand flexibility and accuracy in environments from R&D labs to pilot-scale setups.

Facilitates Small-Scale Cultivation and Fermentation

The Small Scale Fermentor/Bioreactor from Marubishi Bioengineering is a versatile culture device designed for R&D departments and laboratories focusing on biopharmaceuticals, nutraceuticals, and enzymes. Its autoclavable design accommodates small-scale, bench-top fermentation processes, making it ideal for multi-condition testing. The vessel, crafted from reinforced glass and stainless steel, ensures durability and compatibility with various chemical processes. This equipment allows precise control of fermentation conditions, including temperature, pH, and dissolved oxygen, utilizing a bottom drive stirring mechanism adjustable from 100 to 1000 rpm. Airflow ranges from 0.03 to 1.0 L/min, with pH adjustments via a peristaltic pump at 5.3 ml/min. Capable of real-time measurements and control, it integrates seamlessly into existing lab setups, enhancing productivity and efficiency. The unit supports the testing and cultivation of products like insulin, monoclonal antibodies, probiotics, and bioplastics. With multiple vessel sizes available, end-users can tailor the setup to specific needs, ensuring compliance with stringent industry standards.

Benefits

  • Enhances experimental flexibility with multi-condition testing capability.
  • Increases operational efficiency through precise control of fermentation parameters.
  • Minimizes cross-contamination risks with an autoclavable vessel.
  • Adapts to various project scales with customizable vessel sizes.
  • Supports sustainable practices by reducing energy consumption with optimized stirring and airflow controls.

General


Applications
Nutraceuticals,Biopharmaceuticals,Enzymes,Fermentation processes,Bioprocessing
End products
Ethanol,Bioplastics,Insulin,Monoclonal antibodies,Lactase,Omega-3 supplements,Probiotics
Steps before
Preparation,Calibration,Autoclaving,Assembly
Steps after
Sterilization in Place,Cleaning,Disassembly,Data Analysis
Input ingredients
cell culture,tissue culture,air flow,pH additives,stirring medium
Output ingredients
fermented product,bioreactor output,stirred output,temperature controlled product
Market info
Marubishi Bioengineering is known for its expertise in manufacturing high-quality bioreactors and fermentation systems for the biotechnology and pharmaceutical industries, reputed for their precision-engineering and customization to meet specific client requirements.

Technical Specifications


Fermentor vessel material
Reinforced glass and stainless steel
Stirring speed
100-1000 rpm
Air flow rate
0.03-1.0 L/min
PH control
Peristaltic pump (5.3 ml/min)
Temperature control range
10°C above supplied water - 50°C
Temperature control method
Heating by bottom end plate
DO control
Controllable by cascading over stirring speed or air flow rate change
Automation
Not only set point control but also cascade control from DO control loop
Volume

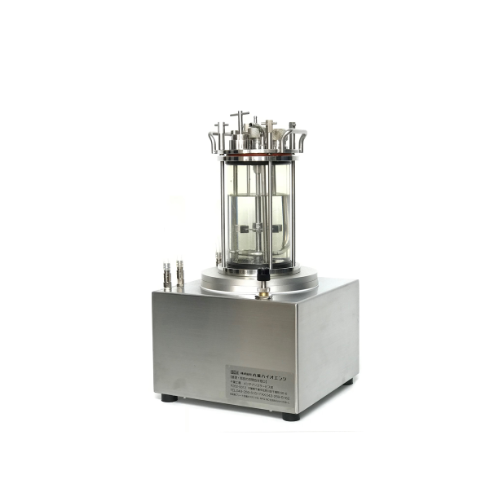

500 ml vessel (photo shown)
Other measurements
Temperature,stirring speed,air flow rate,and selection from pH,DO,foam,ORP,turbidity,and feed

Operating Characteristics


Stirring speed control
100-1000 rpm (Max.)
Temperature control method
Heating by bottom end plate
Air flow rate control
0.03–1.0 L/min
Automation level
Cascade control from DO control loop
Additives' feeding method
Peristaltic pump (5.3 ml/min)
Temperature control range
10°C above supplied water - 50°C
DO control method
Cascading over stirring speed or air flow rate change

Material Compatibility


Corrosive resistance (e.g. acids)
Reinforced glass and stainless steel

Physical Characteristics


Fermentor vessel material
Reinforced glass and stainless steel
Stirring range
100-1000 rpm
Vessel size
500 ml (other sizes available upon inquiry)
Air flow rate
0.03-1.0 L/min
Temperature control range
10°C above supplied water - 50°C

Custom Options


Fermentor vessel material
Reinforced glass and stainless steel
Stirring type
Bottom drive stirring
Stirring speed
100-1000 rpm
Control items
Temperature,stirring speed,air flow rate,pH,DO
Air flow rate
0.03~1.0 L/min
Temperature control range
10°C above supplied water - 50°C
Peristaltic pump feed rate
5.3 ml/min
Measurement items
Temperature,stirring speed,air flow rate (fixed) and two selections from pH,DO,foam,ORP,turbidity,and feed
Vessel size
Several sizes available,e.g.,500ml
