Single-use lab-scale bioreactor for upstream bioprocessing

Streamline your bioprocess development with a customizable, single-use bioreactor that reduces contamination risks and simplifies scale-up from lab to pilot production, enhancing flexibility and efficiency in cell culture, fermentation, and process development.

Cultivates and Scales-Up Cell Cultures

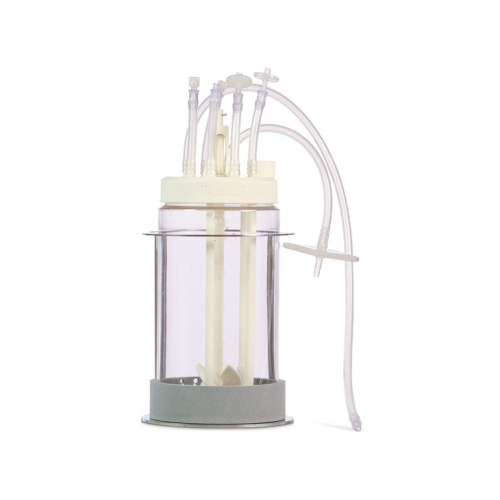

The Applikon AppliFlex ST from Getinge offers a versatile single-use stirred tank bioreactor designed for biopharmaceutical applications. This bioreactor stands out with its fully customizable design, incorporating 3D printing technology for tailored head plate configurations. It excels in cell line development and process scale-up for producing monoclonal antibodies, CAR-T cell therapies, and other biologics. Capable of cultivation, mixing, and fermentation processes, it offers working volumes of 500 mL to 15 L. With the use of single-use technology, it ensures sterility and minimizes contamination risk, effectively supporting batch, fed-batch, and perfusion operations. The bioreactor is constructed for easy integration into lab environments and complies with industry standards, promoting efficient, reproducible results in research and development settings.

Benefits

  • Enhances lab efficiency by minimizing setup time with pre-assembled, single-use design.
  • Reduces contamination risk, thanks to fully closed, sterile operation.
  • Supports rapid scale-up and process development with customizable configurations.
  • Increases experiment throughput with fast mixing times and adaptable impeller options.
  • Facilitates cost-effective research by eliminating cleaning and sterilization requirements.

General


Applications
Cell culture,Fermentation,Nutraceuticals,Biopharmaceuticals,Enzymes,Cell and gene therapy
End products
Recombinant proteins,Car-t cell therapies,Stem cells,Industrial enzymes,Insulin,Monoclonal antibodies,Probiotics
Steps before
Media preparation,Cell thawing,Inoculum preparation
Steps after
Harvesting,Purification,Storage
Input ingredients
cell cultures,microbial cultures,media,supplements,buffers,gases
Output ingredients
bioproducts,cultured cells,biomass,metabolites
Market info
Getinge is known for providing innovative healthcare and life sciences products, specializing in medical technology, infection control, surgical workflows, and critical care solutions. They maintain a strong reputation for quality and technological advancement in these sectors.

Technical Specifications


Capacity
500 mL,3 L,15 L
Impeller type
Marine / Rushton / Anchor / None / Hydrofoil / Helical
Sparger type
Pipe with Ø2mm hole / Open pipe / Sparger stone / Jet sparger / Porous sparger
Working temperature
5 – 45 °C
Storage temperature
-80 – 45 °C
Design pressure
0 – 0.5 barg / 0 – 0.1 barg
Mixing time
~3 seconds
Sterilization
>25 kGy Gamma irradiation
Sensors options
Single-use sensors or traditional multi-use sensors

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
CIP/SIP
Pre-sterilized
Cleaning method
Pre-sterilized

Material Compatibility


Biological compatibility
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High
Density/particle size
500 mL,3 L,15 L capacity

Physical Characteristics


Dimensions (h x Ø)
236 mm x 75 mm / 340 mm x 130 mm / 500 mm x 223 mm
Weight
0.2 kg (1 bioreactor) / 0.7 kg (1 bioreactor) / 1.7 kg (1 bioreactor)
Bottom
Dished bottom
Total volume
575 ml / 3 L / 15 L
Working volume
100 – 400 ml / 0.65 – 2.4 L / 3 - 12 L
H/D ratio total volume
2.0
H/D ratio working volume
1.33
Impeller type
Marine / Rushton / Anchor / None / Hydrofoil / Helical
Impeller diameter
28 mm / 52 mm / 89 mm
Sparger type
Pipe with Ø2mm hole / Open pipe / Sparger stone / Jet sparger / Porous sparger

Custom Options


Bioreactor Size
500 mL,3 L,15 L
Impeller Type
Marine / Rushton / Anchor / None / Hydrofoil / Helical
Sparger Type
Pipe with Ø2mm hole / Open pipe / Sparger stone / Jet sparger / Porous sparger
Head Plate Configuration
Fully customizable using 3D printing technology
Sensor Options
Single-use sensors or traditional multi-use sensors
