Single sheet former for fresh pasta production

Optimize your production line with a versatile machine designed to precisely form and fill fresh pasta sheets, ensuring consistent high-quality output for products like cappelletti and ravioli.

Forms and Shapes Fresh Pasta Sheets

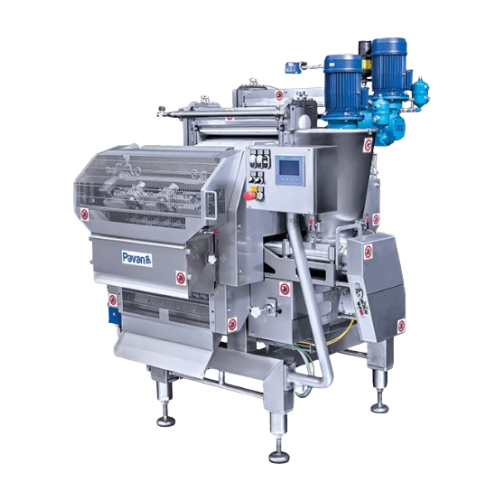

The GEA FreshPasta Former 1 C540B is a precision-engineered machine designed for efficient pasta production. It specializes in forming single-sheet cappelletti and ravioli, integrating seamlessly into continuous high-speed operations. With its double calibrating group and central thickness control, it ensures uniform pasta sheets. The automated dosing and cutting mechanisms optimize product yield and minimize waste. Capable of operating at speeds of up to 180 hits per minute, the machine is ideal for food manufacturers aiming to maintain high throughput. Its integration with upstream and downstream equipment, advanced HMI interface, and robust energy-efficient components make it a vital asset in modern pasta production lines. Additionally, a desmodromic camshaft and independent rack forks enable precise shaping and closure of pasta, reducing scrap and increasing product quality. The machine’s construction allows for easy cleaning and maintenance, offering reliable performance in demanding food processing environments.

Benefits

  • Increases production efficiency with high-speed forming and shaping capabilities.
  • Minimizes waste through precise dosing and cutting mechanisms.
  • Reduces setup time with easy integration into existing production lines.
  • Enhances product consistency with central control of sheet thickness.
  • Simplifies maintenance and cleaning, ensuring minimal operational downtime.

General


Applications
Breakfast cereals,Fresh pasta,Snacks
End products
Ravioli,Cappelletti
Steps before
Sheet preparation,Dough rolling
Steps after
Filled pasta shaping,Scrap removal,Knurling and closing
Input ingredients
pasta sheet,filling
Output ingredients
cappelletti,ravioli,cut pasta pieces
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Cruising speed
180 hit/min (ravioli)
Sheet width
540 mm
Final product thickness
0.5-1.5 mm
Automation
HMI interface with electrical panel
Filling accuracy
Synchronized alternative screw pump

Operating Characteristics


Working mechanism
Single sheet forming
Integrated steps
Sheet calibration,filling,cutting,closing
Automation level
HMI interface,PLC integration
Batch vs. continuous operation
Continuous
Filling method
Alternating screw pump
Final product thickness
0.5-1.5 mm
Sheet width
540 mm
Cruising speed
180 hit/min (ravioli)
Thickness control
Double calibrating group with central control
Filling synchronization
Synchronized filling without quality deterioration
Product closing
Knurling rollers and forks
Scrap management
Scrap cutter system
Moulding speed and precision
Desmodromic camshafts
Control panel type
HMI interface

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type
Single sheet cappelletti,ravioli

Physical Characteristics


Machine footprint
Not specified
Sheet width
540 mm
Final product thickness
0.5-1.5 mm
Control panel type
HMI interface
Compact footprint
Yes,designed for efficient space usage

Custom Options


HMI Interface Type
Standard
Mould Type
Changeable
Control Panel Location
Proximity to Machine
Filling System
Alternating Screw Pump
