Single rotary tablet press for small and medium-batch production

Optimize your tablet production with precision compression, intuitive control systems, and efficient processing capabilities, ensuring uniformity and reliability for various tablet formulations, from pharmaceuticals to nutraceuticals.

Compresses and Sorts Tablets Efficiently

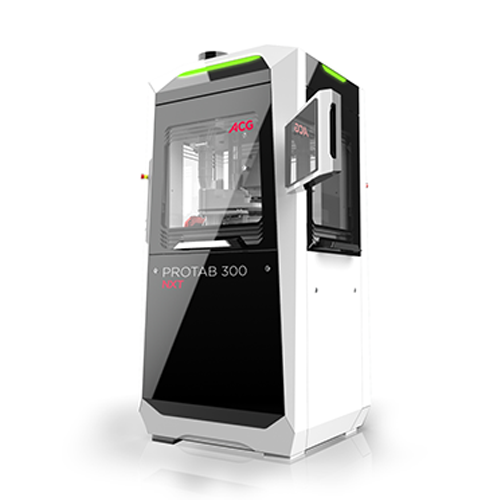

The PROTAB 300 from ACG is a single rotary tablet press designed to streamline the production of both pharmaceutical and nutraceutical products. Its operator-friendly interface and state-of-the-art features cater to small to medium batch production, simplifying the transition from R&D to scalable manufacturing. This equipment excels in compressing granules and powders into monolayer tablets, with applications ranging from ibuprofen to multivitamins. Capable of producing up to 216,000 tablets per hour, the PROTAB 300 ensures precision with its precise sorting and rejection systems, maintaining stringent specification criteria. It features interchangeable turrets for flexible tablet size production and a sophisticated feeder design that minimizes formulation waste. The machine supports GMP compliance and is engineered for quick changeovers and intuitive maintenance, allowing for efficient production line integration.

Benefits

  • Enhances scalability from R&D to full-scale production, reducing transition time.
  • Minimizes material waste with precise sorting and efficient feeder design.
  • Increases production efficiency with quick changeovers in under 30 minutes.
  • Maintains consistent tablet quality through advanced fault detection and uniform compression.
  • Supports flexible production of various tablet sizes, optimizing product versatility.

General


Applications
Nutraceuticals,Tablets,Mups (multiple-unit particulate systems),Pharmaceuticals
End products
Ibuprofen tablets,Multivitamin tablets,Folic acid tablets,Probiotic chewable tablets,Antacid tablets,Vitamin c supplements,Calcium citrate supplements,Aspirin tablets,Omega-3 fish oil tablets
Steps before
Granulation,Pelletisation,Formulation Testing
Steps after
Tablet Coating,Blister Packaging,Cartoning
Input ingredients
pharmaceutical granules,nutraceutical granules,multiple-unit particulate systems (MUPS),abrasive ingredients,corrosive ingredients,poor flow ingredients,pellets,powders
Output ingredients
monolayer tablets,uniform tablets,dependable dissolution profiles
Market info
ACG World is known for its expertise in manufacturing pharmaceutical and nutraceutical processing and packaging machinery, offering innovative equipment solutions and maintaining a strong reputation for quality and reliability in the global market.

Technical Specifications


Punch type
DB/BBB/BBS
Punch stations
21/27/34/36
Output
126,000/162,000/204,000/216,000 tablets/hr
Maximum tablet diameter
25 mm/16 mm(L=19 mm)/13 mm(L=14 mm)/11 mm

Operating Characteristics


Automation level
Manual / PLC
Batch vs. continuous operation
Batch
Changeover time
< 30 minutes
CIP/SIP
Not mentioned
Cleaning method
Manual
Energy efficiency
Not specified

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Compression Type
Monolayer

Physical Characteristics


Machine footprint
Compact design for R,D and small to medium batch production
Control panel type
Interactive dashboard
Turret design
Interchangeable turrets for flexibility
Toolless design
Lightweight assemblies
Feed/discharge method
Sophisticated feeder design

Custom Options


R,D turret combinations
Yes
Interchangeable turrets
Yes
Tablet size compression flexibility
Various sizes
Assembly design
Lightweight and toolless
Mechanical changeover time
Less than 30 minutes
Specialized kits for MUPS and challenging formulations
Available
