Servo type Pet bottle blowing molding solution

Optimize your production with high-speed PET bottle molding, designed to streamline packaging processes for various liquids while enhancing bottle precision and stability through advanced servo motor technology.

Blows and Molds PET Bottles Efficiently

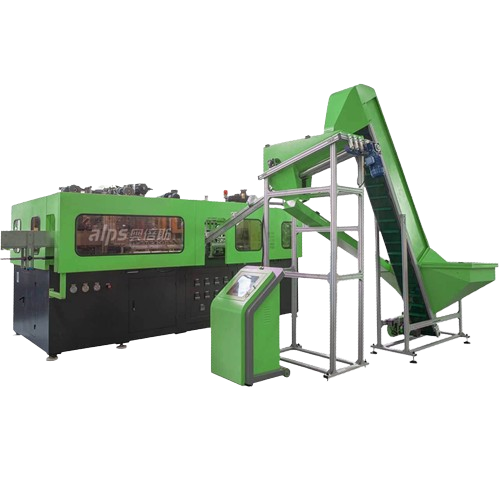

The Energy Save Servo Type PET Bottle Blowing Molding Machine EBM09 from Alps Machinery is engineered to elevate the PET bottle production process with its precise servo-driven operations. It efficiently blows and molds bottles across industries such as beverage, food, pharmaceuticals, and cosmetics, featuring a capacity to produce up to 12,000 bottles per hour. This machine integrates seamlessly into production lines with its automated servo motor technology, optimizing mold clamping and preform heating for enhanced energy efficiency and product consistency. Tailored for a wide range of bottle sizes from 100ml to 2L, it supports diverse end-products including water, juice, and cosmetic bottles. The EBM09 emphasizes robust energy conservation, utilizing a specialized heating design and servo-controlled stretching to minimize power consumption while ensuring superior bottle quality. With its scalable design, available in configurations of up to nine cavities, it adeptly adapts to high-volume manufacturing demands.

Benefits

  • Enhances production speed with servo-driven molding, achieving up to 12,000 bottles per hour.
  • Decreases operational costs by reducing power consumption through optimized heating systems.
  • Improves product consistency and quality with precise servo motor control.
  • Adapts to diverse production needs, accommodating a wide range of bottle sizes and shapes.
  • Seamlessly integrates into existing production lines, minimizing implementation time and complexity.

General


Applications
Beverage packaging,Food packaging,Cosmetics packaging,Pharmaceutical products,Edible oil
End products
Liquid soap containers,Vitamin supplement bottles,Wine bottles,Essential oil bottles,Cosmetic lotion bottles,Cooking oil bottles,Water bottles,Tea bottles,Carbonated drink bottles,Juice bottles,Shampoo bottles,Milk bottles
Steps before
Preform heating,Preform positioning
Steps after
Filling,Labeling,Packing
Input ingredients
PET preforms,electricity
Output ingredients
PET bottles,containers,water bottles,beverage bottles,juice bottles,oil bottles,cosmetic bottles
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
1 ton ~ 10 ton / hour
Automation
Automatic
Cycle time
N/A
Output capacity
6000 ~ 12000 Bottles Per hour
Bottle Sizes
100ml ~ 2L
Total power
70 kW ~ 110 kW
Main machine size
4.5x2.3x2.6m
Preform elevator size
2.8x2.8x3.2m
Weight
7000 kg ~ 11000 kg
Max Volume per cavity
700ml ~ 2000ml
Max. bottle diameter
68mm ~ 106mm
Neck diameter range
18mm ~ 38mm
Preform heating system
Adjustable lamp position and temperature
Mould Clamping System
Servo system

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Continuous
Energy efficiency
Energy Save Servo Type
Mould Clamping System
Servo system
Cleaning method
Easy maintain
Preform Heating Part
Adjustable lamp position and temperature

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
PET


CE marking
Yes
FDA materials
Compliant
ATEX certification
No

Physical Characteristics


Machine Footprint
4.5x2.3x2.6m (Model EB04B/EB06A),5.8x2.6x2.6m (Model EB06B/EB09A)
Preform Elevator Size
2.8x2.8x3.2m (Models EB04B/EB06A),4.5x3.5x3.5m (Models EB06B/EB09A)
Weight
7000kg (Model EB04B),7500kg (Model EB06A),9500kg (Model EB06B),11000kg (Model EB09A)
Cavities Quantity
4 cavities (Model EB04B),6 cavities (Models EB06A/EB06B),9 cavities (Model EB09A)
Max Bottle Volume
2000ml (Model EB04B/EB06B),700ml (Model EB06A/EB09A)
Max Bottle Diameter
106mm (Model EB04B/EB06B),68mm (Model EB06A/EB09A)
Machine Type
Automatic Bottle Blowing Machine (Servo motor type)

Custom Options


Control panel type
Servo motor control
Integration possibilities
Compatible with PET packaging systems
Servo motor type
High-speed blow molding
Clamping system
Servo-driven clamping
