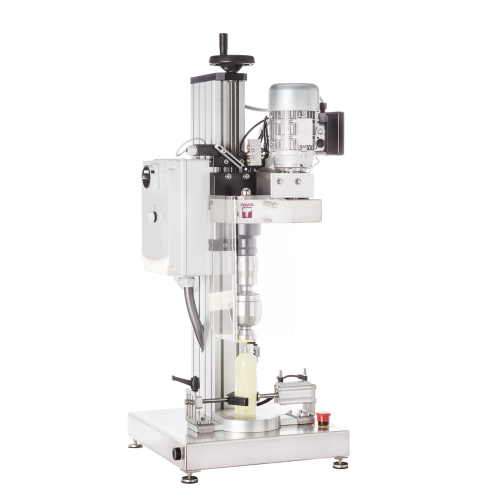

Semi-automatic capping machine for aluminium screw caps
Ensure consistent cap application across diverse container formats with a bench-top solution that offers precise control and adaptability, catering to specific sealing needs in the packaging line.
Caps and Seals Diverse Container Types
The Screwcap from Tenco is a versatile semi-automatic electric benchtop capping machine engineered for diverse applications across the beverage, cosmetic, food, chemical, and pharmaceutical industries. Its key feature is the electrically operated descending head that ensures reliable capping and sealing for a wide range of containers such as wine and olive oil bottles, jars of sauces and jams, and cosmetic containers for serums and creams. By utilizing interchangeable heads and adjustable torque settings, this machine can efficiently handle an array of cap formats, including pilferproof aluminum and twist-off caps. Capable of processing approximately 500 units per hour, it integrates seamlessly into semi-automated packaging lines, offering two-handed safety controls and flexibility in operation. Constructed with stainless steel for enhanced durability and compatibility with corrosive substances, it supports compliance with industry standards across multiple sectors.
Benefits
- Enhances flexibility by adapting to various cap types and sizes, reducing the need for multiple machines.
- Increases operational safety with dual-button controls, minimizing the risk of accidental activation.
- Improves production efficiency, achieving up to 500 capped units per hour.
- Lowers energy use with precisely controlled electric operation.
- Constructed from stainless steel for prolonged durability and resistance to corrosive substances.
- Applications
- Food,Beverages,Chemicals,Cosmetics,Pharmaceuticals
- End products
- Jarred jams,Wine bottles,Olive oil bottles,Nail polish bottles,Health supplements,Pharmaceutical liquids,Facial creams,Perfume bottles,Sanitizers,Jarred sauces,Pump dispensers,Cosmetic serums,Nasal sprays,Liqueur bottles
- Steps before
- Filling,Bottle preparation,Cap loading,Sample adjustment
- Steps after
- Labeling,Packing,Quality Inspection
- Input ingredients
- smooth aluminum pilferproof caps,twist off caps,plastic screw caps,dispenser caps,pump caps,spray caps,nail polish caps,nasal applicators,bottles,jars,PET containers
- Output ingredients
- sealed smooth aluminum pilferproof caps,sealed twist off caps,sealed plastic screw caps,sealed dispenser caps,sealed pump caps,sealed spray caps,sealed nail polish caps,sealed nasal applicators
- Market info
- Production Capacity
- 500 p/h
- Dimensions
- 450 x 450 x 1200 mm
- Weight
- 60 Kgs
- Voltage
- 230v – 50 Hz single-phase / 380v – 50 Hz three-phase / 110/120v – 60 Hz single-phase / 220v – 60 Hz single-phase / 480v – 60 Hz three-phase
- Minimum Bottle Height
- 30 mm
- Maximum Bottle Height
- 350 mm
- Cap Diameter
- 18 mm – 38 mm
- Operation Type
- Semi-automatic
- Capping Head Types
- 4-roller head,2-roller head,pressure head,magnetic clutch and twist off mandrel
- Material
- Stainless steel
- Working mechanism
- Semi-automatic with descending head
- Control system
- Two-handed operation
- Automation level
- Electric operation with manual control
- Changeover time
- Depends on configuration
- Batch vs. continuous operation
- Batch (semi-automatic)
- Energy efficiency
- Single-phase or three-phase electric
- Cleaning method
- Manual
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Cap material compatibility
- Aluminum / Plastic / Dispenser Caps
- Container type
- Glass / PET / Jars
- Machine footprint
- 450 x 450 x 1200 mm
- Machine weight
- 60 Kgs
- Minimum bottle height
- 30 mm
- Maximum bottle height
- 350 mm
- Cap size range
- 18 mm to 38 mm
- Operation type
- Bench-top
- Construction material
- Stainless steel
- Capping head type
- Descending head with 4 rollers
- Screw Cap Head Options
- 4-roller head,2-roller head
- Compatibility with Cap Types
- Aluminum caps,Twist off caps,Plastic screw caps
- Operation Control
- Two-handed operation
- Power Supply
- Single-phase,Three-phase
- Head Type for Caps
- Magnetic clutch head,Mechanical gripper
- Adjustable Capping Head Height
- Available for different bottle formats
- Cap Diameter Compatibility
- 18 mm to 38 mm,custom caps available on request
- Cap Applicator Type
- Dispenser,Pump,Spray
- Build Material
- Stainless steel descending head
- Packaging Compatibility
- Glass,PET containers
