Seed disinfection and rinsing system

Optimize your seed processing by ensuring thorough disinfection and rinsing, maintaining seed integrity while preparing for enhanced germination and growth.

Rinses, Centrifuges, and Dries Seeds

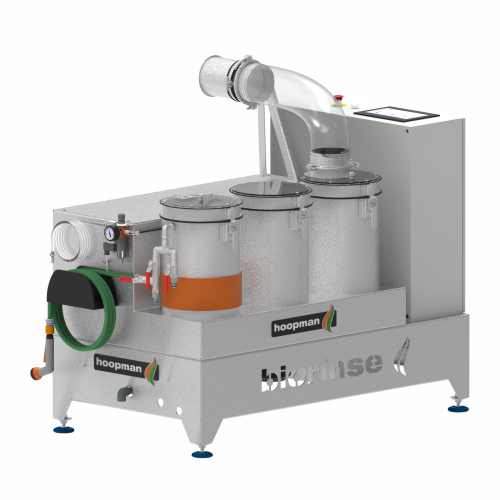

The BioRinse 5L from Hoopman Equipment & Engineering is a versatile seed treatment system engineered for batch processing in seed treatment facilities and agricultural businesses. This system specializes in hot water treatment, effectively rinsing, centrifuging, and drying seeds such as sunflower, corn, and tomatoes. The process begins with seeds in a 16L drum, which efficiently transitions from rinsing to centrifuge and drying stages, ensuring minimal handling and maintaining seed integrity. Ideal for applications in seed priming and disinfection, the BioRinse 5L integrates seamlessly into existing processing lines, providing enhanced efficiency with reduced manual intervention. Its PLC-controlled operations allow for customizable settings, supporting varied throughput demands. Constructed for durability, it features options to handle both solids and liquids, accommodating diverse seed types and processing conditions.

Benefits

  • Streamlines processing by maintaining seed integrity through minimal handling during rinse, centrifuge, and dry stages.
  • Enhances seed quality through effective disinfection and priming, crucial for improved germination rates.
  • Increases operational efficiency with seamless integration into existing processing lines.
  • Reduces labor requirements with automated PLC-controlled operations allowing for precise customization.
  • Accommodates a wide range of seed types, supporting diverse agricultural goals and crop types.

General


Applications
Seed disinfection,Agricultural products,Seed priming,Seed conditioning,Seeds
End products
Wheat seeds,Vegetable seeds,Tomato seeds,Grain seeds,Lettuce seeds,Corn seeds,Flower seeds,Cucumber seeds,Sunflower seeds,Herb seeds
Steps before
Seed Preparation,Seed Cleaning
Steps after
Centrifugation,Drying,Conditioning,Sorting,Coating,Packaging
Input ingredients
seeds,dry seeds
Output ingredients
dry seeds
Market info

Technical Specifications


Drum size
16 L
Processing Capacity
5 L of seeds
Drying Integration
Integrated centrifuge and dryer
System Functionality
Hot water treatment,rinsing,priming

Operating Characteristics


Working mechanism
Hot water treatment,rinsing,priming
Integrated steps
Rinsing,centrifuge,drying
Batch vs. continuous operation
Batch
Seed capacity
Up to 5L of seeds per drum

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
16L drum for up to 5L of seeds

Physical Characteristics


Drum size
16 L
Seed batch capacity
Up to 5 L
Discharge method
Integrated into centrifuge and dryer

Custom Options


Control panel type
Touchscreen / PLC / HMI
Integration possibilities
Centrifuge and Dryer System Integration
Drum size flexibility
16L drum for up to 5L of seeds
Process compatibility
Rinsing,Centrifuging,Drying
