Sealless top-entry industrial mixer

Engineered for diverse industrial applications, this sealless top-entry mixer offers superior hydraulic performance, ensuring continuous homogenization, emulsification, and heat transfer, effectively meeting the challenges of high-density and high-viscosity materials in open tanks under atmospheric pressure.

Mixes, Homogenizes, and Disperses Liquid/Solid Solutions

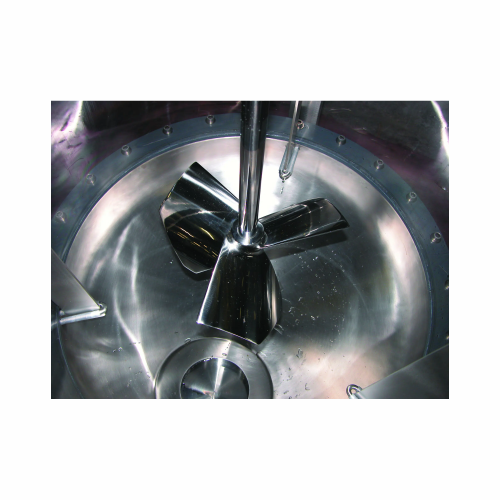

The LUMPP Sealless Top-Entry Industrial Mixer from HASLER Group is a cutting-edge solution engineered for demanding continuous processes. Specializing in liquid/solid and liquid/liquid dispersions, the mixer excels in applications such as water treatment, chemical manufacturing, and biofuel production. Its robust design features varied impeller profiles and axial turbines, allowing it to handle viscosities up to 1500 cps and densities of 1500 kg/m³.

The mixer operates efficiently across speeds of 10 to 1,500 rpm with motor powers ranging from 0.18 to 30 kW, providing customizable mixing solutions that integrate seamlessly into existing production lines. Energy efficiency is enhanced through optimized hydraulic performance, resulting in reduced power consumption. Constructed from materials like stainless steel and nickel alloys, it offers strong corrosion resistance, ensuring durability even in aggressive chemical environments.

ATEX compliance certifies its safe use in hazardous areas. Maintenance is simplified by its sealless design, reducing downtime compared to submerged mixers. With computer simulations and rheology audits available, customization is supported by engineering teams dedicated to optimizing your mixing processes and infrastructure.

Benefits

  • Ensures consistent product quality with continuous 24/7 operation.
  • Reduces maintenance needs due to a rugged, sealless design.
  • Optimizes energy usage with tailored hydraulic performance, cutting power costs.
  • Provides safety and compliance with ATEX certification for hazardous environments.
  • Customizable to specific process needs, enhancing operational flexibility.

General


Applications
Mineral processing,Water treatment,Starches,Fine polymers,Fine,Polymers,Dyes,Biodiesel,Inks,Stationery,Fertilisers,Silicone,Bioenergy,Paints,Inorganic chemistry,Ethanol,Hydrometallurgy,Speciality chemicals,Coating materials
End products
Zinc extraction solutions,Wastewater treatment chemicals,Oil-based paints,Npk fertilizers,Drinking water,Acrylic paints,Printing inks,Reactive dyes,Polyurethane dispersion,Copper extraction solutions,Corn starch,Rutile processing,Titanium dioxide,Polyethylene dispersion,Ammonium nitrate,Acid dyes,Silicone adhesives,Ethanol fuel blends,Silicone sealants,Potato starch,Biodiesel fuel blends
Steps before
Material Preparation,Reagent Preparation,Pre-mixing
Steps after
Quality Assurance,Packaging,Storage,Final Processing
Input ingredients
liquid/solid mixtures,miscible liquid mixtures,solid/liquid dispersions,liquid/liquid dispersions,heat transfers,storage materials
Output ingredients
homogeneous mixtures,emulsions,suspensions,dilutions,solutions
Market info
HASLER Group is known for manufacturing and supplying industrial engineered-to-order (ETO) equipment, specializing in mixing, filtration, and sealing solutions for various industries, with a reputation for quality and innovation in handling challenging process applications.

Technical Specifications


Motor power
0.18 to 30 kW
Speed
10 to 1,500 rpm
Shaft length
up to 10,000 mm
Impeller diameter
over 4,000 mm
Material Compatibility
Stainless steel (304L,316L,904L,duplex,super duplex),nickel alloy,carbon steel,Halar,Ebonite,butyl,other coatings
Density compatibility
up to 1500 kg/m3
Viscosity compatibility
up to 1500 cps
Compliance,Certifications
ATEX certified
Temperature compatibility
up to 100°C
Installation type
Top-entry,mounted on tank roof

Operating Characteristics


Operating Pressure
Atmospheric
Automation level
Manual / PLC controlled
Installation Type
Top-entry
Temperature Range
Up to 100°C
Continuous Operation
Yes
Impeller Profiles
Axial and radial turbines
Batch vs. continuous operation
Batch / Inline Continuous
Power Consumption
Energy Saving
Impeller Diameter
Over 4,000 mm

Material Compatibility


Density
Up to 1500 kg/m³
Viscosity
Up to 1500 cps
Corrosive resistance
Stainless steel,nickel alloy,Halar,Ebonite coatings
Operating temperature
Up to 100°C
Abrasive materials
Compatible

Physical Characteristics


Mounting method
via an inlet in the tank roof on a free-standing framework

Custom Options


Impeller Profiles
High-efficiency axial,radial turbines,curved blades,anchors
Material Compatibility
Stainless steel (304L,316L,904L,duplex and super duplex),nickel alloy,carbon steel,Halar,Ebonite,butyl or other coatings
Installation Method
Mounted via an inlet in the tank roof on a free-standing framework
Operation Mode
Continuous or batch processes
