Scraped surface heat exchangers for gelatine processing

Effortlessly manage the cooling, gelling, and extrusion of gelatine with these high-performance scraped surface heat exchangers—delivering precise temperature control and reduced processing times for enhanced product quality.

Cools, Gels, and Extrudes Gelatine Extract

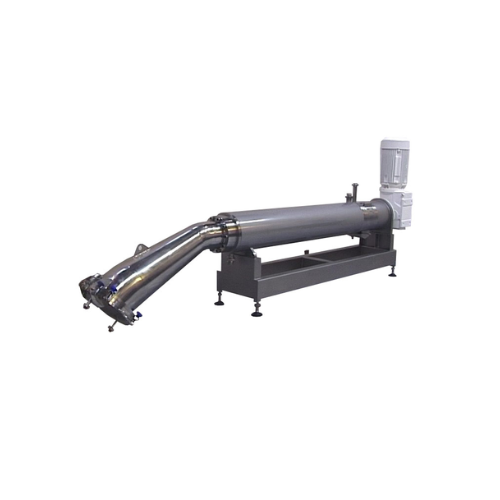

The Fixed Chemetator unit from TMCI Padovan is engineered to optimize gelatine production through precise cooling and gelling. This system employs scraped surface heat exchangers and inclined extrusion tubes, allowing for seamless transformation of concentrated gelatine extract into noodles ready for extrusion and drying. Perfectly suited for the gelatine, margarine, and confectionery industries, it enables the production of gelatine noodles and concentrated extract, while supporting high-speed continuous operations in liquid and slurry forms. The unit’s integration with perforated plates ensures optimal drying on a belt, reducing breakage and enhancing throughput efficiency. Constructed from high-grade materials for durability, this unit integrates effortlessly into existing production lines, boasting PLC controls for streamlined automation and reduced energy consumption. Customization options and engineering support ensure it meets specific operational needs, while maintaining easy maintenance with its low-friction components and accessible design.

Benefits

  • Enhances production efficiency by seamlessly integrating cooling, gelling, and extrusion processes.
  • Optimizes energy usage, reducing power consumption during continuous operations.
  • Minimizes product breakage with robust drying system, ensuring consistent quality.
  • Designed for easy maintenance, reducing operational downtime.
  • Offers customization to meet specific production line requirements.

General


Applications
Cocoa butter,Shortening,Fats,Gelatine,Bakery,Oils,Pastry,Margarine
End products
Concentrated gelatine extract,Bakery shortening,Pastry fat,Gelatine noodles,Shortening flakes,Cocoa butter blocks
Steps before
Concentration of gelatine extract
Steps after
Extrusion,Drying,Grinding
Input ingredients
concentrated gelatine extract
Output ingredients
gelatine noodles,gelatine extrusion,dried gelatine,final gelatine product
Market info

Technical Specifications


Cooling method
Scraped surface heat exchangers
Extrusion capability
Inclined extrusion tubes
Drying method
Perforated plates with drying belt
Function
Cooling and gelling of concentrated gelatine extract
Noodle formation
Perforated plates for gelatine noodles

Operating Characteristics


Working mechanism
Scraped surface heat exchangers
Product cooling and gelling
Gelatine extract
Integrated steps
Extrusion,drying,grinding
Extrusion method
Inclined extrusion tubes with perforate plates
Drying process
Drying belt

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Extrusion tubes
Inclined
Discharge method
Perforated plates
Drying system
Drying belt

Custom Options


Scraped Surface Heat Exchanger Configuration
Fixed
Extrusion Tube Position
Inclined
Perforated Plate Option
Yes
Drying Belt Inclusion
Yes
