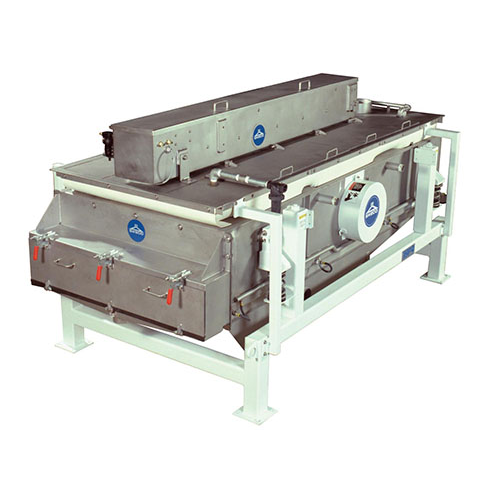

Round motion separator for dry and wet screening

Optimize your production line with an efficient solution for precise screening and separation of mixed solids and slurries, ensuring quality control and reduced waste in demanding processes.

Conveys, Screens, and Classifies Slurries and Solids

The SWECO RM Round Motion Rectangular Separator features a two-bearing vibratory system, creating a round motion at 1000-2200 RPM with up to 3½ Gs acceleration, efficiently handling both dry and wet materials. It excels in applications such as biofuels, ceramics, and pulp processing, producing fiber-free coated papers and precise mineral concentrates. This separator integrates seamlessly into existing lines with scalable throughput, offering flexibility with elliptical or linear motion options. Its modular design allows for easy cleaning and maintenance, featuring a hinged cover for simple screen changes. Constructed with corrosion-resistant materials, it supports long-term operations while meeting industry standards. Custom configurations and engineering support ensure the system aligns with specific operational needs.

Benefits

  • Enhances product quality by effectively removing fiber and contaminants.
  • Adapts to various processing requirements with customizable motion options.
  • Reduces operational downtime with easy-to-clean design and quick screen changes.
  • Lowers energy usage with efficient vibratory system operation.
  • Integrates smoothly with existing production lines for improved process flow.

General


Applications
Chemicals,Food,Ceramics,Powder coatings,Beverage,Pulp,Coating materials,Paper,Minerals,Plastics,Biofuel
End products
Powder-coated metals,Bioethanol,Return coatings,Food additives,Polymer granules,Ceramic tiles,Mineral concentrates,Fruit juices,Slurried coating ingredients,Chemical catalysts,Biodiesel,Fiber-free coated papers,Blended virgin coatings
Steps before
Grinding,Purification,Blending,Drying
Steps after
Screening,Filtering,Coating,Packing
Input ingredients
slurried coating ingredients,blended virgin coatings,return coatings,fiber contaminants,dry solids,low percentage oversized products,slurries
Output ingredients
filtered coatings,grit removal,fiber removal,classified dry solids,clean coated papers
Market info
Sweco is known for engineering consulting services, providing expertise in sustainable infrastructure, architecture, and engineering projects, with a strong reputation for delivering comprehensive solutions in urban planning, environmental services, and industrial ETO equipment design and consultancy.

Technical Specifications


Operating Speed
1000-2200 RPM
Acceleration
Up to 3½ Gs
Motion Type
Round Motion
Screening Type
Dry Screening / Horizontal Wet Scalping
Screen Inclination
Yes

Operating Characteristics


Working Mechanism
Round Motion/Rectangular
Vibration System
Two-bearing vibratory system
RPM Range
1000-2200 RPM
Acceleration
Up to 3½ Gs
Motion Control
Elliptical or Linear
Cleaning Method
CIP (Clean-in-Place)
Changeover Features
Hinged cover for easy screen change
Batch vs. Continuous Operation
Batch / Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Motion Type
Round Motion,Elliptical,Linear
Intended Use
Dry screening,Wet scalping,Filtration

Physical Characteristics


Machine Footprint
Varies depending on model
Shape
Rectangular
Inclination
Adjustable for dry or wet screening
Feed Method
Horizontal or inclined setup
Conveying Motion
Round Motion
Design
Hinged cover for easy screen changes
Acceleration
Up to 3½ Gs
RPM Range
1000-2200 RPM

Custom Options


Motion type
Elliptical / Linear / Round
Drive system
Two-bearing vibratory system
Screen change mechanism
Hinged cover
Design modularity
Modular design
Cleaning features
CIP (Clean-In-Place)
