Rotating sample divider for large bulk materials
Achieve precise, dust-free division and volume reduction of bulk materials effortlessly, ensuring representative samples for reproducible analysis in your lab or production environment.
Divides and Reduces Bulk Material Samples

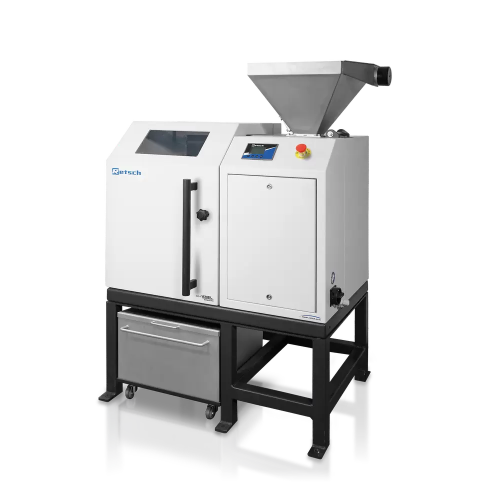

The Rotating Sample Divider PT 300 from Retsch GmbH revolutionizes sample management with its precision-engineered design, ensuring representative, dust-free division of large powder or granular batches. Its modular construction supports both batch-processing and continuous sampling, ideal for industries ranging from agriculture to pharmaceuticals. Operating at variable speeds between 18 and 53 rpm, it extracts multiple samples with ease or performs single-sample continuous processing with reject. Designed with a vibratory feeder and a digital interface, it ensures accurate, adaptable operation. The PT 300 can handle up to 60 liters of material and is built with a hopper that facilitates easy flow control and cleaning. It’s recognized for its strict adherence to international sampling standards, and its construction offers optional materials for enhanced resistance to aggressive or corrosive materials. The removable base frame allows operation height adjustments, making the PT 300 versatile and integrable with existing lab infrastructure.
Benefits
- Enhances accuracy and reproducibility of analytical results with precise sample division.
- Increases operational flexibility with configurable batch and continuous sampling modes.
- Simplifies maintenance and cleaning due to easy-access hopper and vibratory feeder design.
- Optimizes laboratory space with adjustable operation height and modular setup.
- Guarantees compliance with international sampling standards, ensuring reliable and unbiased sampling outcomes.
- Applications
- Food,Chemistry,Ceramics,Metallurgy,Construction materials,Recycling,Medicine,Geology,Biology,Glass,Environment,Plastics,Agriculture,Electronics,Engineering,Pharmaceuticals
- End products
- Biofertilizer compounds,Capsules,Pcb substrate materials,Chemical reagents,Plastic resins,Ceramic powder for tiles,Recycled plastic granules,Cement powder mix,Dairy powder,Glass powder for optical lenses,Mineral ore samples,Smelting alloy samples,Animal feed mix,Active pharmaceutical ingredients,Solar cell substrate materials
- Steps before
- Grinding,Pulverizing,Mixing,Homogenizing
- Steps after
- Analysis,Testing,Quality Control,Packaging
- Input ingredients
- powdered bulk materials,granular bulk materials,bulk materials,feed material size <= 30 mm
- Output ingredients
- representative sample,divided samples,reduced volume samples,batch-wise segments,continuous processing samples with reject
- Market info
- RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.
- Rotary speed
- 18 - 53 min-1
- Hopper volume
- up to 30 l / 60 l
- Material feed size
- <= 30 mm
- Number of divisions
- Batch processing
- Volume of reject collector
- 70 l
- Volume of segments for batch wise operation
- 30 l configuration
- 60 l configuration
- 6,000 ml / 7,500 ml / 10,000 / 15,000 ml
- Power consumption
- 500 VA
- W x H x D (dimensions)
- 30 l configuration
- 60 l configuration
- 1180 x 1620 x 750 mm
- Net weight
- 30 l configuration
- 60 l configuration
- ~ 230 kg
- Electrical supply data
- 100-120 V,50/60 Hz
- 200-240 V,50/60Hz
- Working mechanism
- Rotating sample divider with segmental buckets
- Batch vs. continuous operation
- Batch processing / Continuous sampling with reject
- Speed control
- Variable speed 18 - 53 rpm
- Flow control
- Hopper design ensures easy flow control
- Monitoring system
- Inspection window with light
- Cleaning method
- Push-fit feed chute for easy cleaning
- Operation height
- Removable base frame allows for variable height
- Sample extraction
- 4 - 10 samples for batch,1 sample for continuous
- Dust-Free Handling
- Yes
- Particle Size
- Up to 30 mm
- Representative Sample Handling
- Yes
- Bulk Materials
- Powdered/Granular
- Control panel type
- Digital
- Discharge method
- Vibratory feeder with push-fit feed chute
- Inspection window
- Yes,with light
- Base frame
- Removable for variable operation height
- Hopper volume
- Up to 30 l / 60 l
- Modular design
- Yes
- Variable operation height
- Removable base frame
- Speed adjustment
- 18 - 53 rpm
- Batch vs. continuous operation
- Both
- Number of divisions
- Varies per configuration
- Hopper design
- Ensures easy flow control and cleaning
- Sample extraction
- 4 - 10 samples for batch,1 for continuous
- Division module selection
- Determines dividing ratio and sample amount
