Rotary tablet press for small to medium scale production
Optimize your tablet production with a versatile rotary press, offering rapid changeover and high containment. Ideal for developing complex formulations and executing clinical trials, it enables seamless transition from research to small-scale continuous production, even accommodating bi-layer tablet compression needs.
Compresses Tablets and Bi-layer Dosage Forms

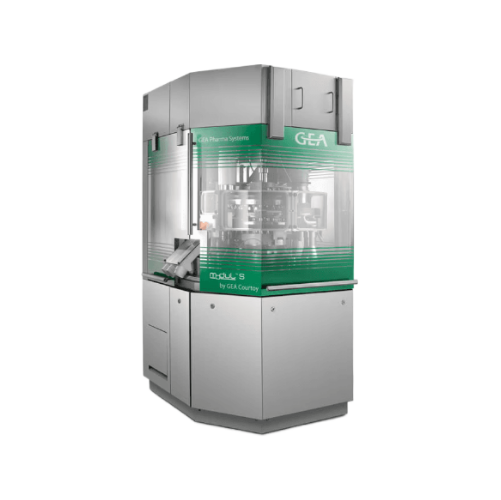

The MODUL P from GEA offers a versatile solution for pharmaceutical and nutraceutical tablet production, featuring a unique Exchangeable Compression Module (ECM) that minimizes downtime with rapid changeovers. It supports both single and bi-layer tablet compression, making it ideal for small to medium production runs with precision control. This machine excels in producing aspirin tablets, multivitamin bi-layer forms, and trial dosages with a production capacity of up to 244,800 tablets per hour.
Equipped with advanced dual control for compression modes, the MODUL P ensures consistent tablet hardness and weight accuracy. The system operates efficiently with clean and dry compressed air, requiring 7-8 bar pressure. Its integration capabilities allow seamless operation in continuous production lines, facilitated by the latest HMI for comprehensive process control.
Constructed for stringent pharmaceutical environments, it adheres to GMP standards and supports effective dust extraction to maintain a clean working area. Maintenance is streamlined by the ECM design, allowing for a swift, contamination-free cleaning process that optimizes operational uptime.
This rotary tablet press is engineered for adaptability, with tooling options including D, B, BB, and BBS, accommodating various tablet sizes and formats. It’s an ideal choice for environments prioritizing scalability and precise control, supported by GEA’s engineering expertise and customization options.
Benefits
- Enhances productivity with rapid 30-minute changeovers for multiple product batches.
- Provides precise tablet quality with advanced dual control for load and compression forces.
- Facilitates efficient bi-layer production, accommodating small-scale trials and lower raw material use.
- Ensures a clean operation environment with enclosed ECM design, reducing contamination risks.
- Streamlines operations with comprehensive HMI for remote monitoring and control.
- Applications
- Supplements,Pharmaceutical r,Pharmaceutical tablets,Nutraceuticals,D
- End products
- Clinical trial dosage forms,Herbal supplement tablets,Bi-layered multivitamin tablets,Calcium supplement tablets,Aspirin tablets,Omega-3 supplement tablets
- Steps before
- Granulation,Blending,Formulation Development
- Steps after
- Tablet Coating,Packing,Clinical Trials
- Input ingredients
- powder,bi-layer formulations,pharmaceutical powders
- Output ingredients
- single-layer tablets,bi-layer tablets,compressed tablets
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Max. tablet diameter
- 25.4 mm (D)
- 16 mm (B)
- 13 mm (BB)
- 11 mm (BBS)
- Punch body diameter
- 25.4 mm (D)
- 19 mm (B)
- 19 mm (BB)
- 19 mm (BBS)
- Outside die diameter
- 38.1 mm (D)
- 30.16 mm (B)
- 24.22 mm (BB)
- 22 mm (BBS)
- Die height
- 23.8 mm (D)
- 22.2 mm (B)
- 22.2 mm (BB)
- 22.2 mm (BBS)
- Number of stations
- 21 (D)
- 26 (B)
- 31 (BB)
- 34 (BBS)
- Max. fill depth
- 20 mm
- Top punch penetration
- 1 to 4 mm
- Max. pre-compression force
- 10 kN
- Max. main compression force
- 80 kN
- Max. output capacity
- 126,000 to 244,800 tablets/h
- Electrical requirements
- 3phase+PE – 380 / 400 / 415 / 460 / 480 V – 50Hz / 60Hz
- Compressed air requirements
- clean,dry / 7-8 bar / 500l/min
- Dust extraction requirements
- 150 m³/h at 15 mbar
- Machine dimensions,weight
- W = 1,030 mm x D = 1,555 mm x H = 2,170 mm – 2,500 kg
- Bi-layer Capability
- Continuous bi-layer tablet compression
- Bi-layer output capacity
- 37,800 to 81,600 tablets/h
- Working mechanism
- Rotary tablet press
- Batch vs. Continuous Operation
- Batch / Small-scale Continuous
- Changeover Time
- Extremely short
- CIP/SIP
- ECM Washable
- Automation Level
- Latest HMI for complete process control
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Production scale
- Small to medium scale
- Machine Dimensions
- W = 1.030 mm x D = 1.555 mm x H = 2.170 m
- Machine Weight
- 2,500 kg
- Compact Footprint
- Yes
- Tableting Capacity
- Up to 244,800 tablets/h
- Tooling Type
- D,B,BB,BBS
- Max Tablet Diameter
- 25.4 mm
- Control Panel Type
- Latest HMI for complete process control
- HMI Integration
- Seamless integration for lights-out operation
- Changeover Options
- Fast changeover with Exchange Compression Module (ECM)
- Bi-layer Capability
- Available with bi-layer ECM for continuous bi-layer tableting
- Compression Modes
- Force control,dual control,and advanced dual control
