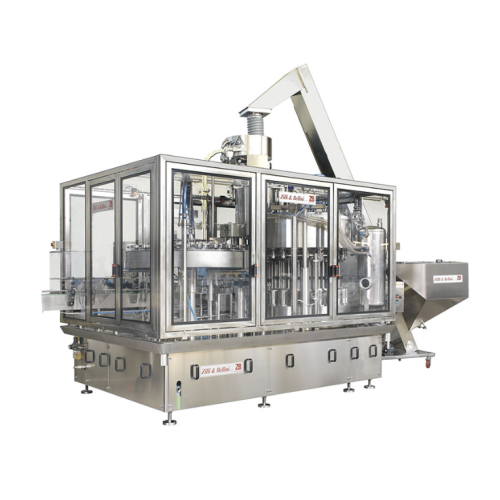

Rotary gravity fillers for diverse liquid products

Achieve precise filling and optimal packaging efficiency for a wide range of liquid products, from juices to condiments, with rotary gravity fillers designed to streamline your high-speed production lines.

Fills Liquid Products into Various Containers

The rotary gravity fillers from Zilli & Bellini offer a robust solution for high-speed liquid filling in the food and beverage industries. Specially designed for versatility, these machines handle a wide range of liquid products, such as pickle brine, iced tea, and ketchup bottles, by utilizing a rotary filling process that ensures consistent fill levels and minimizes product loss. With options to manage rigid round containers made from metal, glass, plastic, or composite materials, they can accommodate filling capacities up to 5 kg, making them suitable for diverse packaging environments.

Capable of continuous operation, these fillers achieve a throughput of up to 1800 containers per minute, depending on the product and container size. Automation is a key feature, with an optional Clean-In-Place (CIP) system that simplifies routine maintenance and ensures hygienic standards are met, reducing downtime and enhancing production efficiency.

The models vary by container path diameter, starting from 700 mm with 6-14 heads, up to 3450 mm with 84-128 heads, offering the flexibility to tailor configurations according to your production requirements. These machines integrate seamlessly into existing production lines, ensuring that you maintain a high throughput without compromising on precision. Ideal for food processing facilities and packaged goods producers, Zilli & Bellini’s rotary gravity fillers help enhance productivity and ensure quality consistency across your liquid packaging operations.

Benefits

  • Enhances production efficiency with high-speed filling up to 1800 containers per minute.
  • Minimizes product waste through precise fill levels and consistent operation.
  • Simplifies maintenance and ensures hygiene with optional Clean-In-Place system.
  • Provides flexibility to handle a variety of container materials and sizes.
  • Seamlessly integrates into existing lines, optimizing overall production flow.

General


Applications
Beverages,Sauces,Mineral water,Syrups,Oils,Condiments,Vinegars,Liquid food products,Juices
End products
Olive oil,Pickle brine,Spring water,Marmalade jars,Grape juice,Iced tea,Maple syrup,Chicken gravy,Balsamic vinegar,Ketchup bottles
Steps before
Purification,Pre-filling,Container Preparation
Steps after
Capping,Labeling,Packaging,Sterilization
Input ingredients
brine,flat drinks,gravy,juices,ketchup,mineral water,nectars,oil,syrup,tea,vinegar,jelly
Output ingredients
filled rigid round metal containers,filled glass containers,filled plastic containers,filled composite containers
Market info
Zilli & Bellini Italy is renowned for designing and manufacturing high-quality, engineered-to-order packaging machinery, specializing in filling and closing equipment for the food and beverage industry, with a strong reputation for innovation and reliability.

Technical Specifications


Filling capacity
Up to 5 Kg
Filling speed
10 to 1800 c.p.m.
Container type handled
Rigid round metal,glass,plastic,composite
Automatic Cleaning System
C.I.P. available
Container path diameter
700 mm to 3450 mm
Number of filling heads
6 to 128

Operating Characteristics


Working mechanism
Rotary gravity filling
Automation level
Optional PLC
Batch vs. continuous operation
Continuous
CIP/SIP
Automatic cleaning system (CIP)
Changeover time
Customizable

Material Compatibility


Corrosive resistance
Suitable for brine,vinegar,acidic products
Container materials
Metal,glass,plastic,composite
Food-grade compatibility
Yes
Cleaning compatibility
Supports CIP (Clean-in-Place)

Product type Characteristics


Container type
Metal / Glass / Plastic / Composite
Filling purpose
Liquids

Physical Characteristics


Container handling
Rigid round metal,glass,plastic,composite
Discharge method
Rotary gravity
Machine models
GA,GB,GC,GD,GE,GF,GG,GH,GI

Custom Options


Container handling capacity
Up to 5 Kg
Filling speed
10 to 1800 c.p.m.
Model flexibility
GA to GI models
Container compatibility
Metal,glass,plastic,composite
Automatic Cleaning System
Optional C.I.P. system
