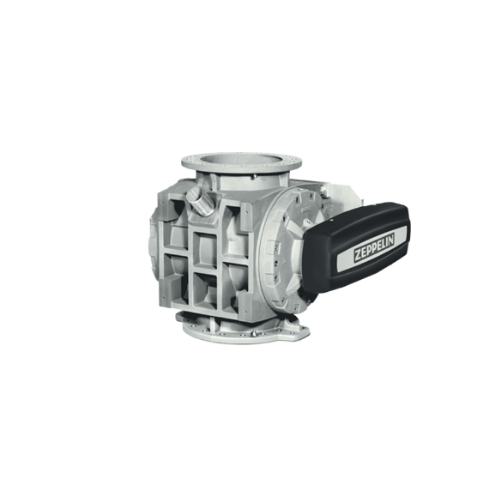

Rotary feeder for bulk material conveying

Enhance your material flow with precise metering and efficient conveying, ensuring optimal particle handling and reduced waste in your production processes.

Controls Bulk Material Flow and Distribution

The CFM and CFH Rotary Feeders from Zeppelin Systems are expertly designed for precision in metered discharge of pellets, powders, and bulk materials. Featuring a unique design, these feeders can operate under differential pressures up to 1.5 bar (g) while maintaining minimal gas leakage thanks to a 12-chamber rotor with optimal spacing. Widely used in the chemical, food, rubber, and tire industries, they effectively manage processes like bulk material distribution, feeding, and separation. With a high mechanical design pressure range of -1.0 to 10 bar (g) and temperature resistance from -20 to 90°C (up to 180°C as an option), these feeders ensure robust performance in continuous, high-speed operations. The equipment’s housing is available in high-quality cast aluminum or stainless steel, ensuring durability and corrosion resistance. Additional features like integrated leakage-gas nozzles, permanently lubricated external rolling bearings, and surface treatment make maintenance straightforward, while compliance with the EC Machinery Directive and ATEX guarantees adherence to safety standards. Customization options include rotor chambering, temperature control, and sealing gas protection, enabling tailored solutions for diverse industrial applications.

Benefits

  • Enhances process efficiency by ensuring precise material flow and distribution.
  • Minimizes operational costs with low maintenance requirements and durable materials.
  • Supports flexible integration with existing systems due to customizable configuration options.
  • Increases safety compliance with industry standards and certifications, including ATEX.
  • Offers robust performance in varying temperature and pressure conditions for versatile applications.

General


Applications
Tire industry materials,Bulk material,Pellets,Food industry materials,Plastics,Powders,Chemical materials,Rubber
End products
Polymer beads,Food additives,Tire manufacturing rubber mixtures,Powdered spices,Dust-free flour,Tire rubber compounds,Rubber granules,Food processing powders,Pharmaceutical powders,Plastic pellets,Chemical granules
Steps before
Material Loading,Pre-metering,Bulk Material Preparation
Steps after
Discharge to Conveying System,Pelletizing,Powder Conveyance
Input ingredients
pellets,powders,bulk material
Output ingredients
metered discharge,conveying discharge,bulk material discharge
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Differential pressure
up to 1.5 bar (g)
Mechanical design pressure
-1.0 to 10 bar (g)
Temperature resistance
-20 to 90°C,optionally up to 180°C
Material
High-quality cast aluminum,optionally stainless steel
Rotor
12-chamber,stainless steel
Size range
200–750
Flange joints
DIN 2501 PN10 FF or ANSI 150 lbs FF
Leakage-gas channel
Integrated
Sealing system
Radial,low-wear
Rotor chambering
Available
Beveled rotor
Available
Surface treatment
Available
Rotor frequency monitoring
Available
Temperature control
Process heating available

Operating Characteristics


Conveying method
Pneumatic conveying
Automation level
Customizable
Leakage control
Integrated leakage-gas channel
Pressure handling capacity
Up to 1.5 bar (g)
Temperature resistance
Mechanical resistance
Compatibility with bulk material
Powdered to pelleted materials
Gas leakage optimization
Minimal gas leakage due to customized spacing of rotor
Wear resistance
Durable,low-maintenance design
Maintenance requirement
Low
Material distribution efficiency
Gentle distribution at ideal filling factors
Handling differential pressure
Up to 1.5 bar (g),mechanical design pressure from -1.0 to 10 bar (g)

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
No
Cleanability
Yes
Corrosive resistance (e.g. acids)
Optional
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Bulk Material Handling
Powder,Pellet

Physical Characteristics


Machine footprint
Compact
Design
Standard-pressure rotary feeder
Discharge method
Metered discharge of pellets and powders
Rotor size
12-chamber
Material
Cast aluminum or stainless steel
Temperature resistance
-20 to 90°C,up to 180°C optional
Pressure handling
1.5 bar (g),mechanical design up to 10 bar (g)
Inlet and outlet geometry
Optimized for filling factors

Custom Options


Rotor Options
Beveled rotor,Rotor chambering
Sealing Options
Sealing gas to protect bearing,Low-wear sealing system
Monitoring Options
Rotary frequency monitoring and speed measurement
Temperature Control
Process heating and enclosure of housing
Material Options
High-quality cast aluminum,Stainless steel rotor and housing
Leakage Gas Management
Integrated leakage-gas nozzles,Leakage-gas container
Surface Treatment
Surface treatment and finishing
Design Standards
DIN 2501 PN10 FF or ANSI 150 lbs FF flange joints
Operating Pressure Options
-1.0 to 10 bar (g)
Temperature Options
-20 to 90°C,optionally up to 180°C
