Rigid tube filling and capping system for tablets
Streamline your tablet production with an efficient solution that precisely counts, fills, and caps rigid tubes at high speed, ensuring secure containment for pharmaceuticals and supplements.
Fills and Caps Rigid Tubes with Tablets

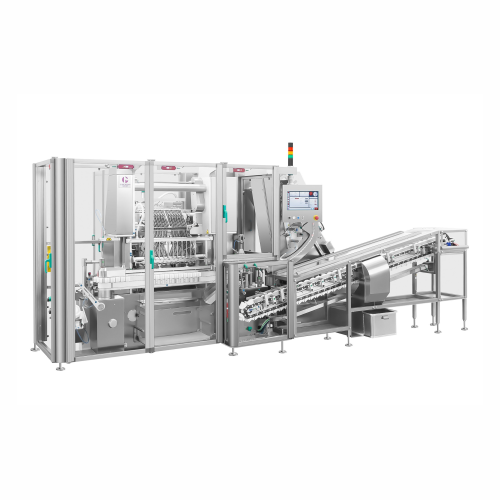

The MT1000 Rigid Tube Filling and Capping Machine from Marchesini Group offers a comprehensive solution for pharmaceutical and nutraceutical packaging needs. This machine excels in efficiently counting, filling, and capping tablets into rigid tubes, using a precise pick-and-place system that ensures consistent product handling. Designed for high-speed operations, it can process up to 1,000 tablets per minute, making it ideal for large-scale production lines. The MT1000 integrates seamlessly into existing setups with its compact tube feeding and synchro-dynamic transport movements, all controlled via an advanced PLC system. Constructed in compliance with GMP norms, its main parts are made from AISI304 stainless steel, ensuring durability and ease of cleaning. Ideal for a range of products, including aspirin, multivitamins, and herbal supplements, this machine ensures quality and reliability, supporting customization to suit specific production requirements.
Benefits
- Maximizes production efficiency by processing up to 1,000 tablets per minute.
- Ensures precise tablet handling and placement with a synchronized pick-and-place system.
- Reduces maintenance time with easily accessible components and GMP-compliant stainless steel construction.
- Integrates seamlessly into existing production lines, enhancing overall workflow.
- Supports diverse pharmaceutical and nutraceutical applications with adjustable tube and tablet parameters.
- Applications
- Nutraceuticals,Vitamins,Supplements,Pharmaceutical tablets
- End products
- Multivitamin gummies,Omega-3 fish oil capsules,Herbal supplement capsules,Probiotic tablets,Vitamin c supplements,Calcium tablets,Vitamin d pills,Iron tablets,Aspirin tablets,Glucosamine chondroitin tablets
- Steps before
- Tablet counting,Tablet inspection,Tube preparation
- Steps after
- Tube labeling,Final packaging,Quality control
- Input ingredients
- tablets,plastic rigid tubes,metallic rigid tubes,pressure caps
- Output ingredients
- filled tubes,capped tubes,tablets in tubes
- Market info
- Marchesini is renowned for manufacturing high-quality packaging machinery for the pharmaceutical and cosmetics industries, offering innovative, customized solutions with advanced automation and technology.
- Tube Diameter
- 16 to 40 mm
- Tube Length
- 60 to 160 mm
- Tablets Diameter
- 14 to 35 mm
- Tablets Thickness
- 3 to 8 mm
- Cap Diameter
- 18 to 44 mm
- Cap Collar Height
- 1 to 10 mm
- Output Speed
- Up to 1,000 tablets/min
- Compliance
- GMP norms
- Structure Type
- Balcony type (cantilever)
- Material
- AISI304 stainless steel panels
- Pick,Place System
- For tablet insertion
- Working Mechanism
- Pick,Place System
- Tube Handling
- Synchro-dynamic Movements
- Compliance with GMP Norms
- Yes
- Compact Tube Feeding
- Extremely Compact
- Automation Level
- Automatic
- Batch vs. Continuous Operation
- Batch
- Final Tube Closure
- Pressure Cap
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Tube Diameter
- 16 to 40 mm
- Tube Length
- 60 to 160 mm
- Tablet Diameter
- 14 to 35 mm
- Tablet Thickness
- 3 to 8 mm
- Cap Diameter
- 18 to 44 mm
- Cap Collar Height
- 1 to 10 mm
- GMP Compliance
- Yes
- Machine Type
- Automatic rigid tubes filling and closing machine
- Material Construction
- Steel,Aluminium with AISI304 stainless steel panels
- Machine Design
- Balcony type (cantilever)
- Footprint
- Extremely compact tube feeding
- Compact footprint
- Extremely compact tube feeding
- Control panel type
- HMI with PLC control
- Discharge method
- Bucket conveyor at machine outfeed
- Construction material
- Steel,aluminium,AISI304 stainless steel panels
- Balcony type design
- Yes
