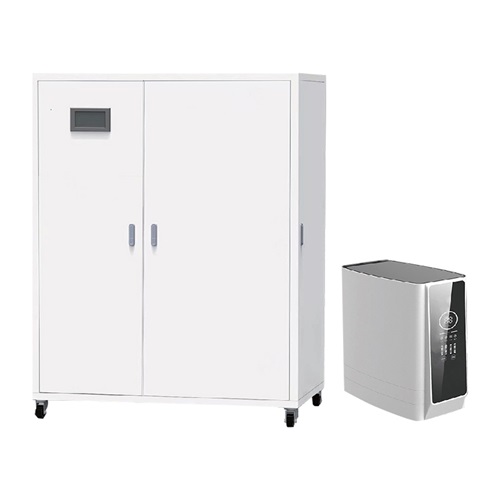

Reverse osmosis water treatment system for medical device cleaning
Ensure purity and compliance by seamlessly integrating advanced water filtration and purification into your medical device cleaning process, enhancing both efficiency and safety.
Purifies and Conditions Water for Medical Use
The Reverse Osmosis Water Treatment System from Shinva is engineered to ensure high purity and safety in medical and pharmaceutical applications. Utilizing advanced reverse osmosis technology, this system achieves an ion removal rate of 99% and effectively eliminates over 99.9% of endotoxins and bacteria, ensuring clean water supply for use in surgical instruments, pharmaceutical vials, and more. Designed for seamless integration into your existing production line, it features PLC control with a touch screen interface, allowing for precise monitoring of water quality, flow, and pressure. With a 70% recovery rate, it is efficient in both space and resource utilization. Equipped with automatic flushing and regeneration capabilities, it minimizes downtime and maintenance, complying with stringent GMP standards. The system supports a wide range of operations, from filtration to disinfection, making it adaptable for hospital, laboratory, and industrial environments. Additionally, its robust design includes dry-run, high, and low-pressure protection to ensure operational reliability.
Benefits
- Ensures high water purity with 99% ion removal, reducing contamination risks in medical applications.
- Enhances operational efficiency with automated flushing, minimizing manual intervention and downtime.
- Provides reliable performance with integrated protections, safeguarding against pressure and flow disruptions.
- Adaptable to stringent pharmaceutical standards with full GMP compliance.
- Supports efficient resource use with a 70% water recovery rate, optimizing sustainability efforts.
- Applications
- Medical devices,Dental equipment,Laboratory equipment,Sterilization equipment,Surgical instruments,Pharmaceuticals
- End products
- Scalpels,Iv bags,Ultrasonic cleaning tanks,Laboratory glassware,Orthodontic tools,Hemodialysis machines,Endoscopes,Surgical masks,Pharmaceutical vials,Steam sterilizers,Dental drills
- Steps before
- Purification,Pretreatment,Ion Removal
- Steps after
- Water Quality Monitoring,Sterilization,Disinfection
- Input ingredients
- municipal water supply,water pressure,raw water hardness,power supply voltage,power frequency
- Output ingredients
- cleaned medical devices,pure water,low conductivity water,endotoxin-free water,bacteria-free water
- Market info
- Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.
- Ion removal rate
- ≥99%
- Recovery
- 70%
- Electrical conductivity
- ≤15μS/cm
- Endotoxin,bacteria removal rate
- ≥99.9%
- Raw water hardness
- ≤8 mmol/L
- Water temperature range
- 5–35°C
- Water pressure
- 0.2–0.4 MPa
- Ambient temperature
- 5–40°C
- Humidity
- <85% RH
- Power supply voltage
- AC380V
- Power frequency
- 50 Hz ±1 Hz
- Automation Level
- PLC + touch screen fully automatic control
- Power and Water Saving Function
- Yes
- Emergency Solutions
- Perfect emergency solutions to maintain online
- Reverse Osmosis Host
- Automatic pulse flushing function
- Pretreatment System
- Automatic flushing and regeneration
- Protection Features
- Dry-run protection,high and low pressure protection
- Water Supply Control
- Unified,sub-circuit constant pressure
- Monitoring and Control
- Multi-functional monitoring to online display and control water quality,flow,pressure
- Consumables Service Life Prompting
- Automatic prompting of consumables service life
- Control panel type
- PLC + touch screen
- Control panel type
- PLC + touch screen
- Automation level
- Fully automatic control
- Monitoring system
- Multi-functional monitoring
- Emergency solutions
- Perfect emergency solutions to maintain online
- Water supply configuration
- Unified,sub-circuit constant pressure
