Regenerative vacuum blower for pneumatic conveying

Optimize your material handling with a compact regenerative vacuum blower, designed for efficient pneumatic conveying and continuous, oil-less dry operation in diverse production environments.

Facilitates Vacuum and Pneumatic Conveying

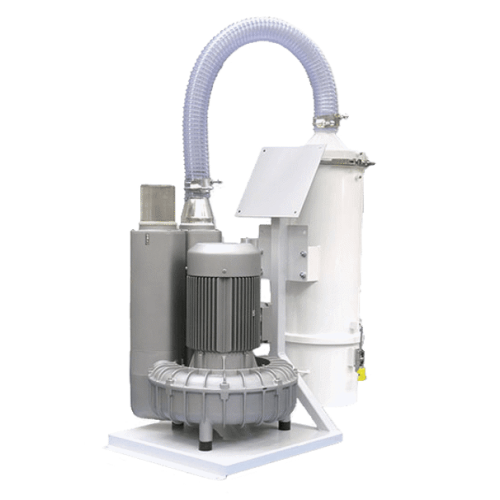

The Regenerative Vacuum Blower from Coperion K-Tron is engineered for efficient vacuum and pneumatic conveying across diverse industries such as plastics, chemicals, and food production. This compact unit features a high-performance, oil-less operation with a direct drive motor, ensuring low maintenance and continuous operation. The blower comes preconfigured with integrated safeguards, including a relief valve and discharge silencer, to protect equipment longevity and ensure quieter operation. It supports demanding applications like material handling and filtration, effectively processing products like polyethylene pellets and recycled PET flakes with precision. Built with a rugged, TEFC motor suited for Class 1, Division 2 environments, it ensures reliable performance in challenging conditions. The unit is OSHA and CE compliant, offering compatibility with existing systems while providing customization options for specific operational needs.

Benefits

  • Enhances operational efficiency with continuous, oil-less operation.
  • Lowers maintenance demands through direct drive motor, eliminating belts or gears.
  • Ensures safe and quiet operation with integrated relief valve and discharge silencer.
  • Adapts to hazardous environments with TEFC motor for Class 1, Division 2 compliance.
  • Offers versatile application in multiple industries, from plastics to pharmaceuticals.

General


Applications
Chemicals,Food,Nonwovens,Pet food,Plastics recycling,Plastics,Minerals,Pharmaceuticals
End products
Polyethylene pellets,Polyurethane foam,Geotextile fabric,Cement powder,Vitamin tablets,Recycled pet flakes,Dry pet kibble
Steps before
Material Handling,Feeding
Steps after
Pneumatic Conveying,Packaging
Input ingredients
Output ingredients
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Conveying Line Size
38 mm (1.5 in) to 76 mm (3 in)
Blower Type
Regenerative
Motor Type
TEFC motor suitable for Class 1,Division 2 applications
Design
Compact with integrated accessories
Operation Mode
Continuous
Vibration Control
Vibration mounting pads
Safety Features
Integrated relief valve
Noise Control
Discharge silencer
Drive Type
Direct drive motor (no belts or gears)
Maintenance Requirement
Low maintenance
Operation Standards
OSHA and CE compliant
Operation Type
Oil-less dry operation
Breaker Valve Type
Air-actuated

Operating Characteristics


Vibration control
Vibration mounting pads
Automation level
Integrated
Noise level
Quiet operation
Cooling method
Cool operation
Safety features
Integrated relief valve
Maintenance requirement
Low maintenance
Operation type
Direct drive motor (no belts or gears)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Predesigned range from 38 mm (1.5 in) to 76 mm (3 in) conveying line
Heavy-duty blower base
Yes
Discharge method
Discharge silencer included

Custom Options


Base type
Heavy-duty blower base
Blower type
Regenerative vacuum blower
Size range
38 mm (1.5 in) to 76 mm (3 in) conveying line
Operation type
Continuous basis
