Purified water storage tank for pharmaceutical use

Ensure the integrity of your pharmaceutical formulations with precision-engineered purified water storage, optimized for maintaining water quality and purity during critical production stages.

Stores and Monitors Purified Water

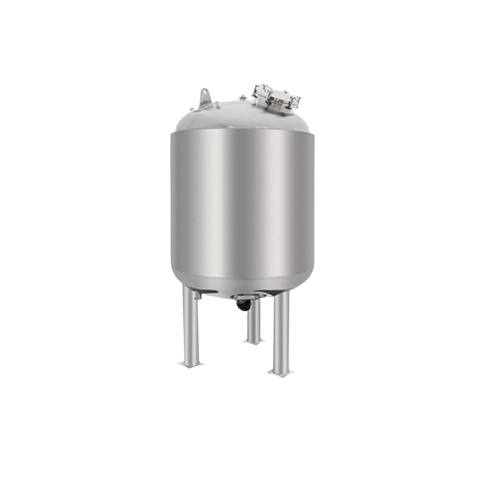

The PW Tank, manufactured by AUSTAR, is engineered to ensure the precise storage and monitoring of purified water essential for pharmaceutical and biopharmaceutical production lines. Crafted from 316L stainless steel for contact surfaces and 304 stainless steel for structural components, it offers robust corrosion resistance and meets ASME BPE standards. The tank’s insulation is asbestos and chlorine-free, encased in a stainless steel shell for efficient thermal management. Equipped with a comprehensive set of accessories, including a manway, vent filter, and diaphragm pressure gauge, it facilitates accurate temperature and level monitoring. Suitable for applications within vaccine production, injectable medications, and pharmaceutical-grade water processing, the PW Tank seamlessly integrates into existing systems, enabling both manual and continuous operations. With compliance to stringent GMP guidelines, this equipment offers the reliability required in high-stakes environments while allowing for customization to meet specific operational needs.

Benefits

  • Ensures high-purity water storage for critical pharmaceutical production.
  • Minimizes temperature fluctuations with efficient insulation, maintaining water quality.
  • Integrates seamlessly into existing systems, optimizing operational workflows.
  • Enhances compliance with GMP standards, ensuring regulatory adherence.
  • Customizable design accommodates specific process requirements, improving versatility.

General


Applications
Liquid formulations,Bioprocess equipment,Nutraceuticals,Sterile filling,Biopharmaceuticals,Pharmaceutical process contamination control,Purified water equipment,Pharmaceuticals
End products
Pharmaceutical-grade water,Purified water for injections,Protein drugs,Vaccines,Liquid dietary supplements,Insulin,Injectable medications,Chemotherapy drugs,Oral liquid supplements,Vitamin drinks,Eye drops,Buffered saline for iv,Sterile saline solutions,Probiotics
Steps before
Water Purification,Water Storage
Steps after
Distribution,Temperature Control,Level Monitoring
Input ingredients
purified water,insulation material free of asbestos and chlorine
Output ingredients
purified water
Market info
Austar is known for specializing in the design and manufacture of engineered-to-order industrial equipment, particularly in the pharmaceutical and biotechnology sectors, offering solutions that focus on quality, innovation, and meeting specific customer requirements.

Technical Specifications


Material
316L stainless steel (contact parts),304 stainless steel (non-contact parts)
Insulation Type
Asbestos and chlorine-free insulation
Insulation Cover
304 stainless steel shell
Surface Finish
Electro-polished (inner),Hairline finished (outer)
Access Points
Manhole
Pressure Type
Atmospheric or Pressurized vessels
Accessories
Manway,vent filter,spray ball
Sensors
Temperature sensor,level sensor
Safety Features
Bursting disc,sanitary safety valve
Design Compliance
ASME BPE Standards
Interface Type
N/A connection to avoid dead legs
Support Legs
AISI 304 stainless steel
Sight Glass
With lamp
Vent Filter
Absolute vent filter with electrically heating
Water Feeding Valve
Sanitary valve for purified water feeding
Discharge Valve
Automatic sanitary valve for tank discharge
Temperature Probe
With Thermowell

Operating Characteristics


Insulation type
Asbestos and chlorine-free
Pressure vessel options
Atmospheric / Pressurized
Material finish
Inner wall electro-polished,outer wall hairline finished
Automation level
Includes sensors and gauges for automation
Interface type
N/A connection to avoid dead legs
Temperature control
Temperature sensor included
Level monitoring
Level sensor included
Pressure monitoring
Diaphragm pressure gauge with pressure transmitter

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Cleanability
Yes
Biological compatibility
Yes

Product type Characteristics


Container Type
PW Tank

Physical Characteristics


Tank shape
Cylindrical
Tank size
Customizable
Material
Inner
Outer
304 stainless steel
Insulation layer
Asbestos and chlorine-free
Surface finish
Inner
Interface type
N/A connection
Support structure
AISI 304 stainless steel legs

Custom Options


Vessel Type
Atmospheric / Pressurized
Material for PW Contact
316L Stainless Steel
Outer Material
304 Stainless Steel
Insulation Material
Free of Asbestos and Chlorine
Surface Finish - Inner Wall
Electro-polished
Surface Finish - Outer Wall
Hairline Finished
N/A Connection
Dead Leg Avoidance
Accessories
Manhole,Vent Filter,Spray Ball,Diaphragm Pressure Gauge,Temperature Sensor,Level Sensor,Bursting Disc
Valves
Sanitary Valve for Purified Water Feeding / Automatic Sanitary Valve for Tank Discharge
Support
AISI 304 Stainless Steel Support Legs
Sight Glass
With Lamp
Rupture Disc
Or Sanitary Safety Valve
Vent Filter
Absolute with Electrical Heating and Provision for Integrity Test
