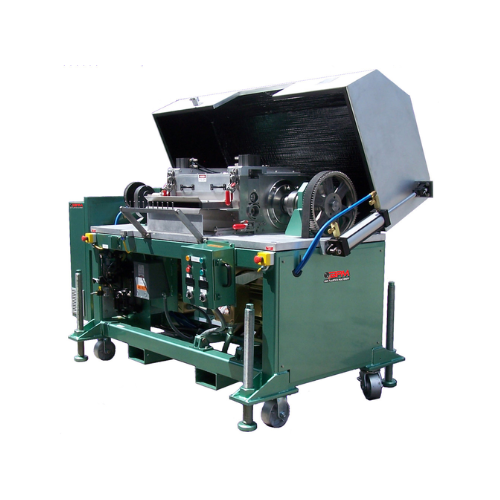

Pultrusion pelletizer for long glass fiber thermoplastics
Engineered to tackle the challenges of cutting and pelletizing tough, resilient thermoplastics, this device ensures precise and efficient production of high-quality fiber-reinforced pellets, vital for automotive and durable goods manufacturers seeking to enhance material performance.
Pelletizes and Cuts Long Glass Fiber Thermoplastics
The “P” Series Pultrusion Pelletizer from Bay Plastics Machinery offers an engineered solution for precision cutting and pelletizing of tough, pultruded long glass fiber thermoplastics. This equipment is specifically designed with optimal cutting geometry to deliver clean cuts and minimal wear, using an innovative isolation coupler that maintains a consistent cutting gap. Capable of handling abrasive applications, the pelletizer produces high-quality fiber-reinforced pellets suitable for automotive composite parts, durable plastic components, and high-performance sporting goods. The machine is configurable with dual flywheels that increase rotor inertia and can cut lengths from 1/4” to 2” at high speeds. It integrates seamlessly into production lines, featuring a slide-on front end for easy cleaning and a soundproof design. The equipment comes with options for precise gap adjustment, varied feedroll coverings for high-temperature applications, and customizable discharge configurations. Engineered for continuous and high-speed operations in the plastics and composites industries, the “P” Series ensures robust performance, energy efficiency, and low maintenance demands with available carbide-coated wear parts.
Benefits
- Ensures precise and consistent pellet quality for demanding applications.
- Minimizes wear and maintenance costs with innovative isolation coupler and durable cutting components.
- Supports high-speed production environments with customizable configurations.
- Enhances operational efficiency through quick and easy cleaning and maintenance access.
- Optimizes energy use with advanced motor control systems.
- Applications
- Pultruded long glass fiber thermoplastics,Abrasive applications,Tough thermoplastics,Resilient plastics
- End products
- Abrasion-resistant parts,Automotive composite parts,Durable plastic components,High-performance sporting goods,Fiber-reinforced thermoplastic pellets
- Steps before
- Material Preparation,Pultrusion Process,Strand Feeding
- Steps after
- Quality Inspection,Packaging,Cooling,Storage
- Input ingredients
- pultruded strands,long glass fiber thermoplastics,resilient plastics,soft or pliable strands
- Output ingredients
- pellets,long glass fiber pellets
- Market info
- Bay Plastics Machinery is known for manufacturing pelletizing equipment and systems, recognized for their innovation and quality in the plastics industry. They specialize in developing customized solutions for polymer processing, focusing on efficiency and reliability.
- Cutting Lengths
- 1/4” up to 2”
- Pellet Length Adjustment
- Digital,on the fly
- Standard Wear Parts
- Carbide-coated or chrome plated
- Soundproofing
- Available
- Model Sizes
- 8”,12”,20”
- Rotor Diameter
- 8 inch / 12 inch
- Strand Velocity
- Up to 300 FPM / Up to 450 FPM
- Strand Capacity
- Up to 150 strands
- Cutting Width
- 4 inch to 32 inch
- Isolation Coupler
- Yes,reduces deflection
- Gap Precision
- .0005 inch between blades
- Dual Flywheels
- Available
- Dual Drive with Feedroll Option
- Standard
- Slide-on Front End
- For easy cleaning
- Optional Features
- Extra Horse Power,Special Coverings on Feedroll
- Propietary BDS on Upper Feedroll
- For high temperature/abrasive applications
- Belt Pullers
- Available
- Rotor Types
- AXP,BXP,CXP models
- Cut length
- 1/4” up to 2”
- Isolation coupler
- Prevents rotor deflection
- Power consumption
- Minimal
- Soundproofing
- Available
- Dual flywheels
- Increases rotor inertia
- Precision gap adjustment
- Push/pull bolts
- Digital pellet length control
- On-the-fly adjustment
- Cleaning method
- Slide-on front end
- Drive system
- Dual Drive with feedroll option
- Belt pullers
- Optional
- Feedroll option
- Recommended for pliable strands
- Abrasion resistance
- Yes
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- Long glass fiber thermoplastics
- Cleanability
- Easy to clean
- Machine Footprint
- Size available upon request
- Cutting Width
- 4 inch (100 mm) to 32 inch (800 mm)
- Rotor Diameter
- 8 inch or 12 inch
- Strand Capacity
- Up to 150 strands with varying diameter
- Discharge Method
- Custom discharge chute configurations
- Model Size
- 8”,12”,20” models
- Slide-on Front End
- For easy cleaning and maintenance
- Control Panel Type
- Digital with adjustment features
- Feedroll Option
- Included or not included as per requirement
- Soundproofing
- Standard included with power lift available
- Cut lengths
- 1/4” up to 2”
- Model sizes
- 8”,12”,20”
- Feedroll option
- Dual Drive standard with feedroll
- Operational configuration
- Available with or without pull rolls
- Soundproofing
- With or without power lift
- Optional features
- Extra Horse Power,Special Coverings on Upper Feedroll,Special Surfaces and Coatings on Lower Feedroll,Custom Heights,Custom Discharge Chute Configurations,Work Platforms,Belt Pullers
