Premix system for alcoholic beverage preparation

Enhance your beverage production with precision mixing and carbonation, ensuring consistent flavor and quality in wine coolers and aromatized wines while maintaining efficient integration into your existing production line.

Mixes and Carbonates Wine and Beverages

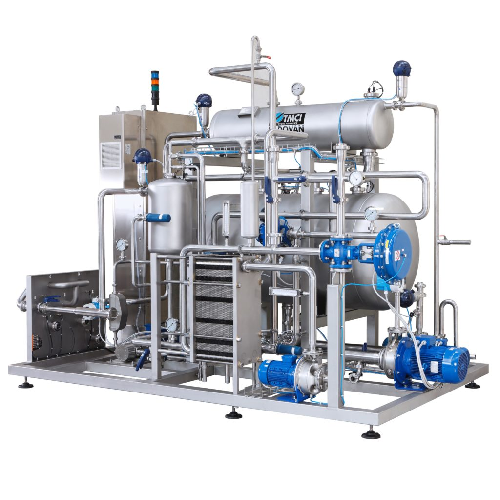

The Premix Unit from TMCI Padovan is designed to optimize the preparation of flavored wine coolers and aromatized wines. It employs precise magnetic or mass flow meters for consistent syrup and wine mixing, followed by a static mixer and CO2 injection for balanced carbonation. With a compact monoblock configuration, it offers seamless integration into existing processing lines via digital or BUS & NET signals, ensuring continuous and automated operation. Equipped with a PLC for recipe selection, it supports high-speed production while maintaining energy efficiency. The unit can be equipped with on-line CO2 and Brix degree control upon request, and is constructed using durable materials to withstand the demands of the beverage industry.

Benefits

  • Ensures consistent beverage quality with precise mixing and carbonation controls.
  • Streamlines production with seamless integration into existing processing lines.
  • Enhances operational efficiency with automated, PLC-controlled recipe management.
  • Reduces energy usage through optimized flow metering systems.
  • Adaptable to various beverage types, expanding product offerings.

General


Applications
Grape juices,Wine coolers,Alcoholic beverages,Wine
End products
Flavored wine coolers,Aromatized wines,Grape soda,Spumante,Sangria
Steps before
Wine selection,Aromatized syrup preparation
Steps after
Filling,CIP (Clean-in-Place) process
Input ingredients
wine,aromatized syrup,CO2
Output ingredients
wine cooler drink,carbonated wine beverage
Market info
Padovan (Omnia Technologies) is known for engineering advanced industrial filtration and process equipment, particularly in the beverage, chemical, and food industries, with a reputation for innovation, quality, and tailored solutions in engineered-to-order equipment.

Technical Specifications


Mixing type
Magnetic / Mass flow control
CO2 injection method
Carbonation group with CO2 Injector
Configuration
Monoblock compact configuration
Control system
PLC for recipe selection
On-line control
CO2,Brix degree control

Operating Characteristics


Working mechanism
Mixing,carbonating
Integrated steps
Mixing,carbonation,CO2 injection
Automation level
PLC-controlled
CIP/SIP
CIP interface available
Batch vs. continuous operation
Inline Continuous

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
High,due to CIP integration
Corrosive resistance (e.g. acids)
High
Density/particle size
0.5–1.5 g/cm³ (Liquid compatible)

Product type Characteristics


Carbonation level
Low/Medium/High
Container size and shape compatibility
Various

Physical Characteristics


Compact footprint
Monoblock configuration
Control panel type
PLC-controlled
Discharge method
Integrated filler delivery,CIP return pump

Custom Options


Control panel type
PLC
Integration possibilities
Digital or BUS,NET signals
Compact footprint
Monoblock configuration
