Preform inspection system for blown containers

Ensure defect-free blown containers and minimize line jams with a robust preform inspection system designed to detect even the slightest imperfections during the blow molding phase.

Inspects Preforms for Quality Assurance

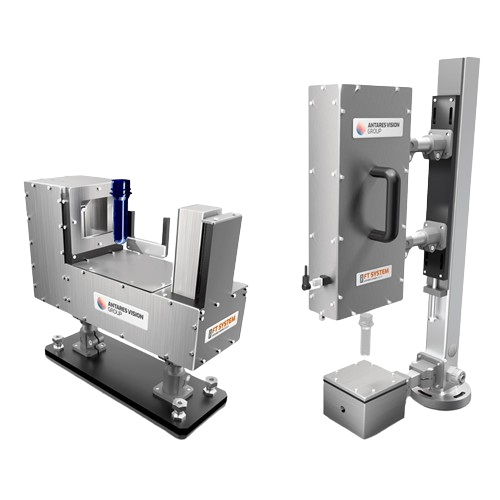

The QP 700 from Antares Vision Group is an advanced preform inspection system engineered for the beverage industry. Specialized for high-speed blow molding operations, it ensures that each resin preform is defect-free, which minimizes production rejects and line jams. Utilizing artificial vision technology, the system inspects key preform areas including neck finishes and bases for defects such as deformations and foreign bodies. This scalable system can be integrated directly into blow molding modules or used as a stand-alone unit, providing flexibility for various line setups. The QP 700 offers a user-friendly interface and supports IoT capabilities for enhanced data analysis and production record storage. Designed to boost production efficiency, it also aids in reducing operational costs by ensuring the high-quality output of water, soft drink, and sports drink containers. The durable construction allows it to function reliably in continuous, automated environments, making it a robust choice for manufacturers and packaging companies.

Benefits

  • Minimizes production line jams by ensuring defect-free preforms.
  • Reduces operational costs through decreased reject rates.
  • Enhances production efficiency by maintaining high-quality container output.
  • Integrates seamlessly into existing blow molding processes for easy adaptation.
  • Improves data-driven decision-making with IoT capabilities and production record analysis.

General


Applications
Resin preforms,Pet bottles,Bottled beverages,Beverage containers
End products
Iced tea bottles,Sports drink bottles,Sparkling water bottles,Energy drink bottles,Mineral water bottles,Juice containers,Water bottles,Flavored water bottles,Soft drink bottles
Steps before
Preform manufacturing,Injection molding
Steps after
Blow molding,Final product inspection,Packaging
Input ingredients
preforms,neck finish,neck ring,base and internal walls,external walls
Output ingredients
blown containers,quality-assured preforms,production records,inspection data
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Neck finish inspection
Ovalization,deformations,foreign bodies,blemishes
Neck ring inspection
Dimensional defects,blemishes
Base and internal walls inspection
Foreign bodies,pinholes,breaking in the injection point,bubbles or deformations
External walls inspection
Foreign bodies,deformations,pinholes,bubbles
Artificial vision
Yes
Data analysis capability
Yes
Production records and pictures storage
Yes
Expandable inspections
Yes
User interface
User-friendly

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Product type Characteristics


Container type
Preforms

Physical Characteristics


Machine footprint
Customizable
Module integration
Inside blow moulding module or stand-alone
Control panel type
User-friendly interface

Custom Options


Integration possibilities
Modules integrated inside the blow moulding module / Stand-alone machine
Interface type
User-friendly interface
Expandable options
Expandable with other inspections
Data storage and analysis
Production records and pictures storage / Data analysis
Inspection configurations
Different configurations depending on the preform type and line
