Powder liquid blender for food processing
Achieve seamless integration of solids into liquids with precision-engineered blending technology, ideal for creating consistent formulations in high-stakes production environments.
Mixes and Blends Solid-Liquid Ingredients

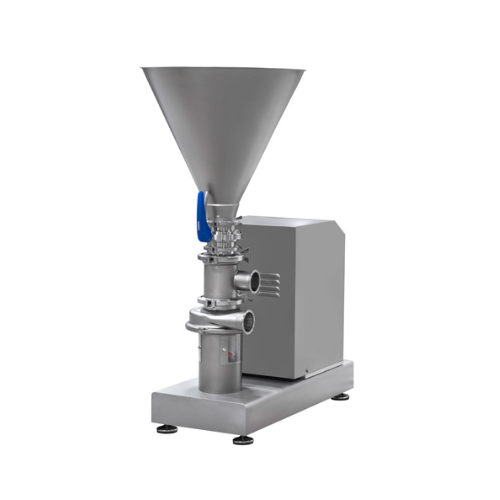

The M-226/M-440 Blender from INOXPA is engineered for precision in mixing and blending solid-liquid mixtures across diverse industries. Functioning with a vertically-mounted centrifugal pump impeller, it ensures homogeneous mixing without atmospheric contamination. This blender is essential in producing end-products such as infant formula and syrups, tailoring to the food, cosmetic, and pharmaceutical sectors. Its capacity allows for high-speed, continuous operations. The sanitary design features easy disassembly via Clamp connections, facilitating cleaning without dismantling. Crafted from AISI 316L with EPDM gaskets, it maintains corrosion resistance, meeting rigorous industry standards. Options for ATEX compliance and automated controls further enhance its versatility, integrating seamlessly into existing production lines. The M-226/M-440’s capacity for customization supports varied production requirements with engineering consultations available to optimize your setup.
Benefits
- Ensures consistent product quality through controlled, homogeneous mixing.
- Minimizes labor involvement with easy-to-use, automated operations.
- Reduces energy usage with an efficient centrifugal impeller system.
- Adapts to stringent sanitary requirements with a hygienic design.
- Facilitates quick maintenance and cleaning, reducing production downtimes.
- Applications
- Powdered milk,Brines,Cosmetics,Chemical solutions,Pharmaceutical ingredients,Syrups,Solid-liquid mixtures
- End products
- Saline brine,Infant formula,Pancake syrup,Cough syrup,Shampoo,Foundation creams,Cleaning solutions
- Steps before
- Purification,Drying,Emulsification,Powdered milk reconstitution preparation
- Steps after
- Sterilization,Packing,Brine preparation,Syrup formulation,Coating
- Input ingredients
- powdered milk,solids,liquids,syrups,brines
- Output ingredients
- solid-liquid mixtures,reconstituted milk,prepared syrups,prepared brines
- Market info
- INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.
- Operating principle
- Centrifugal pump impeller system
- Mixing type
- Solid-liquid mixing
- Automation
- Pneumatically actuated valve
- Surface finish (internal)
- Ra ≤ 0.8 μm
- Hopper angle
- 40º for M-226,50º for M-440
- Materials in contact with product
- AISI 316L
- Seal type
- Sanitary single mechanical seal
- Surface finish (external)
- Matt
- Recirculation
- Possible
- Assembly method
- Clamp connections
- Cleaning method
- Without disassembly
- Valve type
- Automated
- Options
- ATEX version,Double flushed seal
- Material Recirculation
- Yes
- Automation level
- Pneumatically actuated
- Batch vs. continuous operation
- Inline / Batch
- CIP process compatibility
- Included
- Sanitary design
- Yes
- Suction control
- Valve Control at Hopper
- Vacuum creation
- High-speed liquid flow
- Mixing method
- Centrifugal pump impeller
- Easy assembly and disassembly
- Clamp connections
- ATEX option available
- Yes
- Density/particle size
- 0.5–2.5 g/cm³
- Mixing capability
- Solids in liquids
- Machine footprint
- Compact
- Casing material
- AISI 316L
- Surface finish
- Internal Bright polish Ra ≤ 0.8 μm / External Matt
- Hopper angle
- 40º for M-226 / 50º for M-440
- Hopper material
- AISI 316L
- Feed method
- Double-wall pipe,valve-regulated
- Discharge method
- Gravity / Recirculation
- Mounting type
- Vertical
- Seal type
- Single mechanical seal
- Connections
- Clamp connections
- Control panel integration
- Available
- Seal type
- Single mechanical,double flushed,double pressurised
- Hopper angle
- 40º for M-226,50º for M-440
- Internal surface finish
- Bright polish Ra ≤ 0.5 μm
- Connection types
- DIN,SMS
- Vibrator for hopper
- Available
- Automated valve control
- Pneumatically actuated
- Level sensors
- Hygienic solids lower and upper level
- ATEX version
- Available
