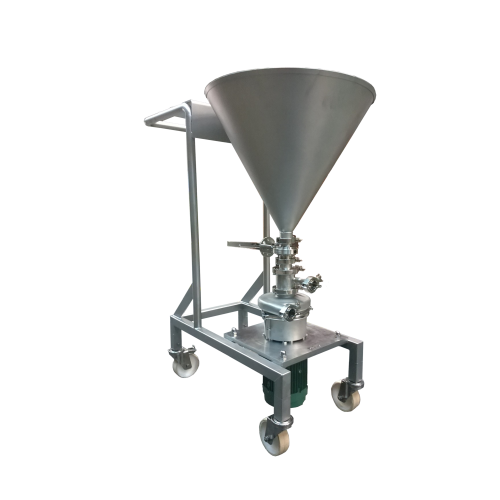

Powder and liquid mixing system for food and life sciences

Achieve rapid and homogeneous dissolution of large quantities of powders into liquids, optimizing your production process with streamlined integration and minimal maintenance.

Mixes and Disperses Powders into Liquids

The POLYMEL® blending system from Equans – Pierre Guerin is engineered to streamline the blending of powders into liquids for the food, life sciences, and personal care industries. It features a mixing chamber with a centrifugal pump casing and impeller, facilitating thorough mixing via a vortex-induced pressure drop. This allows for efficient incorporation of powders from a horizontally mounted hopper. Designed for continuous or recycled batch processes, it can handle up to 9,500 Kg/h, making it ideal for applications such as dissolving sugar solutions, reconstituting milk products, and combining active pharmaceutical ingredients. Its robust design ensures easy integration into existing lines with minimal maintenance due to its compact and reliable construction. Enhanced by its low manpower requirements and improved working conditions, the POLYMEL® system offers smooth operation with a focus on user efficiency and product quality.

Benefits

  • Ensures rapid and uniform dissolution of powders, enhancing product quality and consistency.
  • Minimizes product loss, optimizing material usage and reducing waste.
  • Integrates seamlessly with existing process lines, streamlining operations and minimizing setup time.
  • Requires low maintenance due to few moving parts, decreasing operational downtime and maintenance costs.
  • Enhances worker efficiency by reducing manual intervention and improving operational safety.

General


Applications
Brine,Base components for personal care products,Milk derived products,Pet food coatings,Sugar solutions,Active pharmaceutical components,Food sauces
End products
Liquid hand soap,Jam,Sweetened condensed milk,Infant formula,Preserved vegetables,Kibble,Processed cheese,Tablets
Steps before
Powder handling,Liquid preparation,Ingredient selection
Steps after
Product transfer,Recycling in buffer vessel,Homogenization,Quality control,Storage
Input ingredients
large quantities of powder,liquids,milk derived products,sugar,stabilizers,salts,active pharmaceutical components,base components for personal care products
Output ingredients
dissolved milk derived products,sugar solutions,stable mixtures,dissolved salts,prepared food sauces,brine,butter mixtures,pet food coating products,dissolved pharmaceutical components,mixed personal care products
Market info
Pierre Guerin is renowned for manufacturing high-quality, engineered-to-order equipment, particularly for the pharmaceutical and biotechnology industries, specializing in vessels, process systems, and complete turnkey solutions with a strong emphasis on innovation and customer satisfaction.

Technical Specifications


Powder dissolution capacity
Up to 9 500 Kg/h
Process Type
Continuous / Recycled in a buffer vessel
Mixing method
Centrifugal pump casing with impeller and hopper
Turbulence inducement
Impeller action
Liquid entry
Tangentially in the diffuser pipe
Pressure drop mechanism
Vortex in the impeller area
Use cases
Reconstitution of milk products,dissolution of sugar,incorporation of stabilizers,salts

Operating Characteristics


Working Mechanism
Centrifugal pump with impeller
Integrated Steps
Powder dissolution and dispersion
Batch vs. Continuous Operation
Continuous
Powder Suction Method
Pressure drop and vortex-induced suction
Automation Level
Manual / PLC
Mixing Type
Vortex mixing
Cleaning Method
CIP compatible

Physical Characteristics


Compact footprint
Yes
Discharge method
Direct transfer or recycled in a buffer vessel
Mixing chamber type
Centrifugal pump casing
Hopper mounting
Horizontally mounted
Powder feed system
Sucking-up from hopper
Footprint
Compact design

Custom Options


Integration possibilities
Easy integration in existing process line
Compact footprint
Compact design
Control panel type
Compatible with existing control systems
