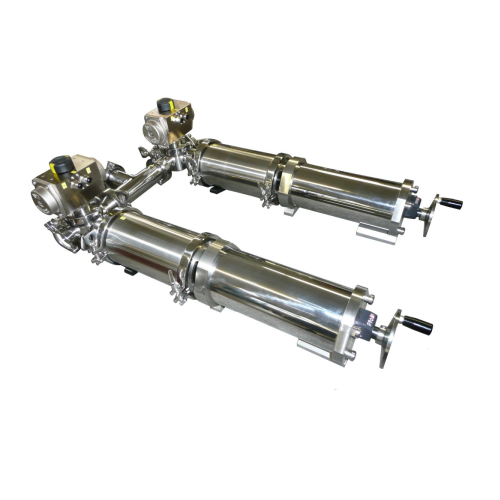

Pneumatic dosing syringes for precise liquid dispensing

Achieve precise and reliable liquid dosing with pneumatic syringes, ensuring consistent product quality across various filling applications while streamlining integration into automated production lines.

Dispenses and Fills Liquids Accurately

The Pneumatic Dosing Syringes from Tenco are expertly crafted for precise and controlled liquid dispensing across various industrial applications. Constructed entirely from AISI 316 stainless steel, these syringes ensure excellent corrosion resistance and durability, making them ideal for handling juice concentrates, essential oil serums, tomato sauces, detergent gels, and cough syrups.

Utilizing a single pneumatic actuator, these syringes provide consistent dosing accuracy of +/- 1% thanks to a handwheel with a graduated scale for easy dosage adjustments. Designed for seamless integration, the syringes can be part of automated filling and packaging lines or used with thermoforming and thermosealing machines. The pneumatic operation facilitates reliable performance while allowing easy disassembly for cleaning and maintenance, ensuring minimal downtime.

These syringes cater to the specific needs of beverage producers, cosmetic manufacturers, food industry, chemical, and pharmaceutical manufacturers, and can be customized to match each customer’s specifications, including positioning on mobile trolleys.

Benefits

  • Ensures precise liquid dosing with a ±1% accuracy, minimizing product waste.
  • Streamlines integration into existing production lines, enhancing workflow efficiency.
  • Simplifies maintenance with tool-free disassembly, reducing equipment downtime.
  • Adaptable to various industrial applications, broadening operational flexibility.
  • Constructed from AISI 316 stainless steel for robust corrosion resistance.

General


Applications
Food,Beverage,Cosmetic,Chemical,Pharmaceutical
End products
Cough syrups,Detergent gels,Juice concentrates,Essential oil serums,Tomato sauce
Steps before
Product Aspiration,Ingredient Mixing
Steps after
Automatic Production,Packaging,Thermoforming,Thermosealing
Input ingredients
liquids,compressed air
Output ingredients
glass bottles,jars,vials,plastic bottles,jerrycans,PET bottles,PET trays,PET jars,flexible bags without spout,flexible bags with already welded spout,syringes,aluminum trays,metal cans,tinplate cans,ceramic bottles,ceramic jars,paper and cardboard bottles,trays,frugalbottle
Market info

Technical Specifications


Accuracy
±1%
Power Supply
Pneumatics
Dosage Range
0-40 cc,2 to 100 cc,5 to 250 cc,5 to 380 cc,20 to 680 cc,50 to 1300 cc,50 to 1500 cc,200 to 5,000 ml
Material
AISI 316 Stainless Steel
Automation
Manual / Auto integration with lines
Positioning
Free (to be installed on lines or trolleys)
Operating Mechanism
Compressed Air

Operating Characteristics


Working mechanism
Pneumatic actuator
Integrated steps
Simultaneous multi-head dosing
Automation level
Manual / Integrated in automatic lines
Batch vs. continuous operation
Batch
Cleaning method
Easy disassembly for cleaning
Dosing accuracy
±1%
Positioning
Free (Installed on lines or trolleys)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Control panel type
Intuitive controls
Material Construction
AISI 316 Stainless Steel
Compact Design
Integrated into automated packaging lines
Machine Footprint
Free positioning on lines or trolleys
Customization
Customizable according to customer specifications
Disassembly Ease
Tool-free disassembly for cleaning

Custom Options


Control integration
PLC / Pneumatic control
Customization of dosing units
Single or multi-head units
Integration possibilities
Automated packaging lines,thermoforming,thermosealing machines
Discharge customization
Handwheel for dosage adjustment
Portability
Base/trolley on wheels
Material construction
AISI 316 stainless steel
Assembly features
Tool-free disassembly for cleaning
Positioning flexibility
Free (lines or trolleys)
