Pneumatic conveying systems diverter valve
Effortlessly manage bulk material flow with precision, ensuring seamless transitioning between pneumatic dense and dilute phase conveying systems while minimizing impact forces and maintaining operational continuity.

Diverts and Directs Bulk Material Flow

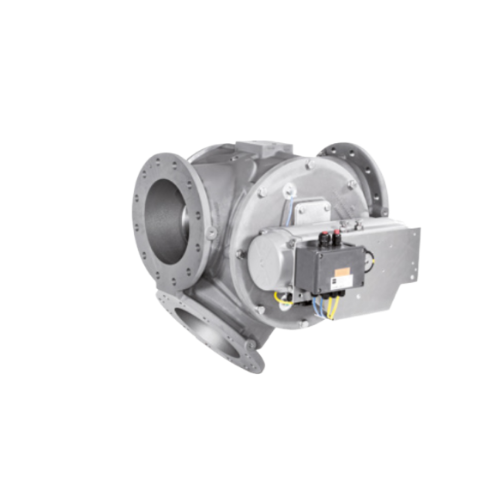

The VST Diverter Valve from Zeppelin Systems is a precision-engineered solution designed for pneumatic dense phase and dilute phase conveying systems. Its unique feature is a single-channel design with a 45° deflection angle, using a patented geometric shaping of the internal rotor, which facilitates impact-free, zero-dead-space transitions. This makes it ideal for diverting, distributing, and collecting materials such as tire compounds, flour, PVC granules, and chemical powders across the rubber, food, plastics, and chemical industries. Available in nine sizes (100–350), the valve boasts a comprehensive sealing concept to allow static and inflatable sealing, ensuring reliability in harsh environments up to 120°C and pressures from -1.0 to 10 bar (g). Constructed from high-quality cast aluminum with stainless steel inserts, it offers robust performance with minimal maintenance. The valve is equipped with a clearly visible optical position indicator and proximity sensors for direct monitoring, ensuring seamless integration into automated operations. Additional certifications like ATEX conformity and EC type examination validate its compliance for industrial applications.
Benefits
- Ensures seamless material flow with impact-free transitions, minimizing wear and tear in conveying systems.
- Enhances operational safety and reduces maintenance needs with robust, weatherproof construction.
- Offers flexible integration with reversible actuator options for versatile installation.
- Maintains consistent performance in high-pressure and high-temperature environments.
- Provides real-time monitoring for precise flow control, reducing material waste and process inefficiencies.
- Applications
- Aviation,Food industry,Chemical industry,Industrial service,Plastics,Rubber and tire industry,Process components
- End products
- Polyethylene pellets,Epoxy resins,Chemical powders,Dough mixes,Tire compounds,Pvc granules,Flour,Industrial machinery components,Jet engine parts
- Steps before
- Material conveying,Bulk material transport,Pre-mixing
- Steps after
- Bulk material distribution,Material collection,Post-processing
- Input ingredients
- bulk material,pneumatic dense phase conveying systems,dilute phase conveying systems
- Output ingredients
- bulk material flow,distributed material,collected material
- Market info
- Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.
- Deflection angle
- 45°
- Operating pressure
- -1.0 to 6.0 bar (g)
- Mechanical design pressure
- -1.0 to 10 bar (g)
- Temperature resistance
- -20 to +120°C
- Flange joints
- DIN 2501 PN10 FF or ANSI 150 lbs FF
- Size availability
- 100–350
- Working mechanism
- Single-channel,45° deflection angle
- Automation level
- Direct monitoring via proximity sensors
- Changeover time
- Easy actuator side change
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Low maintenance design
- Energy efficiency
- Impact-free,zero-dead-space transitions
- Abrasion resistance
- Yes
- Corrosive resistance (e.g. acids)
- Optional high-quality stainless steel inserts
- Cleanability
- Static and inflatable sealing options
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- ATEX certification
- Yes
- CE marking
- Yes
- EC type examination certificate
- Yes
- Machinery Directive
- Yes
- Deflection angle
- 45°
- Size range
- 100–350
- Material
- High-quality cast aluminum,stainless steel pipe inserts
- Flange standard
- DIN 2501 PN10 FF or ANSI 150 lbs FF
- Operating pressure
- -1.0 bar to 6.0 bar (g)
- Temperature resistance
- -20 to +120°C
- Design pressure
- -1.0 to 10 bar (g)
- Sealing options
- Static and inflatable sealing
- Footprint
- Not specified
- Deflection angle
- 45°
- Size Options
- 100–350
- Conveying direction
- Any
- Sealing Options
- Static / Inflatable
- Housing Material
- High-quality cast aluminum
- Pipe Inserts
- Stainless Steel
- Optical Position Indicator
- Yes
- Integration Options
- Direct Inquiry
- Operational Temperature
- -20 to +120°C
- Actuator Changeability
- Left/Right Side
